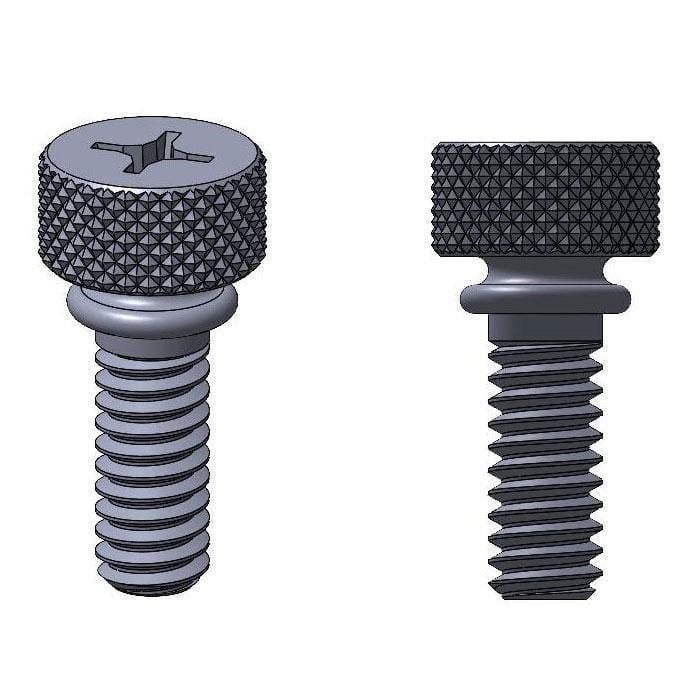

Washer Face Thumb Inch


Download PDF

Loading Parts

Drive
Drive Description
PH Cross Recess
SL Slotted
General
Thread A
Head Dia.
+.020
-.000
B
Head Height
-.015
C
Length
±.015
D
Thread Length
±.010
4-40 3/8 3/16 5/8 5/16
11/16 3/8
3/4 7/16
6-32 3/8 3/16 11/16 3/8
3/4 7/16
13/16 1/2
8-32 7/16 3/16 11/16 3/8
13/16 1/2
15/16 5/8
10-32 7/16 3/16 11/16 3/8
13/16 1/2
15/16 5/8
1/4-20 1/2 1/4 3/4 3/8
7/8 1/2
1 5/8
1-1/8 3/4
