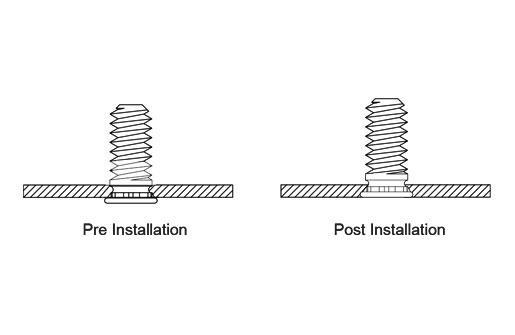

• 2D drawing of SF High-Strength, Large Head self-clinching studs designed for high strength and large head for secure fastening.

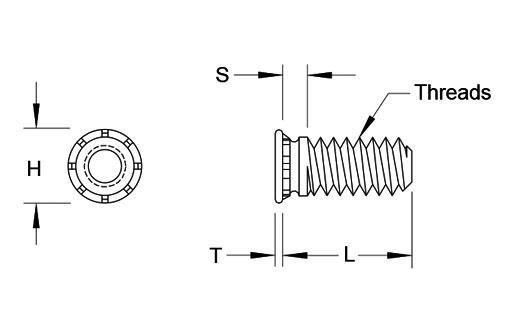

  • 2D drawing of SF High-Strength, Large Head self-clinching studs designed for high strength and large head for secure fastening.

SF High-Strength, Large Head Self-Clinching Studs Inch


Download PDF

Loading Parts

ThreadThread CodeSheet Thickness MINHole Size in Sheet +.005/-.000H ±.01S MAXT MAXHole in Attached Point MAXDist. Hole C/L to Edge MIN
10 - 321032.040.190.357.102.048.280.360
1/4 - 100420.040.250.462.118.060.340.470
5/16 - 180518.060.312.586.133.083.402.560
(L) Length ±.015
.500.7501.001.251.501.752.00
