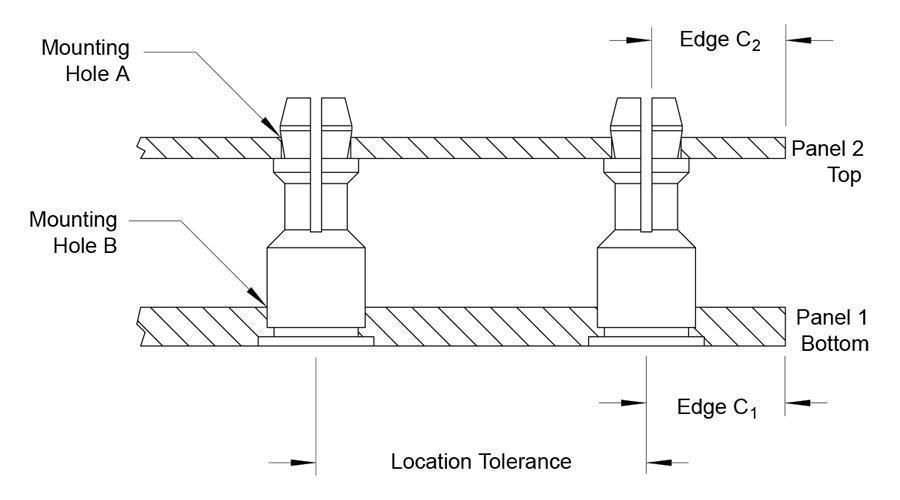

TH Self-Clinching, Spring-Top

Metric

Also Available in Inch
Download PDF
Part Desc. LengthMaterialFinish
General

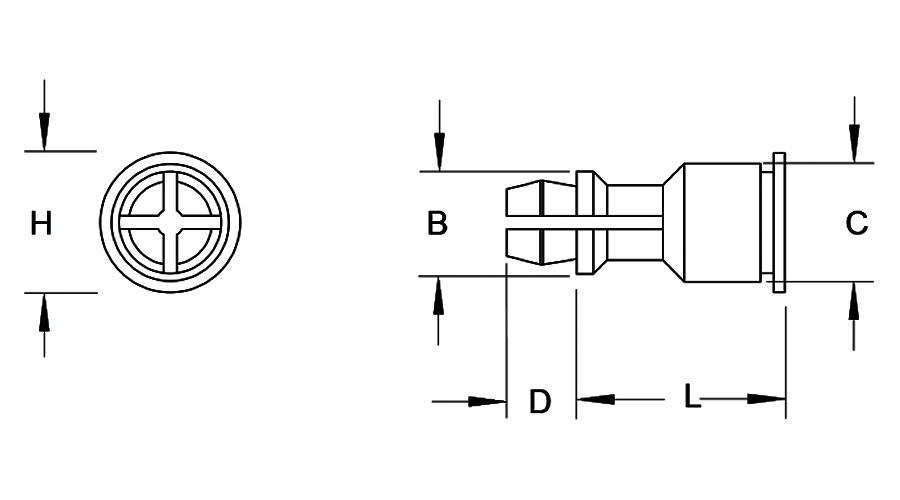

B ±0.13 C MAX D ±0.13 H ±0.13
4.78 5.39 3.58 6.35
Length
(L) Length (mm) ±0.13
8 10 12 14 16 18 20 22 25
