Truss Head

Inch


Download PDF
General

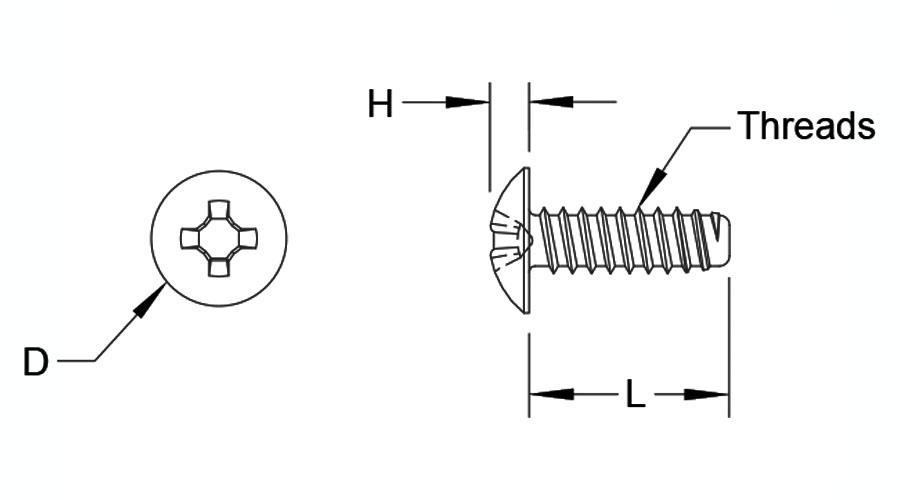

Thread Thread
Code
H
Height
D
Head Dimeter
Drive Size
Cross Recess
2 - 32 #2 .053 / .044 .194 / .180 1
4 - 24 #4 .069 / .059 .257 / .241 1
6 - 20 #6 .086 / .074 .321 / .303 2
8 - 18 #8 .102 / .088 .384 / .364 2
10 - 16 #10 .118 / .103 .448 / .425 2
1/4 - 14 1/4 .150 / .133 .573 / .546 3
Length
Length L
(Length Code)
±.005
3/16 .187 / .167
1/4 .250 / .230
5/16 .313 / .293
3/8 .375 / .355
7/16 .438 / .418
1/2 .500 / .480
9/16 .563 / .533
5/8 .625 / .595
3/4 .750 / .720
7/8 .875 / .845
1 1.000 / .970
1 - 1/4 1.250 / 1.190
1 - 3/8 1.375 / 1.315
1 - 1/2 1.500 / 1.440
1 - 5/8 1.625 / 1.565
1 - 3/4 1.750 / 1.690
2 2.000 / 1.940
