General

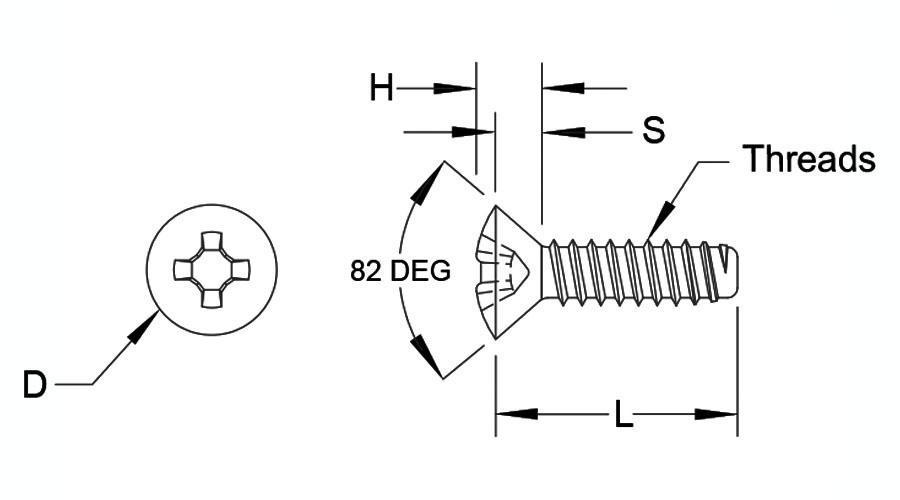

| Thread | H Height |
D Head Diameter |
S Head Height REF |
Drive Sizes Cross Recess * |
Drive Sizes 6 - Lobe |
|---|---|---|---|---|---|
| M2.2 x 0.8 | 1.1 | 3.8 / 3.5 | 0.5 | 0 | T6 |
| M2.9 x 1 | 1.7 | 5.5 / 5.2 | 0.7 | 1 | T10 |
| M3.5 x 1.3 | 2.35 | 7.3 / 6.9 | 0.8 | 2 | T15 |
| M4.2 x 1.4 | 2.6 | 8.4 / 8.0 | 1 | 2 | T20 |
| M4.8 x 1.6 | 2.8 | 9.3 / 8.9 | 1.2 | 2 | T25 |
| M5.5 x 1.8 | 3 | 10.3 / 9.9 | 1.3 | 3 | T25 |
| M6.3 x 1.8 | 3.15 | 11.3 / 10.9 | 1.4 | 3 | T30 |
| M8 x 2.1 | 4.65 | 15.8 / 15.4 | 2 | 4 | T40 |
| M9 x 2.1 | 5.25 | 18.3 / 17.8 | 2.3 | 4 | T50 |
Length
| Length | L (Length Code) ±0.13 |
|---|---|
| 4.5 | 5.5 / 3.7 |
| 6.5 | 7.3 / 5.7 |
| 10 | 10.3 / 8.7 |
| 13 | 13.8 / 12.2 |
| 16 | 16.8 / 15.2 |
| 19 | 19.8 / 18.2 |
| 22 | 22.8 / 21.2 |
| 25 | 25.8 / 24.2 |
| 33 | 33.3 / 30.7 |
| 38 | 39.3 / 36.7 |
| 45 | 46.3 / 43.7 |
| 50 | 51.3 / 48.7 |
