Inch

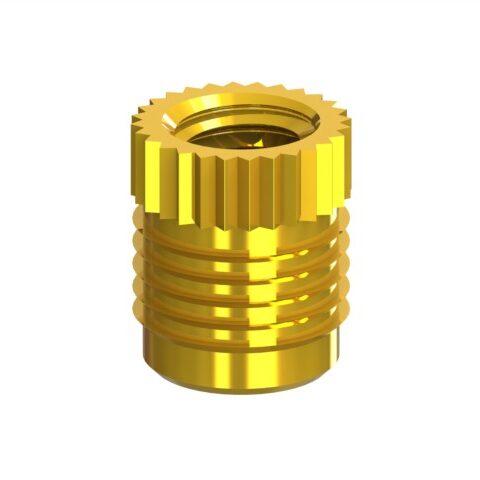

PFZ Press-in Fin Inserts

This product is also available in Metric

Press-in Fin Insert Features

  • Simple press–in installation for most thermoplastics.
  • High pull–out resistance.
  • Self–aligning design.
  • Available in a wide variety of thread sizes stud lengths.
Download PDF

Can't find what you're looking for or need more information?

Quote Request

Part Desc. HeadedThreadInsert LengthMaterial
General

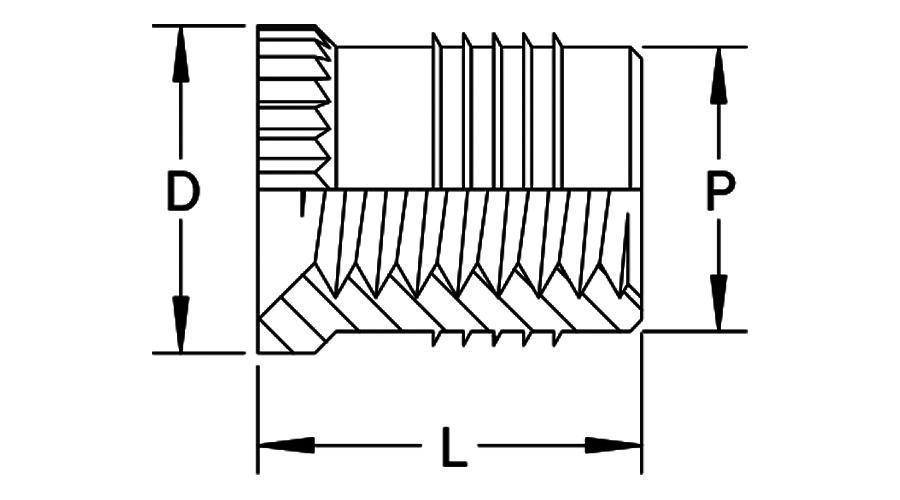

Insert Thread Insert Thread Code L Insert Length Insert Length Code Boss A Head Thickness C Head Diameter D Insert Diameter P Pilot Diameter Number of Fins
B Hole Dia. +.004 -.000 W Wall Thickness Min.
2-56 256 .157 157 .126 .063 .018 .189 .147 .123 2
4-40 440 .187 187 .157 .079 .023 .217 .178 .154 3
6-32 632 .250 250 .189 .094 .029 .250 .209 .185 4
8-32 832 .312 312 .220 .110 .035 .281 .240 .218 5
10-24 1024 .375 375 .252 .126 .042 .312 .274 .248 5
10-32 1032 .375 375 .252 .126 .042 .312 .274 .248 5
1/4-20 2520 .500 500 .315 .157 .052 .375 .337 .310 7
1/4-28 2528 .500 500 .315 .157 .052 .375 .337 .310 7
5/16-18 3118 .500 500 .378 .189 .052 .433 .400 .375 7
5/16-24 3124 .500 500 .378 .189 .052 .433 .400 .375 7

(1) All dimensions are in inches and reference unless toleranced.
