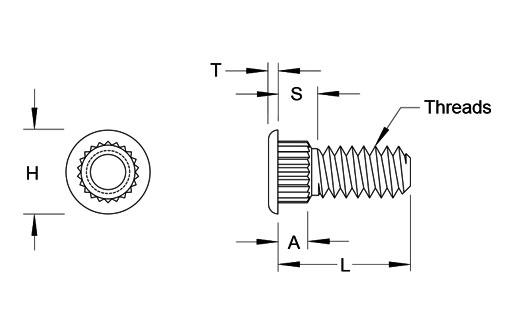

• 2D drawing of SG Broaching self-clinching studs designed for broaching installation in sheet metals.

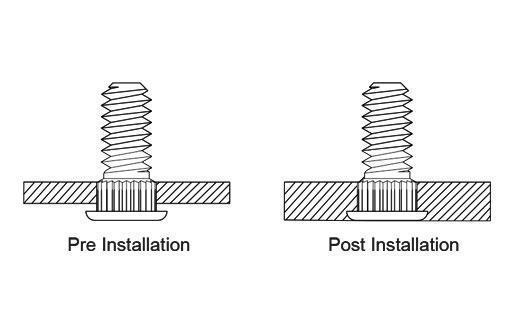

  • 2D drawing of SG Broaching self-clinching studs designed for broaching installation in sheet metals.

SG Broaching Self-Clinching Studs Inch


Download PDF

Loading Parts

ThreadThread CodeA MAXSheet Thickness MINHole Size in Sheet +.003/-.000Hole in Attached Parts MAXH ±.010S MAXT ±.005Dist. Hole C/L to Edge MIND Anvil Hole +.003/-000
4 - 40440.065.060.120.145.180.09.020.15.113
6 - 32632.065.060.140.170.200.09.020.19.140
8 - 32832.065.060.166.195.225.09.020.20.166
10 - 321032.065.060.189.220.250.09.020.20.191
(L) Length ±.015
.250.312.375.500.625.750
