Inch

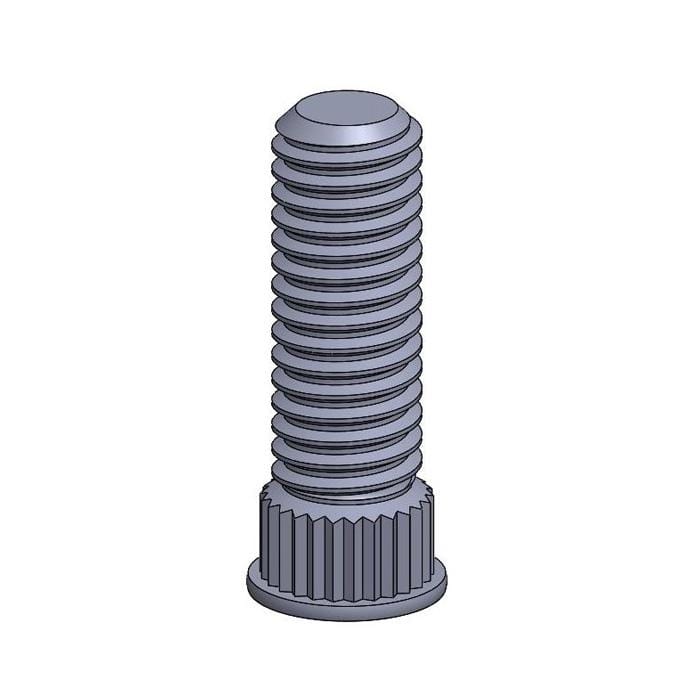

SG Broaching

This product is also available in Metric
Part Desc.MaterialThread In InchesLengthFinish
ThreadThread CodeA MAXSheet Thickness MINHole Size in Sheet +.003/-.000Hole in Attached Parts MAXH ±.010S MAXT ±.005Dist. Hole C/L to Edge MIND Anvil Hole +.003/-000
4 - 40440.065.060.120.145.180.09.020.15.113
6 - 32632.065.060.140.170.200.09.020.19.140
8 - 32832.065.060.166.195.225.09.020.20.166
10 - 321032.065.060.189.220.250.09.020.20.191
(L) Length ±.015
.250.312.375.500.625.750
