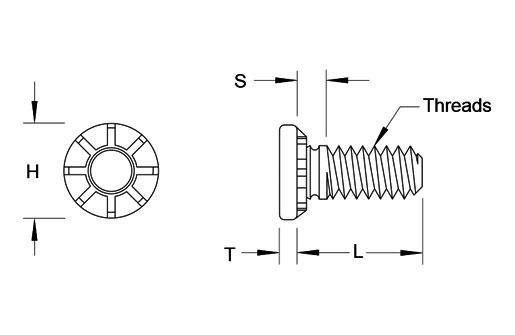

  • sd dimension dwg

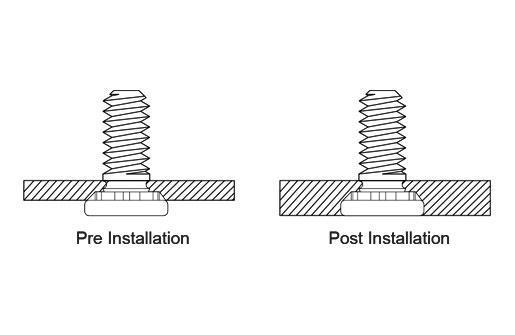

  • sd installed
  • 2D drawing of SD High-Strength self-clinching studs offering enhanced strength for heavy-duty applications.
  • sd dimension dwg
  • sd installed

SD High-Strength Self-Clinching Studs Inch


Download PDF

Loading Parts

ThreadThread CodeSheet Thickness MINHole Size in Sheet +.005/-.000Hole in Attached Parts MAXH ±.01S MAXT MAXDist. Hole C/L to Edge MIN
10 - 321032.050.190.250.300.105.040.415
1/4 - 200420.060.250.312.380.125.050.460
5/16 - 180518.075.312.375.480.140.070.500
3/8 - 160616.090.375.437.580.155.085.530
(L) Length ±.015
.500.7501.001.251.501.752.00
