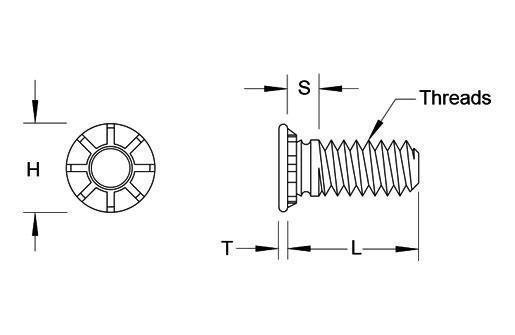

| Thread | Thread Code | Sheet Thickness MIN | Hole Size in Sheet +0.08/-0.00 | Hole in Attached Parts MAX | H ±0.4 | S MAX | T MAX | Dist. Hole C/L to Edge MIN |
|---|---|---|---|---|---|---|---|---|
| M3 x 0.5 | M3 | 0.51 | 3 | 3.6 | 4.5 | 1.8 | .064 | 5.6 |
| M4 x 0.7 | M4 | 0.51 | 4 | 4.6 | 5.8 | 1.8 | .064 | 7.2 |
| M5 x 0.8 | M5 | 0.51 | 5 | 5.6 | 6.4 | 2.3 | .064 | 7.2 |
| (L) Length (mm) ±0.4 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 8 | 10 | 12 | 15 | 18 | 20 | 25 | 30 | 35 |
