TGU Surface-Mount Spring-Top Standoffs Inch

  • Standoffs installed on p.c. boards at the same time and method as other surface-mount technology (SMT) components. Their spring action holds panels in place without threaded hardware.
  • Reduce secondary handling of p.c. boards that may lead to potential damage.
  • Packaged on tape and reel consistent with standard automated SMT installation equipment.
  • Custom lengths available by request.
Download PDF

Loading Parts

General

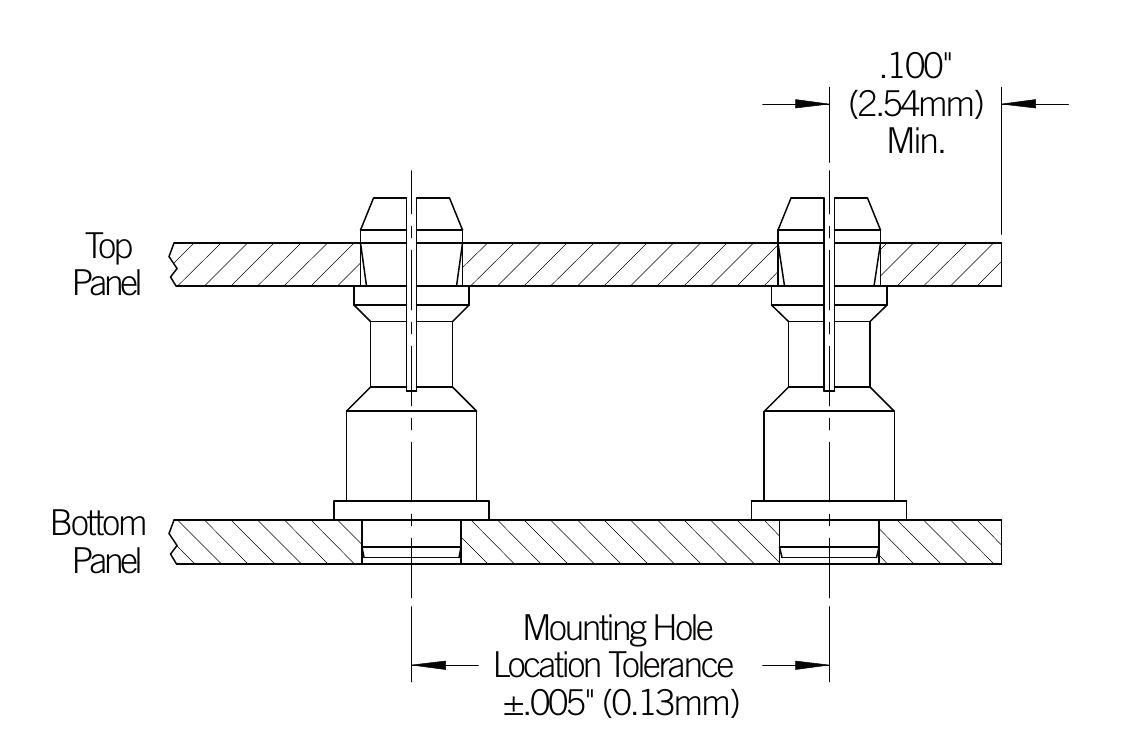

Top PanelBottom Panel
ThicknessMaterialHole 1 DiameterMinimum ThicknessMaterialHole Diameter
.040-.070Any.156-.1590.06P.C. Board.166-.169

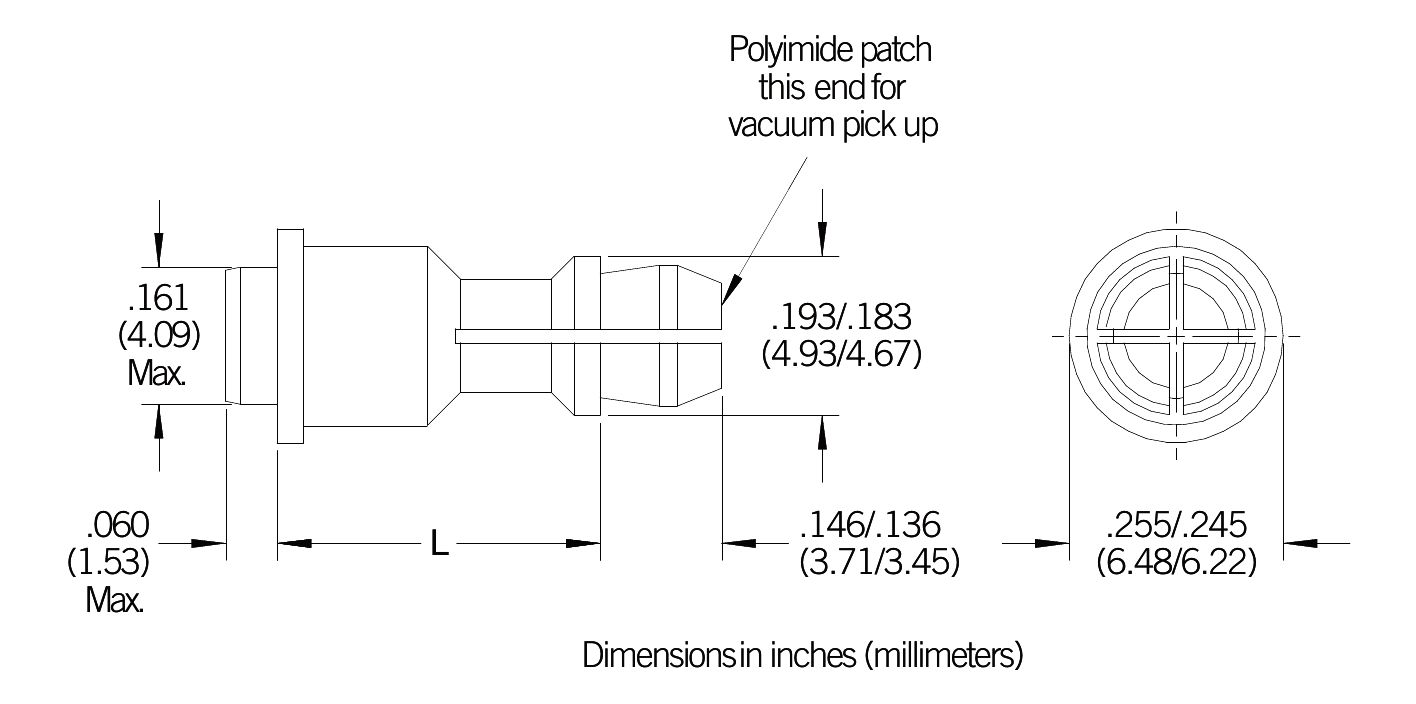

Length

L (Length) ± .005
.250.312.375

Reel Data

Length
.250.312.375
Parts per Reel/Pitch
280/.630250/.630220/.630

Material and Finish

Carbon Steel/Electroplated Matte Tin per ASTM B545, Class A with Clear Preservative Coating, Annealed.

Installation

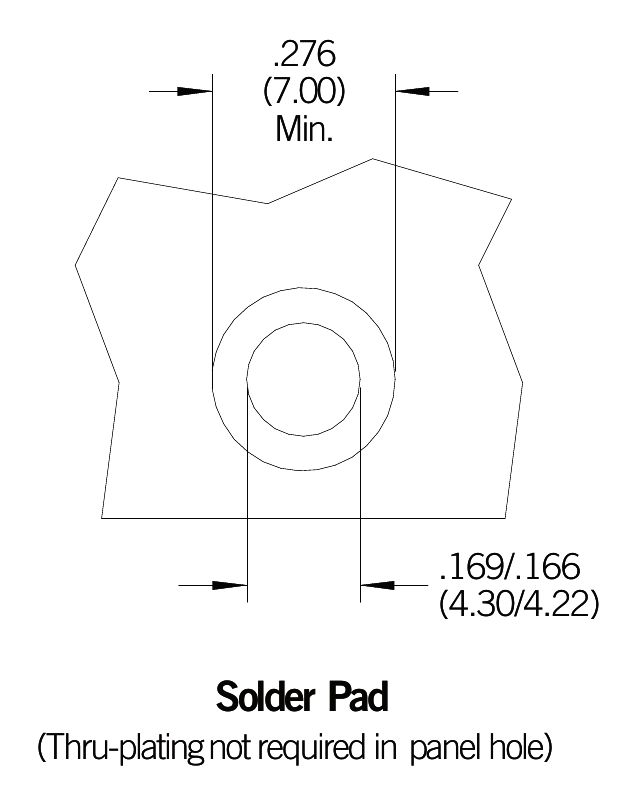

Apply solder paste to p.c. board pad. Place fastener by gripping end with polyimide patch. Solder fastener in place using surface-mount technology (SMT) practices.

Performance

Bottom PanelTop Panel
Test Sheet MaterialPush-outMax. Snap-on Force
".062" (1.57mm) FR-4"113 lbs (500 N)20 lbs (89 N)
