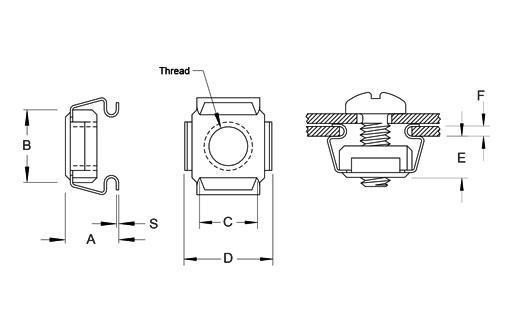

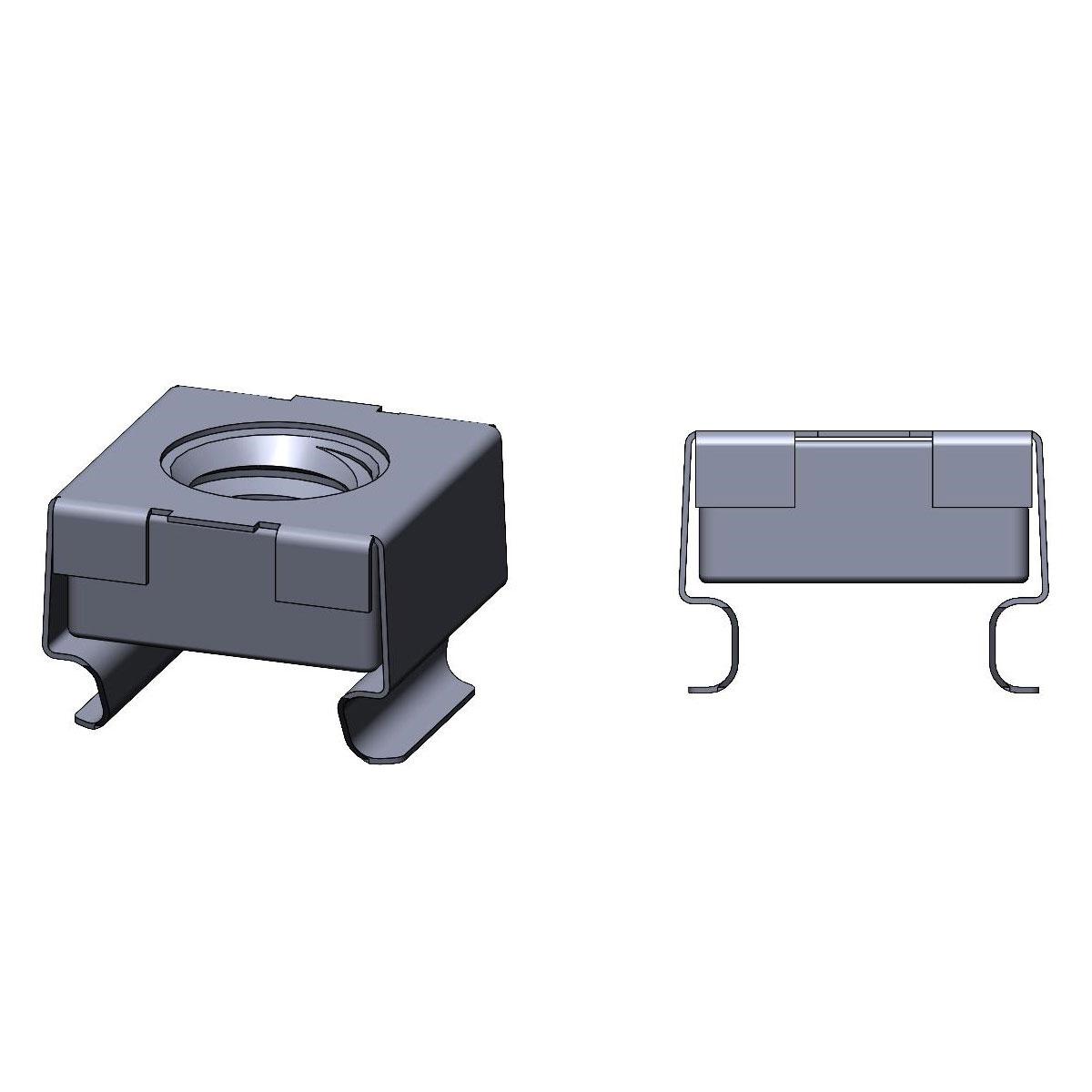

Dimensions
| Thread | F Sheet Thickness |
A ±0.5 |
B ±0.5 |
C ±0.5 |
D -0.6 |
E ±0.5 |
S | Hole | |
|---|---|---|---|---|---|---|---|---|---|
| G ±0.1 |
Hole No. | ||||||||
| M3 x 0.5 | 0.3 – 0.9 | 5.2 | 8.8 | 4.8 | 9.3 | 3.6 | 0.3 | 5.3 | 1 |
| 1 – 1.6 | 5.9 | 8.8 | 4.8 | 9.3 | 3.6 | 0.3 | 5.3 | ||
| M4 x 0.7 | 0.3 – 0.9 | 5.2 | 8.8 | 4.8 | 9.3 | 3.6 | 0.3 | 5.3 | 1 |
| 1 – 1.6 | 5.9 | 8.8 | 4.8 | 9.3 | 3.6 | 0.3 | 5.3 | ||
| 0.3 – 1.1 | 8.5 | 11.4 | 7.2 | 12 | 6 | 0.45 | 8.3 | 2 | |
| 1.2 – 1.6 | 9 | 11.4 | 7.2 | 12 | 6 | 0.45 | 8.3 | ||
| 0.7 – 1.6 | 9 | 12 | 8 | 13.2 | 6.2 | 0.45 | 9.5 | 5 | |
| 1.7 – 1.6 | 10 | 12 | 8 | 13.2 | 6.2 | 0.45 | 9.5 | ||
| M5 x 0.8 | 0.3 – 1.1 | 8.5 | 11.4 | 7.2 | 12 | 6 | 0.45 | 8.3 | 2 |
| 1.2 – 1.6 | 9 | 11.4 | 7.2 | 12 | 6 | 0.45 | 8.3 | ||
| 0.7 – 1.6 | 9 | 12 | 8 | 13.2 | 6.2 | 0.45 | 9.5 | 5 | |
| 1.7 – 2.7 | 10 | 12 | 8 | 13.2 | 6.2 | 0.45 | 9.5 | ||
| M6 x 1 | 0.3 – 1.1 | 8.5 | 11.4 | 7.2 | 12 | 6 | 0.45 | 8.3 | 2 |
| 1.2 – 1.6 | 9 | 11.4 | 7.2 | 12 | 6 | 0.45 | 8.3 | ||
| 0.7 – 1.6 | 9 | 12 | 8 | 13.2 | 6.2 | 0.45 | 9.5 | 5 | |
| 1.7 – 2.7 | 10 | 12 | 8 | 13.2 | 6.2 | 0.45 | 9.5 | ||
| M8 x 1.25 | 1 – 1.7 | 10.4 | 15.5 | 10.6 | 16.4 | 7.8 | 0.50.5 | 12.3 | 3 |
| 1.8 – 3.2 | 12 | 15.5 | 10.6 | 16.4 | 7.8 | 0.5 | 12.3 | ||
| M10 x 1.75 | 1 – 1.7 | 10.4 | 15.5 | 10.6 | 16.4 | 7.8 | 0.5 | 12.3 | |
| 1.8 – 3.2 | 12 | 15.5 | 10.6 | 16.4 | 7.8 | 0.50.5 | 12.3 | ||
Material & Finish
| Material Code | Material Description | Finish Code | Finish Description |
|---|---|---|---|
| STL | Low Carbon Steel (STL) | Z-BLK | Zinc Black |
| Z | Zinc Clear | ||
| SS | Stainless Steel | PLN | Plain |
Contact a PENCOM Account Representative for other material & finish options.
