Name: SHZS Straight Hole Studded Inserts
Availability: InStock

SHZS Straight Hole Studded Inserts Metric Inserts for Plastic

Features

Rapid self–aligning installation using heat or ultrasonic.

Opposing helical knurls provide excellent pull-out and torque–out resistance.

Thin boss walls permit compact design.

Available in a wide variety of thread sizes, stud lengths and options.

Loading Parts

General

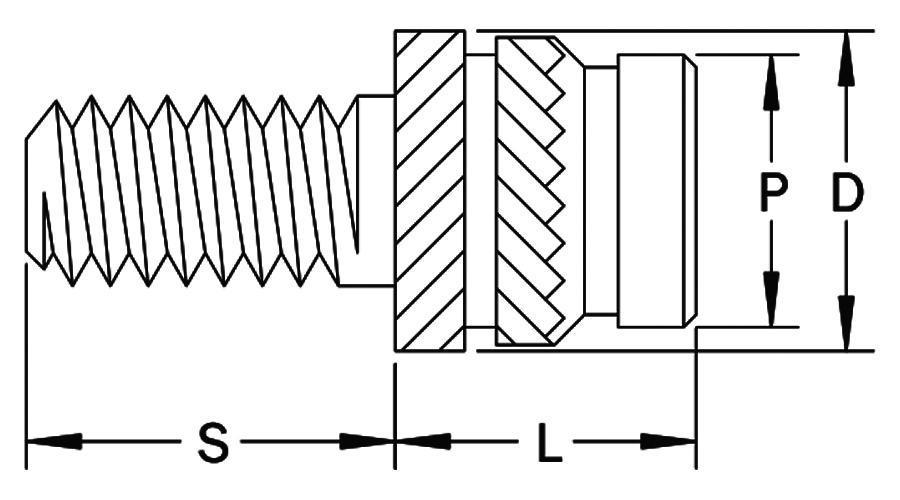

Insert Thread	Insert Thread Code	Boss		A Head Thickness	C Head Diameter	D Insert Diameter	P Pilot Diameter
Insert Thread	Insert Thread Code	B Hole Dia. +0.10 -0.00	W Wall Thickness Min.	A Head Thickness	C Head Diameter	D Insert Diameter	P Pilot Diameter
M2 x 0.4	M2	3.20	1.30	0.53	4.80	3.60	3.10
M2.5 x 0.45	M2.5	4.00	1.60	0.61	5.50	4.60	3.90
M3 x 0.5	M3	4.00	1.60	0.61	5.50	4.60	3.90
M3.5 x 0.6	M3.5	4.80	1.80	0.76	6.40	5.40	4.70
M4 x 0.7	M4	5.60	2.10	0.91	7.10	6.30	5.50
M5 x 0.8	M5	6.40	2.60	1.09	7.90	7.10	6.30
M6 x 1.0	M6	8.00	3.30	1.35	9.50	8.70	7.90
M8 x 1.25	M8	9.60	4.50	1.35	11.10	10.20	9.50
M10 x 1.5	M10	11.90	6.00	1.60	14.00	12.60	11.80
M12 x 1.75	M12	16.00	8.00	2.00	19.00	16.70	15.80

Insert Length

Insert Thread	L Insert Length	Insert Length Code
M2 x 0.4	2.50	2.50
	3.18	3.18
	4.00²	4.00
M2.5 x 0.45	3.56	3.56
M2.5 x 0.45	5.74²	5.74
M3 x 0.5	4.00	4.00
	4.32	4.32
	5.00	5.00
	5.21	5.21
	5.74²	5.74
M3.5 x 0.6	3.80	3.80
	5.00	5.00
	7.14²	7.14
M4 x 0.7	4.00	4.00
	4.70	4.70
	5.51	5.51
	5.74	5.74
	6.35	6.35
	8.15²	8.15
M5 x 0.8	5.80	5.80
	6.35	6.35
	9.50²	9.50
M6 x 1.0	6.35	6.35
	6.80	6.80
	7.90	7.90
	12.70²	12.70
M8 x 1.25	12.70²	12.70
M10 x 1.5	12.70²	12.70
M12 x 1.75	15.90²	15.90

Stud Length

Stud Thread	Stud Thread Code	D Insert Diameter	S – Stud Length
			5.00	6.00	8.00	10.00	12.00	14.00	16.00	18.00	20.00	25.00
			Stud Length Code
M2 x 0.4	M2	3.60	5.00	6.00	8.00	—	—	—	—	—	—	—
M2.5 x 0.45	M2.5	4.60	5.00	6.00	8.00	10.00	—	—	—	—	—	—
M3 x 0.5	M3	4.60	5.00	6.00	8.00	10.00	12.00	—	—	—	—	—
M3.5 x 0.6	M3.5	5.40	5.00	6.00	8.00	10.00	12.00	14.00	—	—	—	—
M4 x 0.7	M4	6.30	5.00	6.00	8.00	10.00	12.00	14.00	16.00	—	—	—
M5 x 0.8	M5	7.10	5.00	6.00	8.00	10.00	12.00	14.00	16.00	18.00	20.00	—
M6 x 1.00	M6	8.70	—	6.00	8.00	10.00	12.00	14.00	16.00	18.00	20.00	25.00
M8 x 1.25	M8	10.20	—	—	8.00	10.00	12.00	14.00	16.00	18.00	20.00	25.00
M10 x 1.5	M10	12.60	—	—	—	10.00	12.00	14.00	16.00	18.00	20.00	25.00
M12 x 1.75	M12	16.70	—	—	—	—	12.00	14.00	16.00	18.00	20.00	25.00

All dimensions are in millimeters and reference unless toleranced.
Custom stud lengths available by request.

Boss Design Recommendation

The SHZ Straight Hole Zert is designed to be installed into a straight molded hole with a 1° inclusive taper. The top of the hole should not be countersunk or counterbored as this will decrease the insert’s performance. The recommended hole size applies at the point reached by the bottom of the insert. Molded holes should be used wherever possible as drilled holes may result in diminished performance. Minimum boss wall thicknesses shown are for reference and may vary depending on the type of plastic.

Installation

The insert may be installed by pre-heating or ultrasonic vibration methods. When using heat, the insert should be hot enough to soften the plastic without melting it to avoid flash around the top. Ultrasonic vibration should be applied using low amplitude and the minimum amount of power necessary to satisfactorily soften the plastic. In both methods, avoid excessive pressure that would force an insert into a hole without allowing the plastic to properly soften and flow around the insert features.
