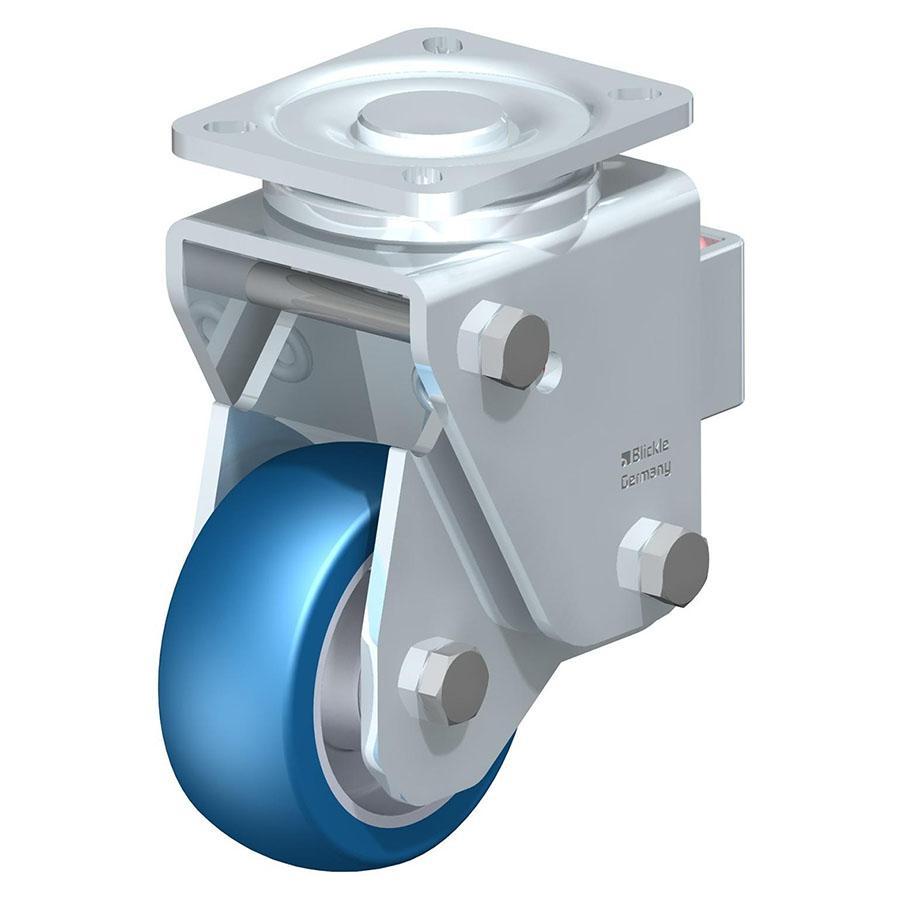

LHF – Pressed steel swivel caster

Brackets: Made of heavy pressed steel, with heavy fork and top plate, very strong bolted and secured central kingpin, double ball bearing in the swivel head, additionally reinforced by the integration of four specially shaped and hardened bearing seats resulting in a very high resistance to shock and impact loads. Rugged hinged plate construction with maintenance-free steel spring mechanism. Bolted wheel axle. Zinc-plated, blue-passivated, Cr6-free. Wheel: Made of high-quality polyurethanee-elastomer Blickle Besthane® Soft, very low rolling resistance, high dynamic load capacity. Colour: blue. Wheel centre/rim: Made of die-cast aluminium. Casted tread. Colour: silver grey. Chemical characteristics: High chemical resistance to many aggressive substances. Operating temperature: -25° C to +70° C, temporarily up to +90° C. At ambient temperatures above +40° C the load capacity is reduced. The indicated load capacity refers to applications without obstacles. Maintenance-free under standard conditions.

Part Desc.Weight (KG)Wheel Ø (D) [mm]Tire width (T2) [mm]Load capacity [kg]Bearing typeTotal height [mm]Plate size [mm]Bolt hole spacing [mm]Bolt hole Ø [mm]Offset swivel caster [mm]Stem Ø [mm]Stem Legnth [mm]Tread & tire hardnessWheel Center
