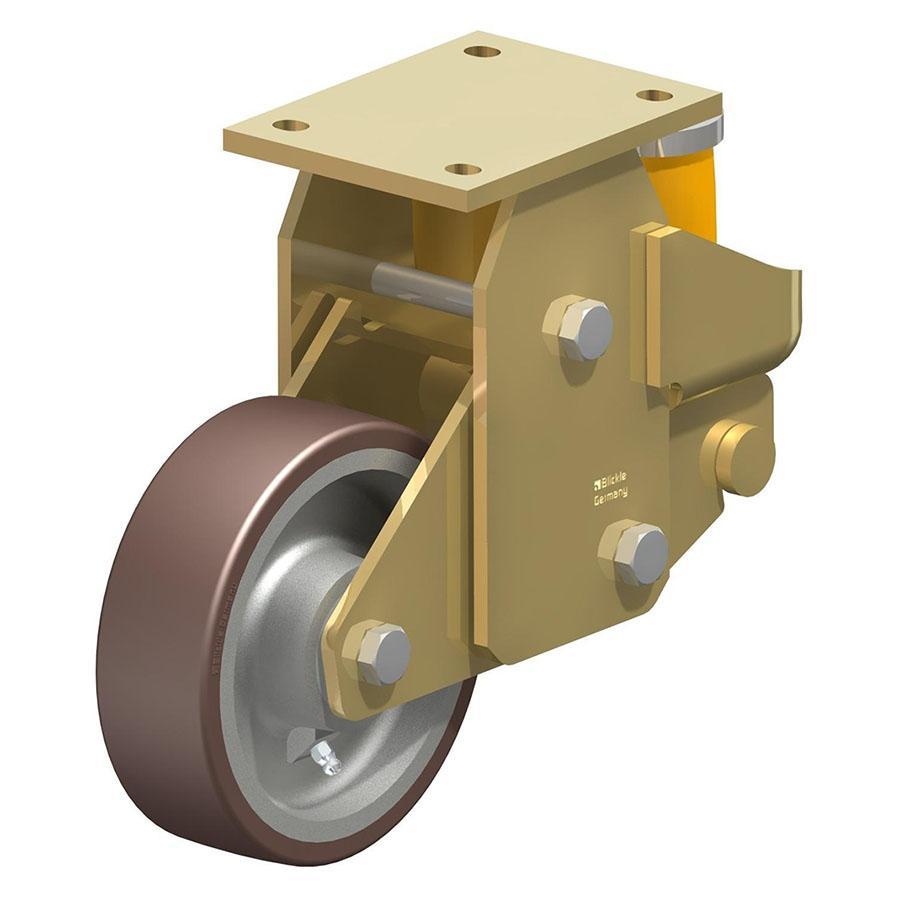

BSFE – Welded steel heavy duty fixed caster with polyurethane spring

Brackets: Particularly rugged welded steel construction. The spring characteristics are adjustable by a simple elastomer spring replacement, maintenance-free elastomer spring mechanism. Bolted wheel axle. Zinc-plated, yellow-passivated, Cr6-free. Wheel: Made of high-quality polyurethane-elastomer Blickle Besthane®, high dynamic load capacity. Colour: brown. Wheel centre/rim: Made of grey cast iron, lacquered. Casted tread. Colour: silver. Chemical characteristics: High chemical resistance to many aggressive substances. Operating temperature: -25° C to +70° C, temporarily up to +90° C. At ambient temperatures above +40° C the load capacity is reduced. The indicated load capacity refers to applications without obstacles. Maintenance-free under standard conditions.

Part Desc.Weight (KG)Wheel Ø (D) [mm]Tire width (T2) [mm]Load capacity [kg]Bearing typeTotal height [mm]Plate size [mm]Bolt hole spacing [mm]Bolt hole Ø [mm]Tread & tire hardnessWheel Center
