| Part Desc. | Weight (KG) | Wheel Ø(D) [mm] | Tire width (T2) [mm] | Load capacity [kg] | Bearing type | Total height [mm] | Plate size [mm] | Bolt hole spacing [mm] | Bolt hole Ø [mm] | Tread & tire hardness | Wheel Center |
|---|

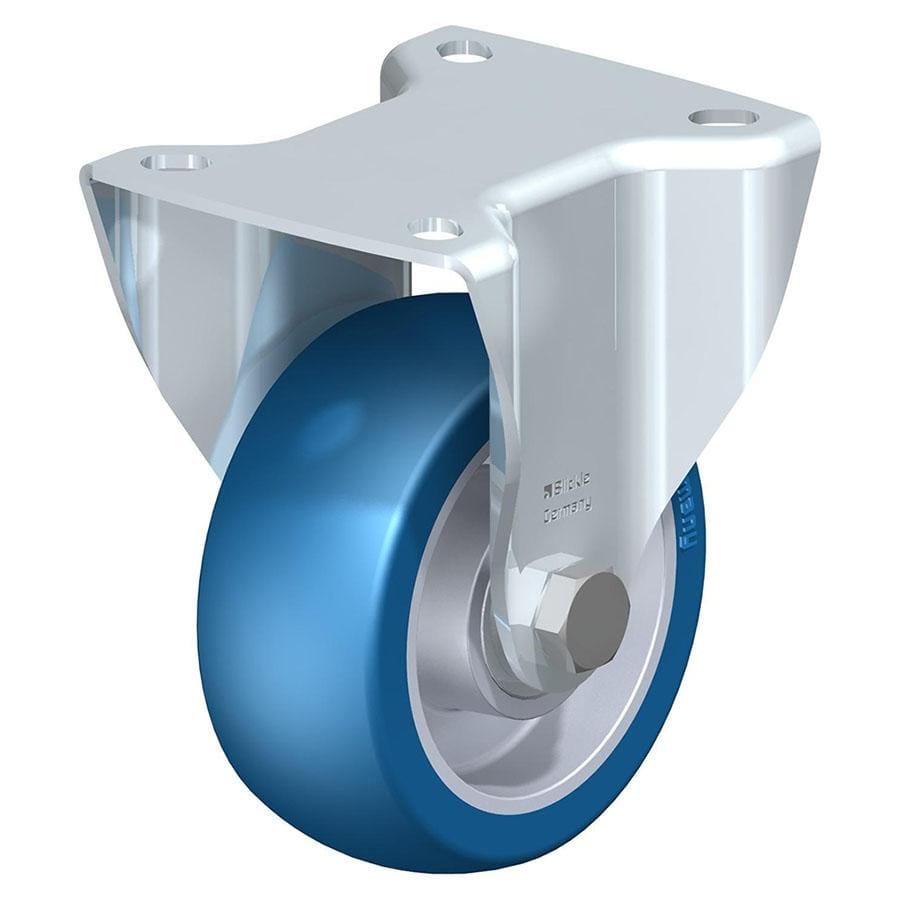

BK – Pressed steel fixed caster
All Casters
- Brackets: Made of pressed steel. Bolted wheel axle. Zinc-plated, blue-passivated, Cr6-free.
- Wheel: Made of high-quality polyurethane-elastomer Blickle Besthane® Soft, very low rolling resistance, high dynamic load capacity.
- Colour: blue.
- Wheel centre/rim: Made of die-cast aluminium. Casted tread.
- Colour: silver grey.
- Chemical characteristics: High chemical resistance to many aggressive substances. Operating temperature: -25° C to +70° C, temporarily up to +90° C. At ambient temperatures above +40° C the load capacity is reduced. The indicated load capacity refers to applications without obstacles. Maintenance-free under standard conditions.
