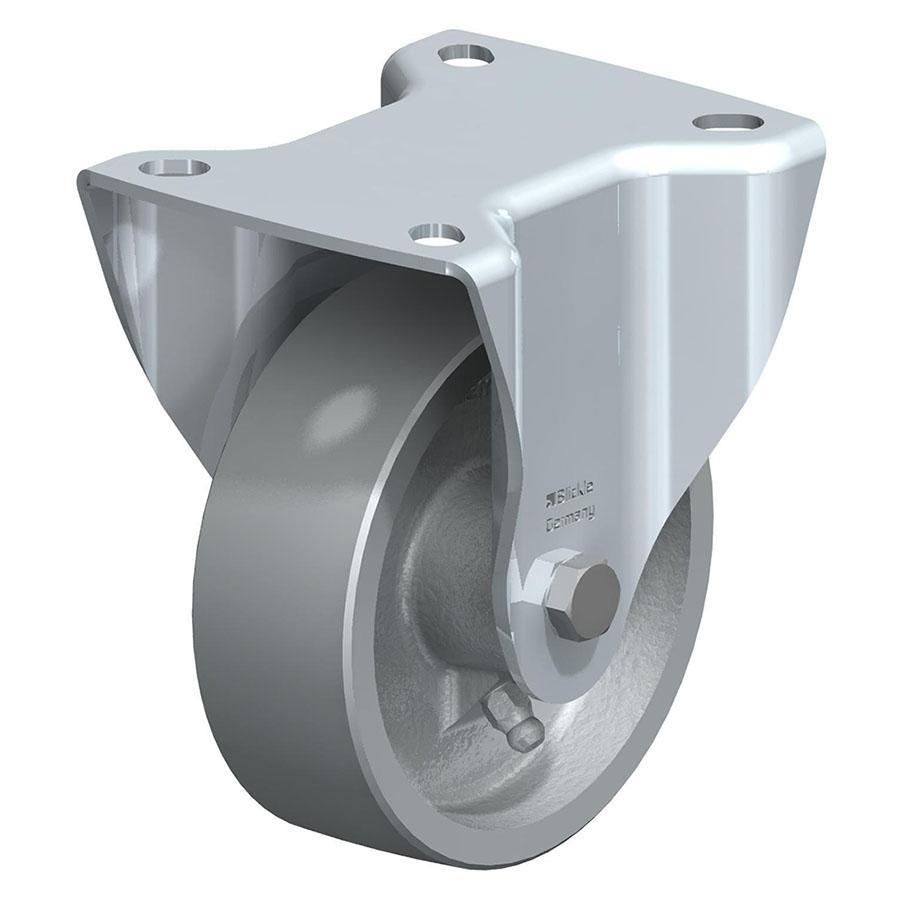

BIK – Heat-resistant pressed steel fixed caster with top plate fitting

Brackets: Made of pressed steel. Bolted wheel axle. Zinc-plated, blue-passivated, Cr6-free. Wheel: Made of grey cast iron. Colour: silver grey. Wheel centre/rim: – Colour: silver grey. Chemical characteristics: Oil-resistant. Operating temperature: -100° C to +600° C. A temperature-specific grease must be regularly applied. The relatively high floor pressure should be considered for pressure-sensitive floors.

Part Desc.Weight (KG)Wheel Ø (D) [mm]Tire width (T2) [mm]Load capacity [kg]Bearing typeTotal height [mm]Plate size [mm]Bolt hole spacing [mm]Bolt hole Ø [mm]Tread & tire hardnessWheel Center
