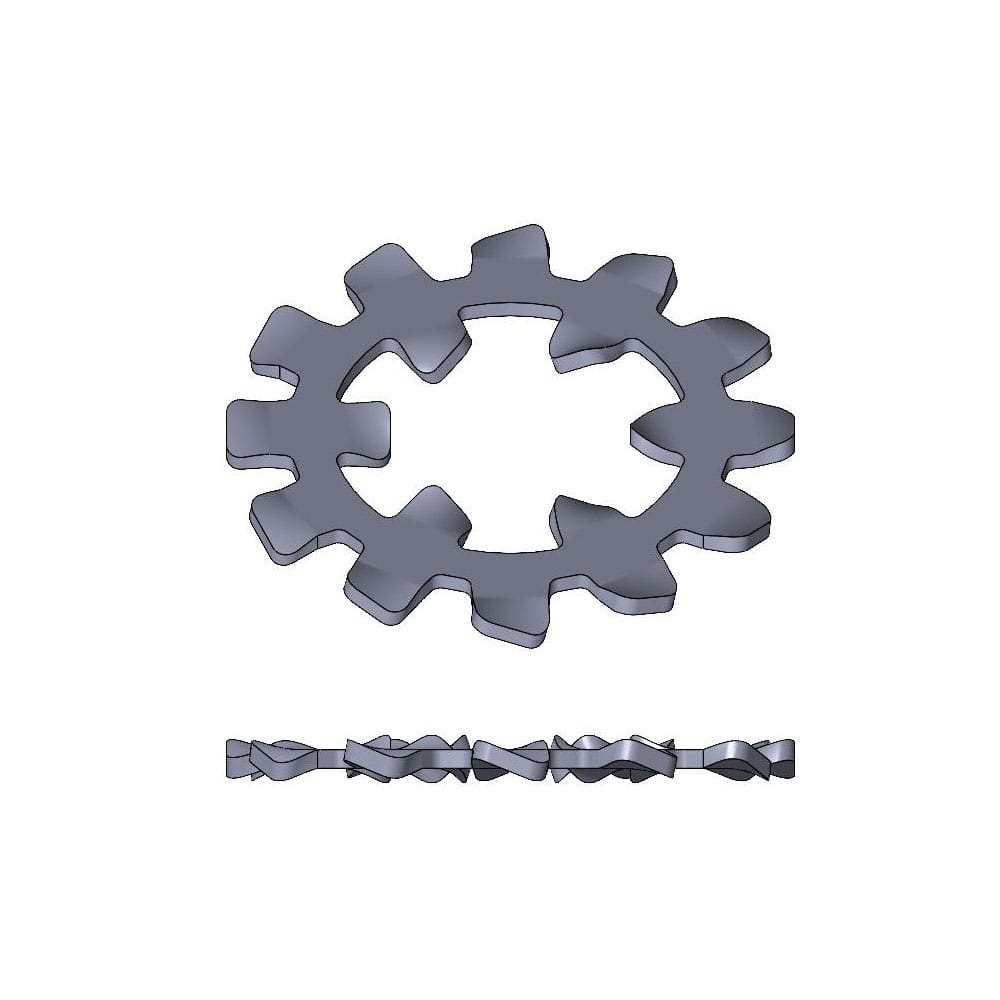

Lock Washers | Internal External Tooth

All Products / Washers / Inch Washers / Lock Washers | Internal External Tooth


Clear
Product Description: N/A Category: Tag:

Dimensions

General
Nominal
Washer
Size
T
Thickness
A
Inside
Diameter
B
Outside
Diameter
4 – .112 .021 / .016
.021 / .017
.021 / .017
.123 / .115 .475 / .460
.510 / .495
.610 / .580
6 – .138 .028 / .023
.028 / .023
.028 / .023
.150 / .141 .510 / .495
.610 / .580
.690 / .670
8 – .164 .034 / .028
.034 / .028
.034 / .028
.176 / .168 .610 / .580
.690 / .670
.760 / .740
10 – .190 .034 / .028
.040 / .032
.040 / .032
.040 / .032
.204 / .195 .610 / .580
.690 / .670
.760 / .740
.900 / .880
12 – .216 .040 / .032
.040 / .032
.040 / .032
.045 / .037
.231 / .221 .690 / .670
.760 / .725
.900 / .880
.985 / .965
1/4 – .250 .040 / .032
.040 / .032
.045 / .037
.045 / .037
.267 / .256 .760 / .725
.900 / .880
.985 / .965
1.070 / 1.045

Material & Finish

Material CodeMaterial DescriptionFinish CodeFinish Description
STLLow Carbon Steel (STL)Z Zinc Clear
SSStainless SteelP Passivated
PLN Plain

Contact a PENCOM Account Representative for other material & finish options.
