Lock Washers | External Tooth

All Products / Washers / Metric Washers / Lock Washers | External Tooth


Clear
Product Description: N/A Category: Tag:

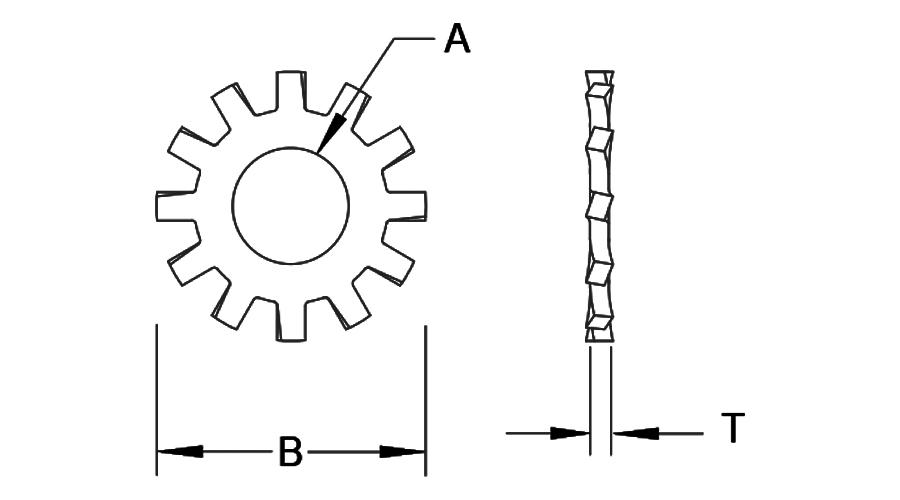

Dimensions

General
Nominal Washer Size T
Thickness
MIN/Code
A
Inside Diameter
Inside
Diameter
Code
B
Outside
Diameter
Outside
Diameter
Code
1.7 0.3 1.84 / 1.7 1.7 3.6 / 3.3 3.3
2.2 0.3 2.34 / 2.2 2.2 4.5 / 4.2 4.2
2.7 0.4 2.84 / 2.7 2.7 5.5 / 5.2 5.2
3.2 0.4 3.38 / 3.2 3.2 6.0 / 5.7 5.7
3.7 0.5 3.88 / 3.7 3.7 7.0 / 6.64 6.64
4.3 0.5 4.48 / 4.3 4.3 8.0 / 7.64 7.64
5.3 0.6 5.48 / 5.3 5.3 10.0 / 9.64 9.64
6.4 0.7 6.62 / 6.4 6.4 11.0 / 10.57 10.57
7.4 0.8 7.62 / 7.4 7.4 12.5 / 12.07 12.07
8.4 0.8 8.62 / 7.4 7.4 15.0 / 14.57 14.57
10.5 0.9 10.77 / 10.5 10.5 18.0 / 17.57 17.57
13 1 13.27 / 13.0 13 20.5 / 19.98 19.98
15 1 15.27 / 15.0 17 24.0 / 23.48 23.48
17 1.2 17.27 / 17.0 15 26.0 / 25.48 25.48
19 1.4 19.33 / 19.0 19 30.0 / 29.48 29.48
21 1.4 21.33 / 21.0 21 33.0 / 32.38 32.38

Material & Finish

Material CodeMaterial DescriptionFinish CodeFinish Description
STLLow Carbon Steel (STL)Z Zinc Clear
SSStainless SteelP Passivated
PLN Plain

Contact a PENCOM Account Representative for other material & finish options.
