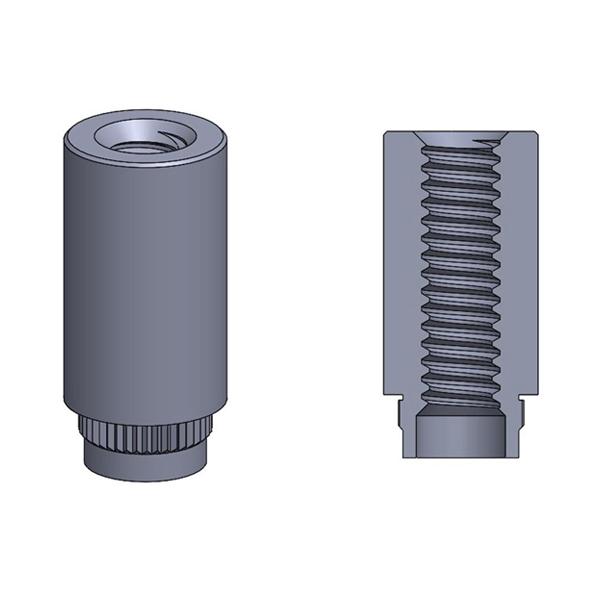

General

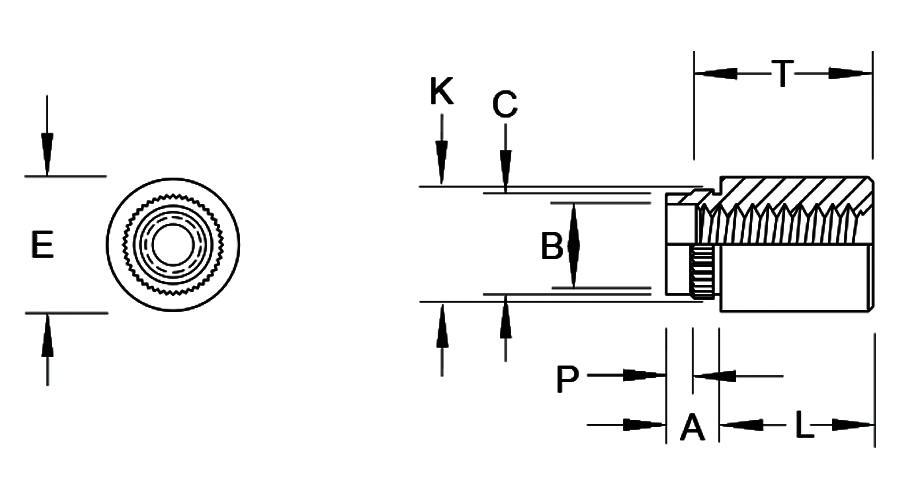

| Rosca | Rosca Código | A MÁX | Chapa Espesor | Tamaño del orificio en la chapa +.005/-.001 | B ±.003 | C MÁX. | E ±.005 | K ±.003 | P ±.010 | Dist. Orificio C/L hasta el borde MÍN. |
|---|---|---|---|---|---|---|---|---|---|---|
| 4-40 | 440 | .09 | .050-.065 | .166 | .122 | .165 | .220 | .179 | .040 | .17 |
| 6-32 | 632 | .09 | .050-.065 | .213 | .171 | .212 | .280 | .226 | .040 | .22 |
Longitud
| (T) Longitud de rosca MÍN. | Total | .375 ± .01 | .375 ciego | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| (L) Longitud ±.005 | .062 | .125 | .187 | .250 | .312 | .375 | .500 | .625 | 0.750 | 1.000 |
