TC Broaching Head Self-clinching Standoffs

Install easily by pressing into P.C. boards, aluminum, castings, plastics, and other soft materials.
Use axial broaching grooves that cut into the mating sheet hole to create an interference fit and resist rotation.
Recommended for use with non-plated holes in P.C. board applications for proper broaching performance.
Available in inch thread sizes 4-40 and 6-32, plus metric M3 x 0.5 thread options.
Offered in inch lengths from .125" to 1.000" and metric lengths from 3.00mm to 16.00mm, depending on thread size and selected part number.
Available in heat-treated carbon steel, 300-series stainless steel, aluminum, and brass material options with zinc, passivated, plain, and tin finish selections.

Product PDF

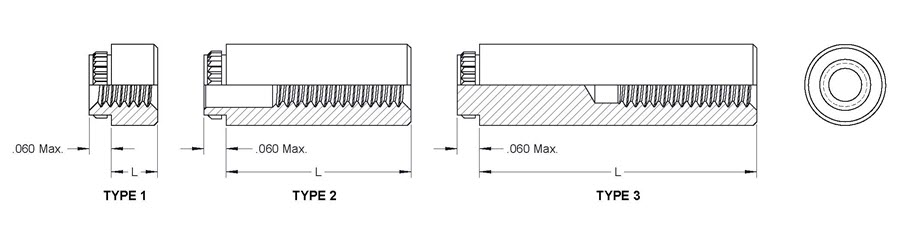

Part Description	Inch/Metric	Thread	Length (L) (±.005in) (±0.13mm)	Type	Min. Sheet Thickness	Hole size in sheet (+.003/-.000in) (+0.08/-0.00mm)	Min. dist. hole C/L to edge	For use in sheet hardness	Knurl Dia. (C) (±.003in) (±.08mm)	Material	Finish
TCSS-440-.125-P	Inch	4-40	.125	1	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-440-.250-P	Inch	4-40	.250	1	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-440-.375-P	Inch	4-40	.375	1	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-440-.500-P	Inch	4-40	.500	2	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-440-.625-P	Inch	4-40	.625	2	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-440-.750-P	Inch	4-40	.750	3	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-440-.875-P	Inch	4-40	.875	3	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-440-1.000-P	Inch	4-40	1.000	3	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-632-.125-P	Inch	6-32	.125	1	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCSS-632-.250-P	Inch	6-32	.250	1	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCSS-632-.375-P	Inch	6-32	.375	1	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCSS-632-.500-P	Inch	6-32	.500	2	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCSS-632-.625-P	Inch	6-32	.625	2	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCSS-632-.750-P	Inch	6-32	.750	3	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCSS-632-.875-P	Inch	6-32	.875	3	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCSS-632-1.000-P	Inch	6-32	1.000	3	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCST-440-.125-TIN	Inch	4-40	.125	1	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-440-.250-TIN	Inch	4-40	.250	1	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-440-.375-TIN	Inch	4-40	.375	1	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-440-.500-TIN	Inch	4-40	.500	2	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-440-.625-TIN	Inch	4-40	.625	2	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-440-.750-TIN	Inch	4-40	.750	3	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-440-.875-TIN	Inch	4-40	.875	3	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-440-1.000-TIN	Inch	4-40	1.000	3	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-632-.125-TIN	Inch	6-32	.125	1	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-632-.250-TIN	Inch	6-32	.250	1	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-632-.375-TIN	Inch	6-32	.375	1	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-632-.500-TIN	Inch	6-32	.500	2	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-632-.625-TIN	Inch	6-32	.625	2	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-632-.750-TIN	Inch	6-32	.750	3	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-632-.875-TIN	Inch	6-32	.875	3	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-632-1.000-TIN	Inch	6-32	1.000	3	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-M3-3-TIN	Metric	M3 x 0.5	3	1	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCST-M3-4-TIN	Metric	M3 x 0.5	4	1	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCST-M3-6-TIN	Metric	M3 x 0.5	6	1	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCST-M3-8-TIN	Metric	M3 x 0.5	8	1	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCST-M3-10-TIN	Metric	M3 x 0.5	10	1	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCST-M3-12-TIN	Metric	M3 x 0.5	12	2	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCST-M3-14-TIN	Metric	M3 x 0.5	14	2	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCST-M3-16-TIN	Metric	M3 x 0.5	16	2	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCSS-M3-3-P	Metric	M3 x 0.5	3	1	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
TCSS-M3-4-P	Metric	M3 x 0.5	4	1	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
TCSS-M3-6-P	Metric	M3 x 0.5	6	1	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
TCSS-M3-8-P	Metric	M3 x 0.5	8	1	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
TCSS-M3-10-P	Metric	M3 x 0.5	10	1	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
TCSS-M3-12-P	Metric	M3 x 0.5	12	2	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
TCSS-M3-14-P	Metric	M3 x 0.5	14	2	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
TCSS-M3-16-P	Metric	M3 x 0.5	16	2	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
