TA / TB Concealed Head Self‐clinching Standoffs

Provide concealed-head self-clinching standoff installation for strong, flush mounting in sheet metal assemblies.
Designed for use in sheet materials with hardness of HRB 70 or less.

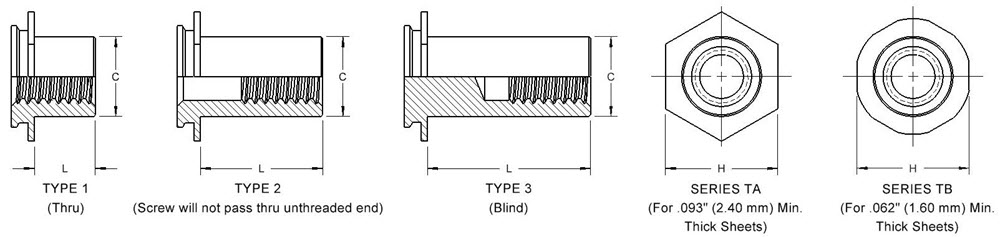

Available in TA and TB styles, with TA parts for .093" minimum sheet thickness and TB parts for .062" minimum sheet thickness.
Offered in inch thread sizes 4-40, 6-32, 8-32, 10-32, and 1/4-20, plus metric thread sizes M3, M3.5, M4, M5, and M6.
Support inch lengths from .187" to 1.00" and metric lengths from 4mm to 25mm, depending on thread size and selected part number.
Made from 300-series stainless steel with passivated and/or tested finish per ASTM A967 for corrosion-resistant performance.

Part Description	Inch/Metric	Thread	Length (L) (+.002/-.005in) (+0.05/-0.13mm)	Type	Min. Sheet Thickness	Mounting hole size in sheet (+.003/-.000in) (+0.08/-0.00mm)	Min. dist. hole C/L to edge	For use in sheet hardness	C Max.	H Nom.	Material	Finish
TASS-440-.187-P	Inch	4-40	.187	1	.093	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-440-.250-P	Inch	4-40	.250	2	.093	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-440-.312-P	Inch	4-40	.312	2	.093	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-440-.375-P	Inch	4-40	.375	2	.093	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-440-.500-P	Inch	4-40	.500	3	.093	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-440-.625-P	Inch	4-40	.625	3	.093	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-440-.750-P	Inch	4-40	.750	3	.093	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-440-1.00-P	Inch	4-40	1.000	3	.093	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-632-.187-P	Inch	6-32	.187	1	.093	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-632-.250-P	Inch	6-32	.250	2	.093	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-632-.312-P	Inch	6-32	.312	2	.093	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-632-.375-P	Inch	6-32	.375	2	.093	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-632-.500-P	Inch	6-32	.500	3	.093	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-632-.625-P	Inch	6-32	.625	3	.093	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-632-.750-P	Inch	6-32	.750	3	.093	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-632-1.00-P	Inch	6-32	1.000	3	.093	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-832-.187-P	Inch	8-32	.187	1	.093	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-832-.250-P	Inch	8-32	.250	1	.093	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-832-.312-P	Inch	8-32	.312	2	.093	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-832-.375-P	Inch	8-32	.375	2	.093	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-832-.500-P	Inch	8-32	.500	3	.093	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-832-.625-P	Inch	8-32	.625	3	.093	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-832-.750-P	Inch	8-32	.750	3	.093	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-832-1.00-P	Inch	8-32	1.000	3	.093	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-1032-.187-P	Inch	10-32	.187	1	.093	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-1032-.250-P	Inch	10-32	.250	1	.093	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-1032-.312-P	Inch	10-32	.312	1	.093	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-1032-.375-P	Inch	10-32	.375	1	.093	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-1032-.500-P	Inch	10-32	.500	2	.093	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-1032-.625-P	Inch	10-32	.625	3	.093	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-1032-.750-P	Inch	10-32	.750	3	.093	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-1032-1.00-P	Inch	10-32	1.000	3	.093	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-2520-.187-P	Inch	1/4-20	.187	1	.093	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-2520-.250-P	Inch	1/4-20	.250	1	.093	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-2520-.312-P	Inch	1/4-20	.312	1	.093	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-2520-.375-P	Inch	1/4-20	.375	1	.093	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-2520-.500-P	Inch	1/4-20	.500	2	.093	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-2520-.625-P	Inch	1/4-20	.625	2	.093	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-2520-.750-P	Inch	1/4-20	.750	3	.093	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-2520-1.00-P	Inch	1/4-20	1.000	3	.093	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3-4-P	Metric	M3 x 0.5	4	1	2.40	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3-6-P	Metric	M3 x 0.5	6	1	2.40	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3-8-P	Metric	M3 x 0.5	8	3	2.40	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3-10-P	Metric	M3 x 0.5	10	3	2.40	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3-12-P	Metric	M3 x 0.5	12	3	2.40	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3-16-P	Metric	M3 x 0.5	16	3	2.40	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3-20-P	Metric	M3 x 0.5	20	3	2.40	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3-25-P	Metric	M3 x 0.5	25	3	2.40	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3.5-4-P	Metric	M3.5 x 0.6	4	1	2.40	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3.5-6-P	Metric	M3.5 x 0.6	6	1	2.40	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3.5-8-P	Metric	M3.5 x 0.6	8	2	2.40	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3.5-10-P	Metric	M3.5 x 0.6	10	3	2.40	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3.5-12-P	Metric	M3.5 x 0.6	12	3	2.40	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3.5-16-P	Metric	M3.5 x 0.6	16	3	2.40	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3.5-20-P	Metric	M3.5 x 0.6	20	3	2.40	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M3.5-25-P	Metric	M3.5 x 0.6	25	3	2.40	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M4-4-P	Metric	M4 x 0.7	4	1	2.40	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M4-6-P	Metric	M4 x 0.7	6	1	2.40	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M4-8-P	Metric	M4 x 0.7	8	2	2.40	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M4-10-P	Metric	M4 x 0.7	10	3	2.40	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M4-12-P	Metric	M4 x 0.7	12	3	2.40	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M4-16-P	Metric	M4 x 0.7	16	3	2.40	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M4-20-P	Metric	M4 x 0.7	20	3	2.40	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M4-25-P	Metric	M4 x 0.7	25	3	2.40	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M5-4-P	Metric	M5 x 0.8	4	1	2.40	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M5-6-P	Metric	M5 x 0.8	6	1	2.40	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M5-8-P	Metric	M5 x 0.8	8	1	2.40	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M5-10-P	Metric	M5 x 0.8	10	2	2.40	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M5-12-P	Metric	M5 x 0.8	12	2	2.40	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M5-16-P	Metric	M5 x 0.8	16	3	2.40	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M5-20-P	Metric	M5 x 0.8	20	3	2.40	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M5-25-P	Metric	M5 x 0.8	25	3	2.40	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M6-4-P	Metric	M6 x 1.0	4	1	2.40	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M6-6-P	Metric	M6 x 1.0	6	1	2.40	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M6-8-P	Metric	M6 x 1.0	8	1	2.40	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M6-10-P	Metric	M6 x 1.0	10	2	2.40	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M6-12-P	Metric	M6 x 1.0	12	2	2.40	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M6-16-P	Metric	M6 x 1.0	16	3	2.40	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M6-20-P	Metric	M6 x 1.0	20	3	2.40	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TASS-M6-25-P	Metric	M6 x 1.0	25	3	2.40	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-440-.187-P	Inch	4-40	.187	1	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-440-.250-P	Inch	4-40	.250	2	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-440-.312-P	Inch	4-40	.312	2	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-440-.375-P	Inch	4-40	.375	2	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-440-.500-P	Inch	4-40	.500	3	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-440-.625-P	Inch	4-40	.625	3	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-440-.750-P	Inch	4-40	.750	3	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-440-1.00-P	Inch	4-40	1.000	3	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-.187-P	Inch	6-32	.187	1	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-.250-P	Inch	6-32	.250	2	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-.312-P	Inch	6-32	.312	2	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-.375-P	Inch	6-32	.375	2	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-.500-P	Inch	6-32	.500	3	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-.625-P	Inch	6-32	.625	3	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-.750-P	Inch	6-32	.750	3	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-1.00-P	Inch	6-32	1.000	3	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-.187-P	Inch	8-32	.187	1	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-.250-P	Inch	8-32	.250	1	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-.312-P	Inch	8-32	.312	2	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-.375-P	Inch	8-32	.375	2	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-.500-P	Inch	8-32	.500	3	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-.625-P	Inch	8-32	.625	3	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-.750-P	Inch	8-32	.750	3	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-1.00-P	Inch	8-32	1.000	3	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-.187-P	Inch	10-32	.187	1	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-.250-P	Inch	10-32	.250	1	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-.312-P	Inch	10-32	.312	1	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-.375-P	Inch	10-32	.375	1	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-.500-P	Inch	10-32	.500	2	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-.625-P	Inch	10-32	.625	3	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-.750-P	Inch	10-32	.750	3	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-1.00-P	Inch	10-32	1.000	3	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-.187-P	Inch	1/4-20	.187	1	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-.250-P	Inch	1/4-20	.250	1	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-.312-P	Inch	1/4-20	.312	1	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-.375-P	Inch	1/4-20	.375	1	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-.500-P	Inch	1/4-20	.500	2	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-.625-P	Inch	1/4-20	.625	2	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-.750-P	Inch	1/4-20	.750	3	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-1.00-P	Inch	1/4-20	1.000	3	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-4-P	Metric	M3 x 0.5	4	1	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-6-P	Metric	M3 x 0.5	6	1	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-8-P	Metric	M3 x 0.5	8	2	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-10-P	Metric	M3 x 0.5	10	3	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-12-P	Metric	M3 x 0.5	12	3	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-16-P	Metric	M3 x 0.5	16	3	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-20-P	Metric	M3 x 0.5	20	3	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-25-P	Metric	M3 x 0.5	25	3	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3.5-4-P	Metric	M3.5 x 0.6	4	1	1.60	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3.5-6-P	Metric	M3.5 x 0.6	6	1	1.60	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3.5-8-P	Metric	M3.5 x 0.6	8	2	1.60	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3.5-10-P	Metric	M3.5 x 0.6	10	3	1.60	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3.5-12-P	Metric	M3.5 x 0.6	12	3	1.60	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3.5-16-P	Metric	M3.5 x 0.6	16	3	1.60	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3.5-20-P	Metric	M3.5 x 0.6	20	3	1.60	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3.5-25-P	Metric	M3.5 x 0.6	25	3	1.60	7.37	5.6	HRB 70 or less	5.41	7.92	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-4-P	Metric	M4 x 0.7	4	1	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-6-P	Metric	M4 x 0.7	6	1	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-8-P	Metric	M4 x 0.7	8	2	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-10-P	Metric	M4 x 0.7	10	2	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-12-P	Metric	M4 x 0.7	12	3	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-16-P	Metric	M4 x 0.7	16	3	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-20-P	Metric	M4 x 0.7	20	3	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-25-P	Metric	M4 x 0.7	25	3	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-4-P	Metric	M5 x 0.8	4	1	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-6-P	Metric	M5 x 0.8	6	1	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-8-P	Metric	M5 x 0.8	8	1	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-10-P	Metric	M5 x 0.8	10	2	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-12-P	Metric	M5 x 0.8	12	2	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-16-P	Metric	M5 x 0.8	16	3	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-20-P	Metric	M5 x 0.8	20	3	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-25-P	Metric	M5 x 0.8	25	3	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M6-4-P	Metric	M6 x 1.0	4	1	1.60	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M6-6-P	Metric	M6 x 1.0	6	1	1.60	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M6-8-P	Metric	M6 x 1.0	8	1	1.60	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M6-10-P	Metric	M6 x 1.0	10	2	1.60	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M6-12-P	Metric	M6 x 1.0	12	2	1.60	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M6-16-P	Metric	M6 x 1.0	16	3	1.60	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M6-20-P	Metric	M6 x 1.0	20	3	1.60	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M6-25-P	Metric	M6 x 1.0	25	3	1.60	9.90	9.5	HRB 70 or less	9.00	11.11	300-Series stainless steel	Passivated and/or tested per ASTM A 967

TA / TB Concealed Head Self‐clinching Standoffs

Contact Us

Personal & Contact Info

Address

Attachments & Comments
