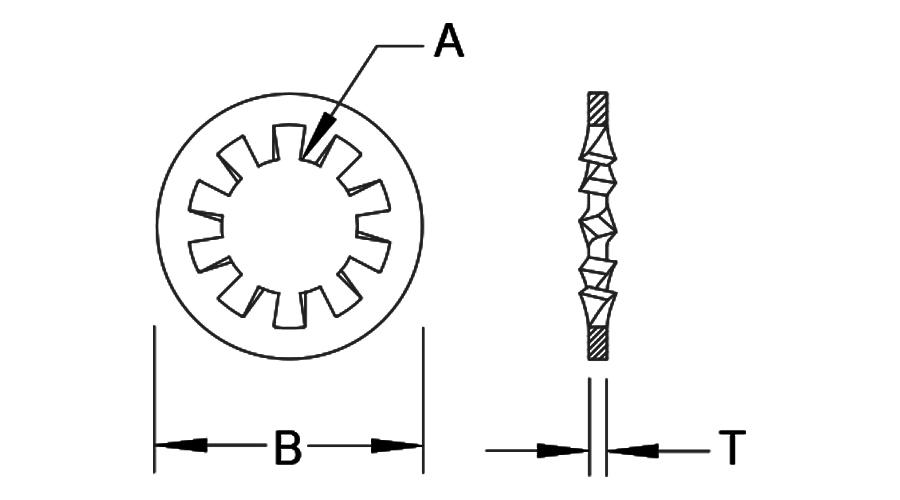

• internaltooth dimension dwg
  • internaltooth dimension dwg

Lock Washers Internal Tooth Metric


Download PDF

Loading Parts

General
Nominal Washer SizeT
Thickness
MIN/Code
A
Inside Diameter
Inside
Diameter
Code
B
Outside
Diameter
Outside
Diameter
Code
1.70.31.84 / 1.71.73.6 / 3.33.3
2.20.32.34 / 2.22.24.5 / 4.24.2
2.70.42.84 / 2.72.75.5 / 5.25.2
3.20.43.38 / 3.23.26.0 / 5.75.7
3.70.53.88 / 3.73.77.0 / 6.646.64
4.30.54.48 / 4.34.38.0 / 7.647.64
5.30.65.48 / 5.35.310.0 / 9.649.64
6.40.76.62 / 6.46.411.0 / 10.5710.57
7.40.87.62 / 7.47.412.5 / 12.0712.07
8.40.88.62 / 7.47.415.0 / 14.5714.57
10.50.910.77 / 10.510.518.0 / 17.5717.57
13113.27 / 13.01320.5 / 19.9819.98
15115.27 / 15.01724.0 / 23.4823.48
171.217.27 / 17.01526.0 / 25.4825.48
191.419.33 / 19.01930.0 / 29.4829.48
211.421.33 / 21.02133.0 / 32.3832.38
