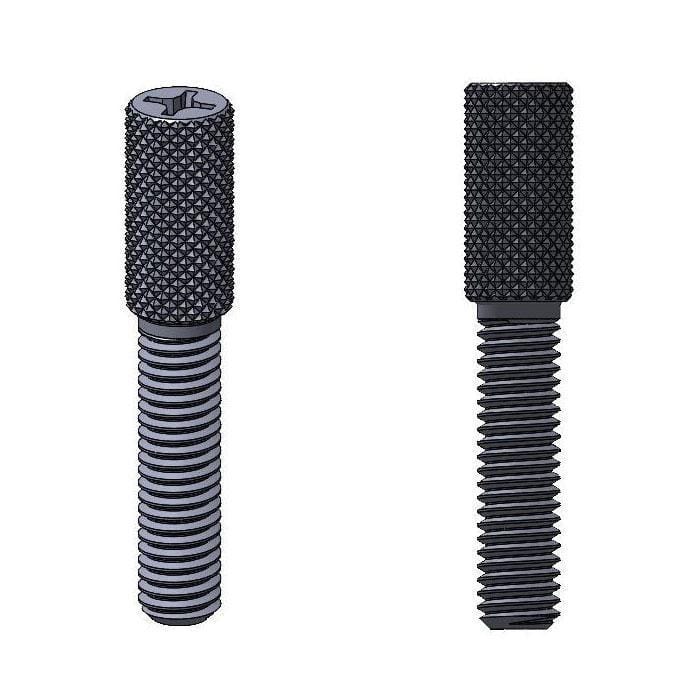

Push Thumb Inch Thumb Screws

Download PDF

Product List
Specifications

Loading Parts

Drive

Drive	Description
PH	Cross Recess
SL	Slotted

General

Thread	A Head Dia. +0.020 -0.000	B Head Height -0.015	C Length ±0.015	D Thread Length ±0.010
6-32	3/16	3/8	1	5/8
			1-1/8	3/4
			1-1/4	7/8
			1-3/8	1
			1-1/2	1-1/8
			1-5/8	1-1/4
			1-3/4	1-3/8
			1-7/8	1-1/2
			2	1-5/8
			2-1/8	1-3/4
			2-1/4	1-7/8
			2-3/8	2
8-32	3/16	3/8	1	5/8
			1-1/8	3/4
			1-1/4	7/8
			1-3/8	1
			1-1/2	1-1/8
			1-5/8	1-1/4
			1-3/4	1-3/8
			1-7/8	1-1/2
			2	1-5/8
			2-1/8	1-3/4
			2-1/4	1-7/8
			2-3/8	2
10-24	1/4	1/2	1	5/8
			1-1/8	3/4
			1-1/4	7/8
			1-3/8	1
			1-1/2	1-1/8
			1-5/8	1-1/4
			1-3/4	1-3/8
			1-7/8	1-1/2
			2	1-5/8
			2-1/8	1-3/4
			2-1/4	1-7/8
			2-3/8	2
10-32	1/4	1/2	1	5/8
			1-1/8	3/4
			1-1/4	7/8
			1-3/8	1
			1-1/2	1-1/8
			1-5/8	1-1/4
			1-3/4	1-3/8
			1-7/8	1-1/2
			2	1-5/8
			2-1/8	1-3/4
			2-1/4	1-7/8
			2-3/8	2
