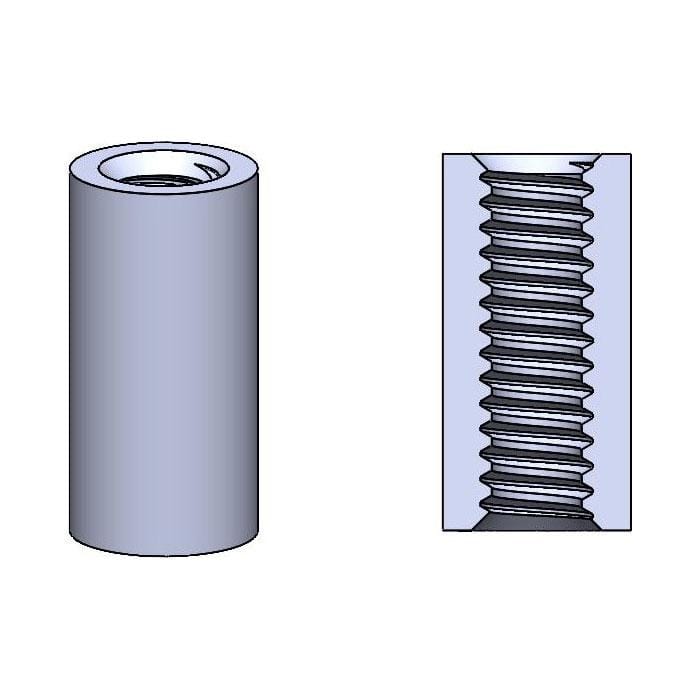

RST Round Female-Female Standoffs Inch


Download PDF

Loading Parts

General
ThreadThread CodeA Min.
0-80080.187
2-56256.187
4-40440.250
6-32632.375
8-32832.437
10-321032.500
12-241224.500
1/4-202520.625
5/16-183118.625
3/8-163716.625
7/16-144314.625
Style
ThreadMaterial Code
STL, AL, BRS, NYV0, NYV2SS
Style AStyle BStyle AStyle B
Length
0-80Thru 3/8Over 3/8Thru 1/4Over 1/4
2-56Thru 3/4Over 3/4Thru 5/8Over 5/8
4-40Thru 1Over 1Thru 3/4Over 3/4
6-32Thru 1Over 1Thru 1Over 1
8-32Thru 1Over 1Thru 1Over 1
10-32Thru 1-1/8Over 1-1/8Thru 1Over 1
12-24Thru 1-1/8Over 1-1/8Thru 1Over 1
1/4-20Thru 1-1/4Over 1-1/4Thru 1-1/4Over 1-1/4
5/16-18Thru 1-1/4Over 1-1/4Thru 1-1/4Over 1-1/4
3/8-16Thru 1-1/4Over 1-1/4Thru 1-1/4Over 1-1/4
7/16-14Thru 1-1/4Over 1-1/4Thru 1-1/4Over 1-1/4
Length
LengthL
(Length Code)
±.005
3/32.094
1/8.125
5/32.156
3/16.187
7/32.219
1/4.250
9/32.281
5/16.312
11/32.344
3/8.375
13/32.406
7/16.437
15/32.469
1/2.500
17/32.531
9/16.562
19/32.594
5/8.625
21/32.656
11/16.687
23/32.719
3/4.750
25/32.781
13/16.812
27/32.844
7/8.875
29/32.906
15/16.937
31/32.969
11.000
1-1/161.062
1-1/81.125
1-3/161.187
1-1/41.250
1-5/161.312
1-3/81.375
1-7/161.437
1-1/21.500
1-9/161.562
1-5/81.625
1-11/161.687
1-3/41.750
1-13/161.812
1-7/81.875
1-15/161.937
1010.000
22.000
2-1/162.062
2-1/82.125
2-3/162.187
2-1/42.250
2-5/162.312
2-3/82.375
2-7/162.437
2-1/22.500
2-9/162.562
2-11/162.625
2-11/162.687
2-3/42.750
2-13/162.812
2-7/82.875
2-15/162.937
33.000
44.000
4-1/44.250
4-1/24.500
4-3/44.750
55.000
5-1/45.250
5-1/25.500
5-3/45.750
66.000
6-1/46.250
6-1/26.500
6-3/46.750
77.000
7-1/47.250
7-1/27.500
7-3/47.750
88.000
8-1/48.250
8-1/28.500
8-3/48.750
99.000
9-1/49.250
9-1/29.500
9-3/49.750
