Inch

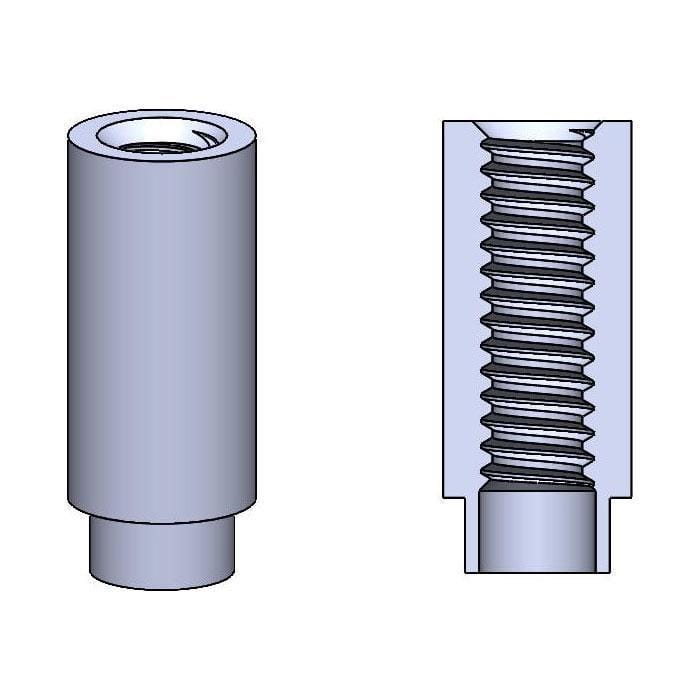

RSST Round Swage Standoffs

This product is also available in Metric
General
ThreadThread CodeA
Min. (1)
0-80080.187
2-56256.187
4-40440.250
6-32632.375
8-32832.437
10-321032.500

(1) A. Min. may be reduced for shorter standoff lengths.

Style
ThreadMaterial Code
STL, AL, BRSSS
Style AStyle BStyle AStyle B
Length
0-80Thru 3/8Over 3/8Thru 1/4Over 1/4
2-56Thru 3/4Over 3/4Thru 5/8Over 5/8
4-40Thru 1Over 1Thru 3/4Over 3/4
6-32Thru 1Over 1Thru 1Over 1
8-32Thru 1Over 1Thru 1Over 1
10-32Thru 1-1/8Over 1-1/8Thru 1Over 1
Shank
Panel ThicknessS
±.003
Shank Length Code
1/32.075A
1/16.105B
3/32.135C
1/8.165D
3/16.230E
1/4.290F
Length

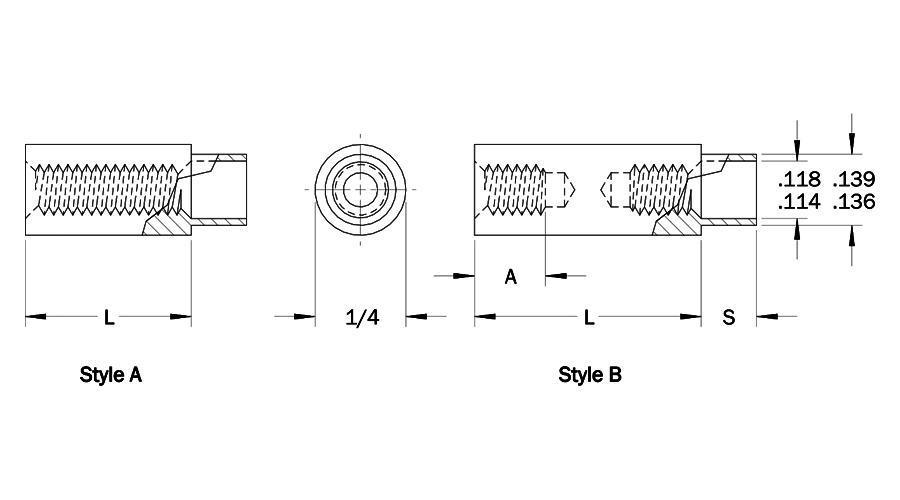

1/4 Width
LengthL
(Length Code)
±.005
3/32.094
1/8.125
5/32.156
3/16.187
7/32.219
1/4.250
9/32.281
5/16.312
11/32.344
3/8.375
13/32.406
7/16.437
15/32.469
1/2.500
17/32.531
9/16.562
19/32.594
5/8.625
21/32.656
11/16.687
23/32.719
3/4.750
25/32.781
13/16.812
27/32.844
7/8.875
29/32.906
15/16.937
31/32.969
11.000
1-1/161.063
1-1/81.125
1-3/161.187
1-1/41.250
1-5/161.312
1-3/81.375
1-7/161.437
1-1/21.500
1-9/161.562
1-5/81.625
1-11/161.687
1-3/41.750
1-13/161.812
1-7/81.875
1-15/161.937
22.000
LengthAnvil Part NumberSwage Punch Part NumberFlare Punch Part Number
3/32–3/16TL1436TL1408TL1289
7/32–7/16TL1437TL1408TL1289
15/32–11/16TL1438TL1408TL1289
23/32–2TL1439TL1408TL1289

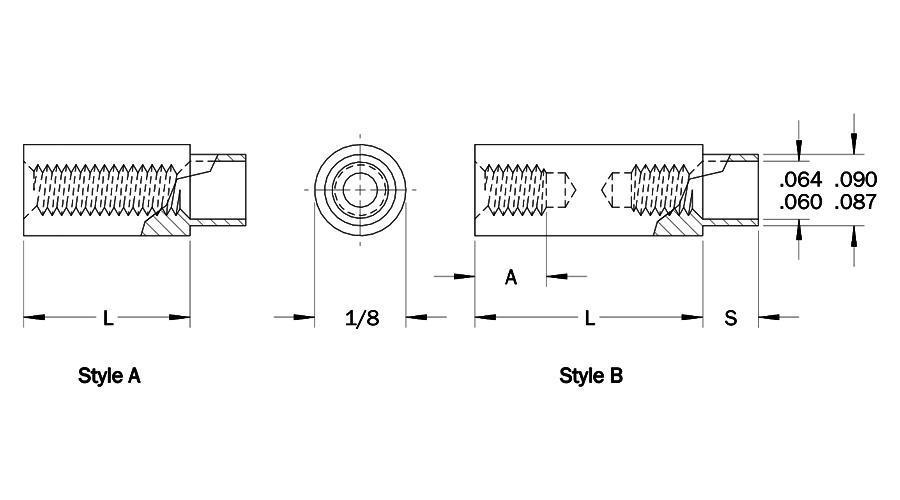

1/8 Width
LengthAnvil Part NumberSwage Punch Part NumberFlare Punch Part Number
3/32–3/16TL1467TL1460TL1289
7/32–7/16TL1468TL1460TL1289
15/32–11/16TL1469TL1460TL1289
23/32–2TL1470TL1460TL1289

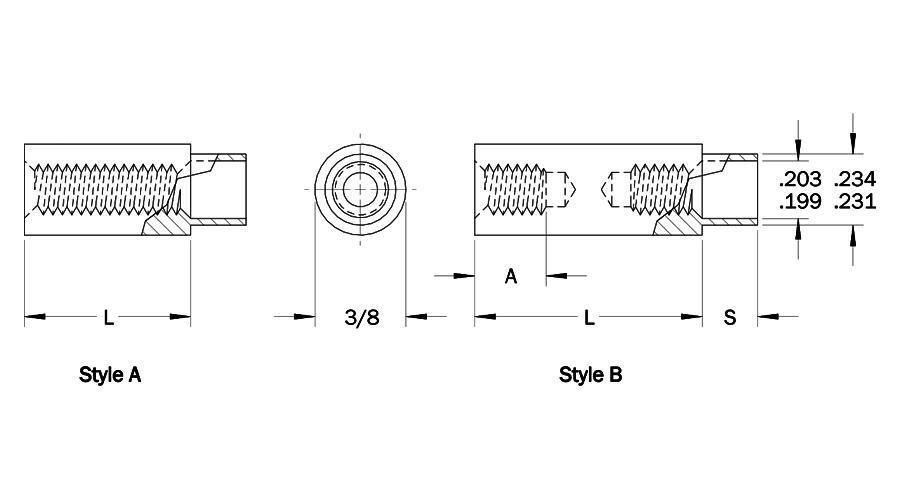

3/8 Width
LengthAnvil Part NumberSwage Punch Part NumberFlare Punch Part Number
3/32–3/16TL1444TL1285TL1289
7/32–7/16TL1445TL1285TL1289
15/32–11/16TL1446TL1285TL1289
23/32–2TL1447TL1285TL1289

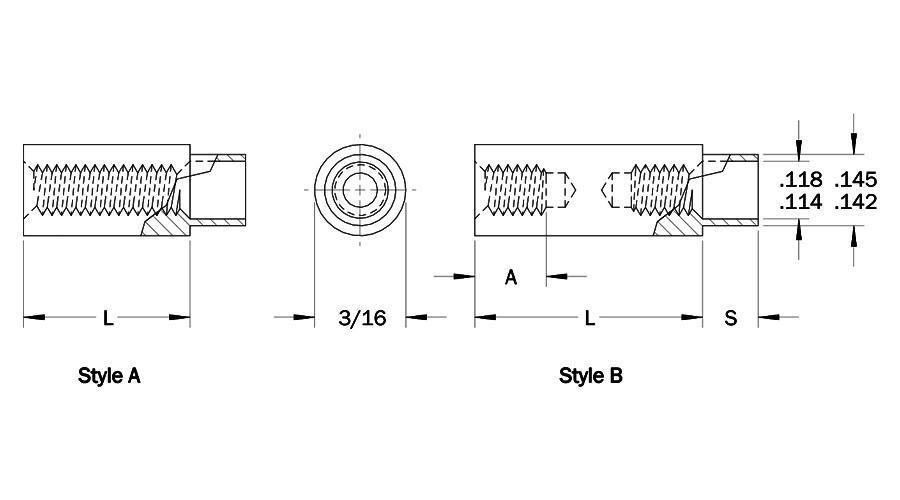

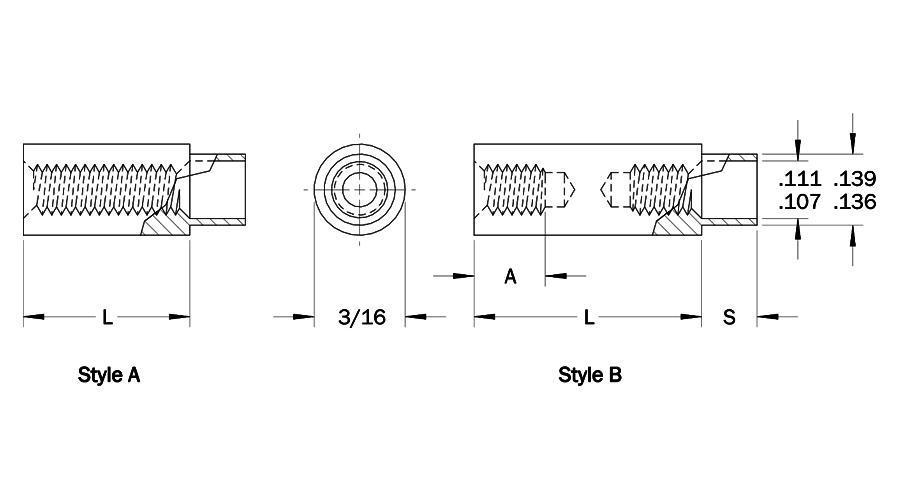

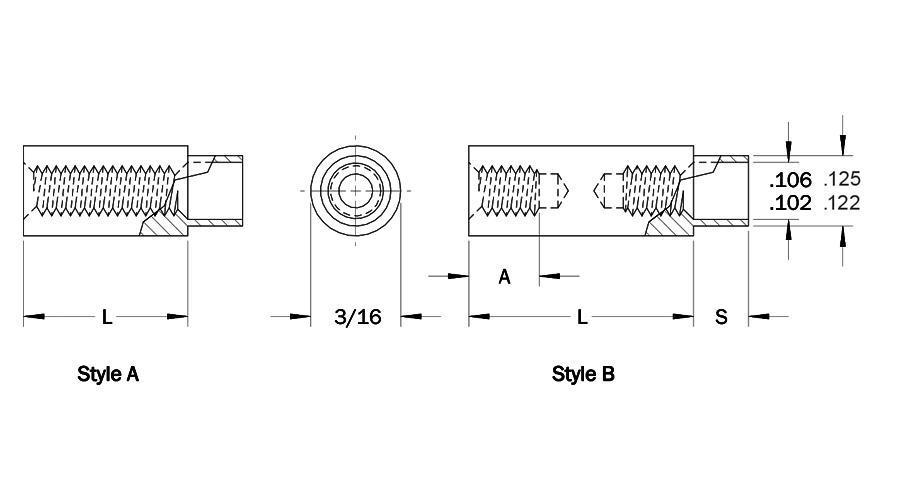

3/16 Width
LengthAnvil Part NumberSwage Punch Part NumberFlare Punch Part Number
3/32–3/16TL1432TL1405TL1289
7/32–7/16TL1433TL1405TL1289
15/32–11/16TL1434TL1405TL1289
23/32–2TL1435TL1405TL1289
5/16 Width
LengthAnvil Part NumberSwage Punch Part NumberFlare Punch Part Number
3/32–3/16TL1440TL1409TL1289
7/32–7/16TL1441TL1409TL1289
15/32–11/16TL1442TL1409TL1289
23/32–2TL1443TL1409TL1289
5/32 Width
LengthAnvil Part NumberSwage Punch Part NumberFlare Punch Part Number
3/32–3/16TL1429TL1405TL1289
7/32–7/16TL1430TL1405TL1289
15/32–11/16TL1431TL1405TL1289
23/32–2TL1471TL1405TL1289
