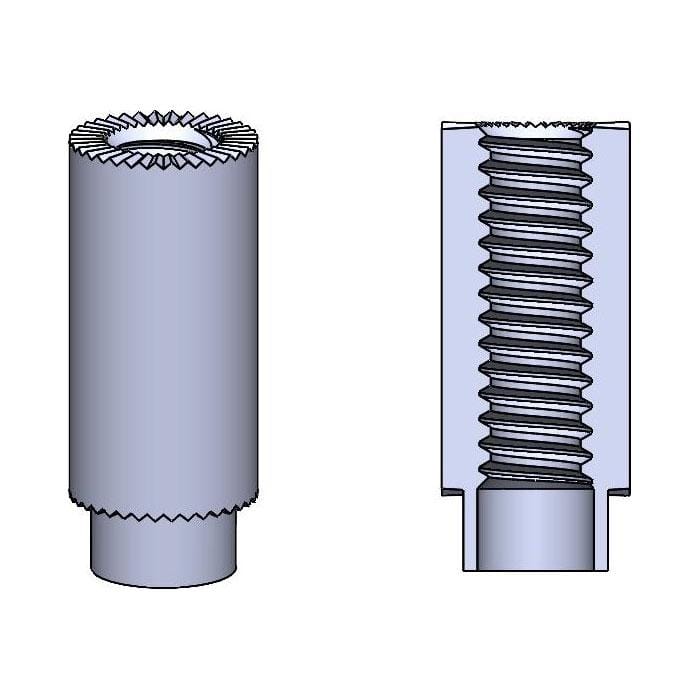

General
| Thread | Thread Code | A Min. (1) |
|---|---|---|
| M1.6 x 0.35 | M1.6 | 4.76 |
| M2 x 0.4 | M2 | 4.76 |
| M2.5 x 0.45 | M25 | 4.76 |
| M3 x 0.5 | M3 | 6.35 |
| M3.5 x 0.6 | M35 | 9.53 |
| M4 x 0.7 | M4 | 11.10 |
| M5 x 0.8 | M5 | 12.70 |
Style
| Thread | Material Code | |||
| STL, AL, BRS | SS | |||
| Style A | Style B | Style A | Style B | |
| Length | ||||
| M1.6 x 0.35 | Thru 9.5 | Over 9.5 | Thru 6.4 | Over 6.4 |
| M2 x 0.4 | Thru 9.5 | Over 9.5 | Thru 6.4 | Over 6.4 |
| M2.5 x 0.45 | Thru 19.0 | Over 19.0 | Thru 16.0 | Over 16.0 |
| M3 x 0.5 | Thru 25.0 | Over 25.0 | Thru 19.0 | Over 19.0 |
Shank
| Panel Thickness | S ±.008 | Shank Length Code |
|---|---|---|
| 0.8 | 1.9 | A |
| 1.6 | 2.7 | B |
| 2.4 | 3.4 | C |
| 3.2 | 4.2 | D |
| 4.8 | 5.8 | E |
| 6.4 | 7.4 | F |
Length

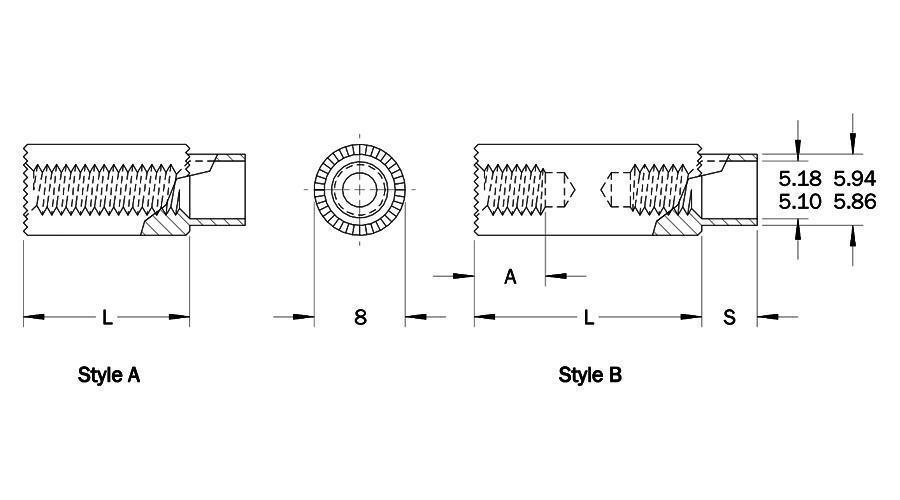

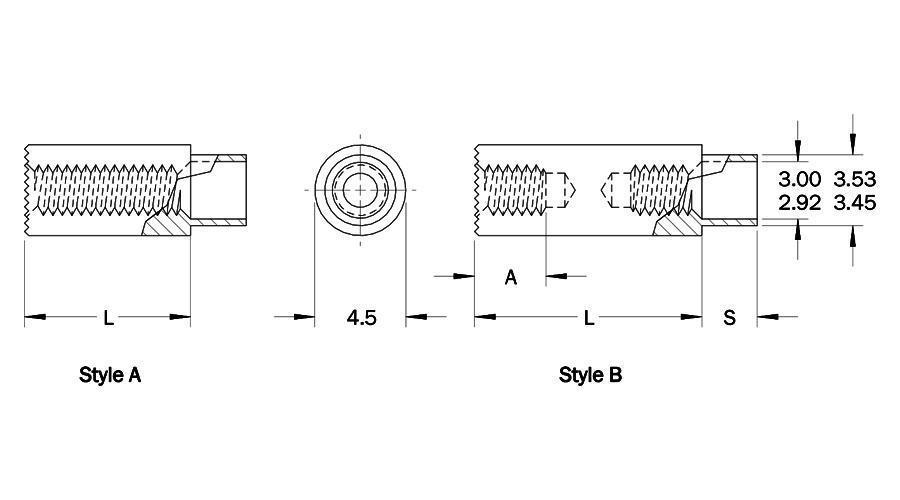

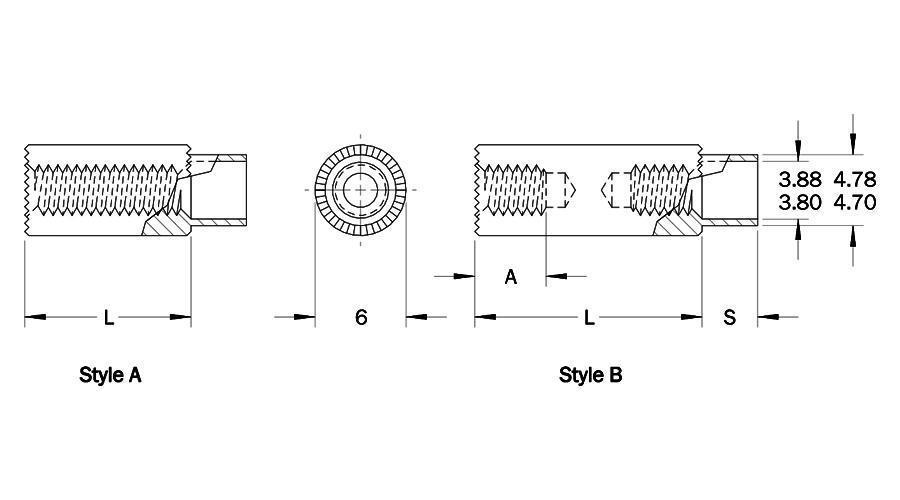

4.5 Width6mm Width8mm Width10mm Width| Length | L (Length Code) ±0.13 | ||
|---|---|---|---|
| 3 | 3.00 | ||
| 4 | 4.00 | ||
| 5 | 5.00 | ||
| 6 | 6.00 | ||
| 7 | 7.00 | ||
| 8 | 8.00 | ||
| 9 | 9.00 | ||
| 10 | 10.00 | ||
| 11 | 11.00 | ||
| 12 | 12.00 | ||
| 13 | 13.00 | ||
| 14 | 14.00 | ||
| 15 | 15.00 | ||
| 16 | 16.00 | ||
| 17 | 17.00 | ||
| 18 | 18.00 | ||
| 19 | 19.00 | ||
| 20 | 20.00 | ||
| 21 | 21.00 | ||
| 22 | 22.00 | ||
| 23 | 23.00 | ||
| 24 | 24.00 | ||
| 25 | 25.00 | ||
| Length | Anvil Part Number | Swage Punch Part Number | Flare Punch Part Number |
| 3-5 | TL1448 | TL1408 | TL1586 |
| 6-12 | TL1449 | TL1408 | TL1586 |
| 13-18 | TL1450 | TL1408 | TL1586 |
| 19-25 | TL1451 | TL1408 | TL1586 |
| Length | Anvil Part Number | Swage Punch Part Number | Flare Punch Part Number |
| 3-5 | TL1452 | TL1197 | TL1586 |
| 6-12 | TL1453 | TL1197 | TL1586 |
| 13-18 | TL1454 | TL1197 | TL1586 |
| 19-25 | TL1455 | TL1197 | TL1586 |
| Length | Anvil Part Number | Swage Punch Part Number | Flare Punch Part Number |
| 3-5 | TL1456 | TL1285 | TL1586 |
| 6-12 | TL1457 | TL1285 | TL1586 |
| 13-18 | TL1458 | TL1285 | TL1586 |
| 19-25 | TL1459 | TL1285 | TL1586 |
| Length | Anvil Part Number | Swage Punch Part Number | Flare Punch Part Number |
| 3-5 | TL1472 | TL1285 | TL1289 |
| 6-12 | TL1473 | TL1285 | TL1289 |
| 13-18 | TL1474 | TL1285 | TL1289 |
| 19-25 | TL1475 | TL1285 | TL1289 |
