Inch

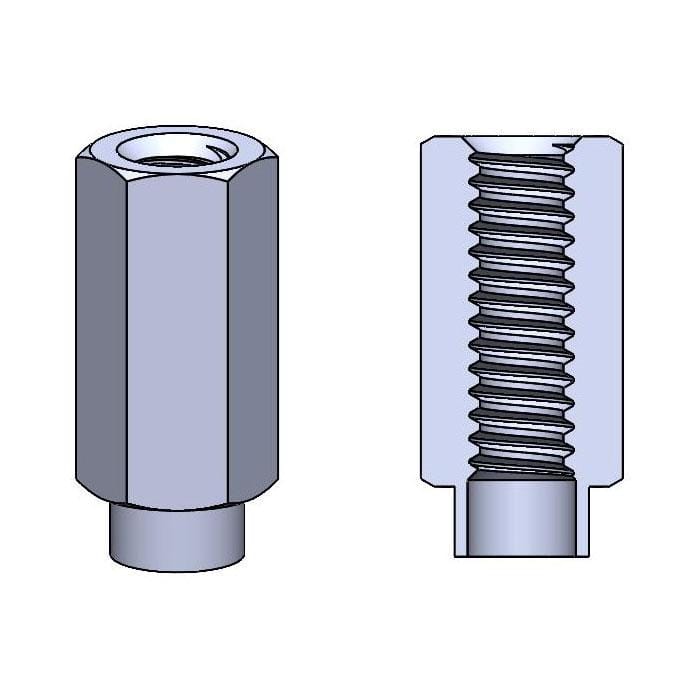

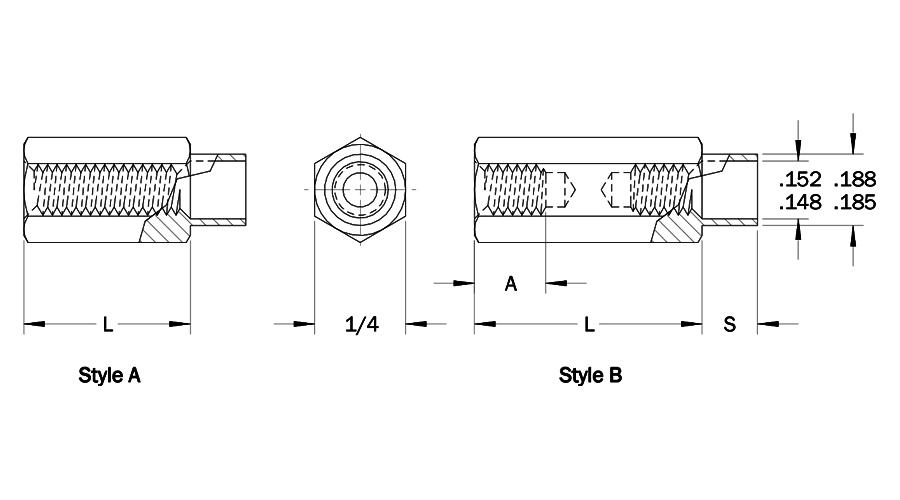

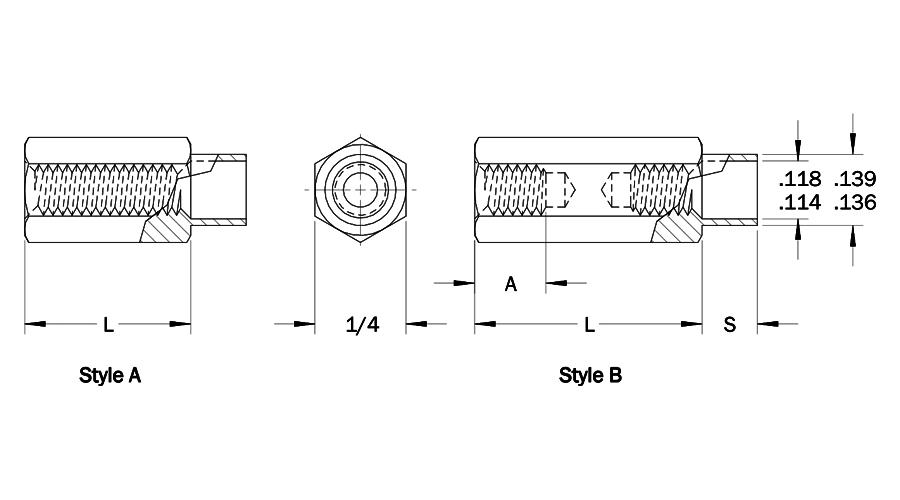

HSST Hex Swage Standoffs

This product is also available in Metric
Download PDF

Can't find what you're looking for or need more information?

Quote Request

General
Thread Thread Code A
Min. (1)
8-80 080 .187
2-56 256 .187
4-40 440 .250
6-32 632 .375
8-32 832 .437
10-32 1032 .500

(1) A. Min. may be reduced for shorter standoff lengths.

Style
Thread Material Code
STL, AL, BRS SS
Style A Style B Style A Style B
Length
0-80 Thru 3/8 Over 3/8 Thru 1/4 Over 1/4
2-56 Thru 3/4 Over 3/4 Thru 5/8 Over 5/8
4-40 Thru 1 Over 1 Thru 3/4 Over 3/4
6-32 Thru 1 Over 1 Thru 1 Over 1
8-32 Thru 1 Over 1 Thru 1 Over 1
10-32 Thru 1-1/8 Over 1-1/8 Thru 1 Over 1
Shank
Panel Thickness S
±.003
Shank Length Code
1/32 .075 A
1/16 .105 B
3/32 .135 C
1/8 .165 D
3/16 .230 E
1/4 .290 F
Length

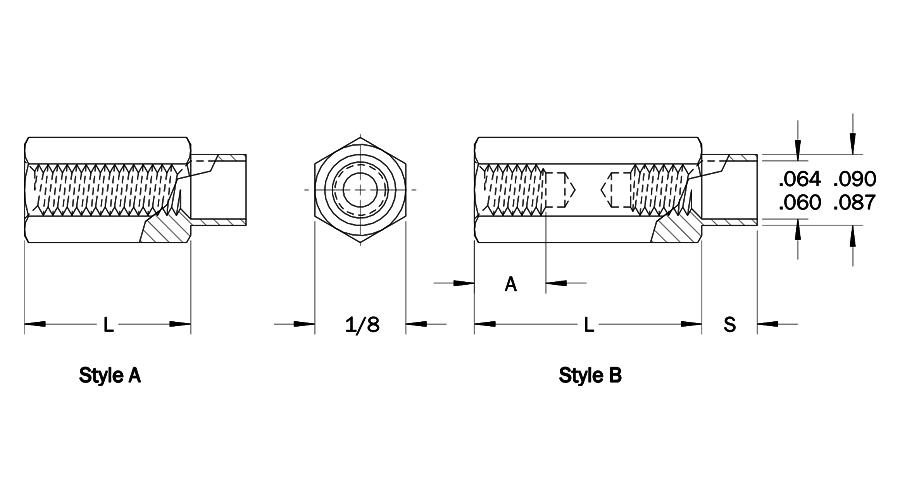

1/8 Width
Length L
(Length Code)
±.005
3/32 .094
1/8 .125
5/32 .156
3/16 .187
7/32 .219
1/4 .250
9/32 .281
5/16 .312
11/32 .344
3/8 .375
13/32 .406
7/16 .437
15/32 .469
1/2 .500
17/32 .531
9/16 .562
19/32 .594
5/8 .625
21/32 .656
11/16 .687
23/32 .719
3/4 .750
25/32 .781
13/16 .812
27/32 .844
7/8 .875
29/32 .906
15/16 .937
31/32 .969
1 1.000
1-1/16 1.063
1-1/8 1.125
1-3/16 1.187
1-1/4 1.250
1-5/16 1.312
1-3/8 1.375
1-7/16 1.437
1-1/2 1.500
1-9/16 1.562
1-5/8 1.625
1-11/16 1.687
1-3/4 1.750
1-13/16 1.812
1-7/8 1.875
1-15/16 1.937
2 2.000
Length Anvil Part Number Swage Punch Part Number Flare Punch Part Number
3/32–3/16 TL1462 TL1460 TL1289
7/32–7/16 TL1463 TL1460 TL1289
15/32–11/16 TL1464 TL1460 TL1289
23/32–1 TL1465 TL1460 TL1289

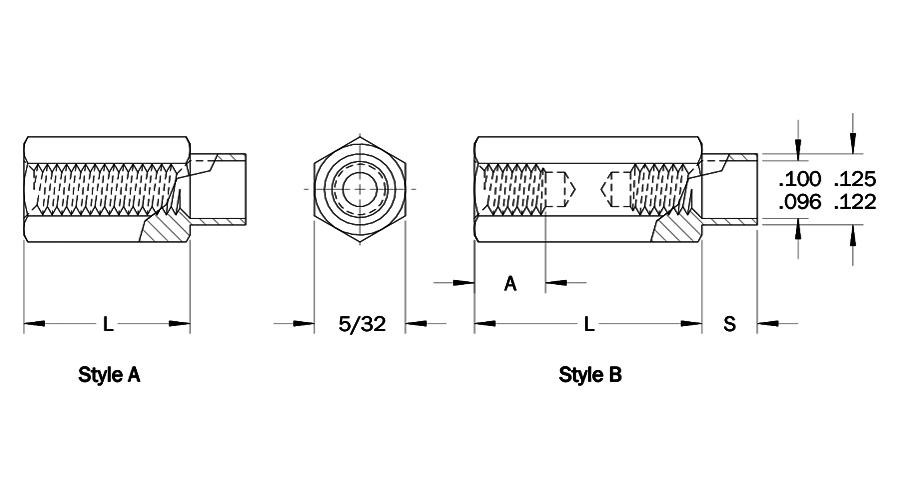

5/32 Width
Length Anvil Part Number Swage Punch Part Number Flare Punch Part Number
3/32–3/16 TL1410 TL1405 TL1289
7/32–7/16 TL1411 TL1405 TL1289
15/32–11/16 TL1412 TL1405 TL1289
23/32–1 TL1466 TL1405 TL1289

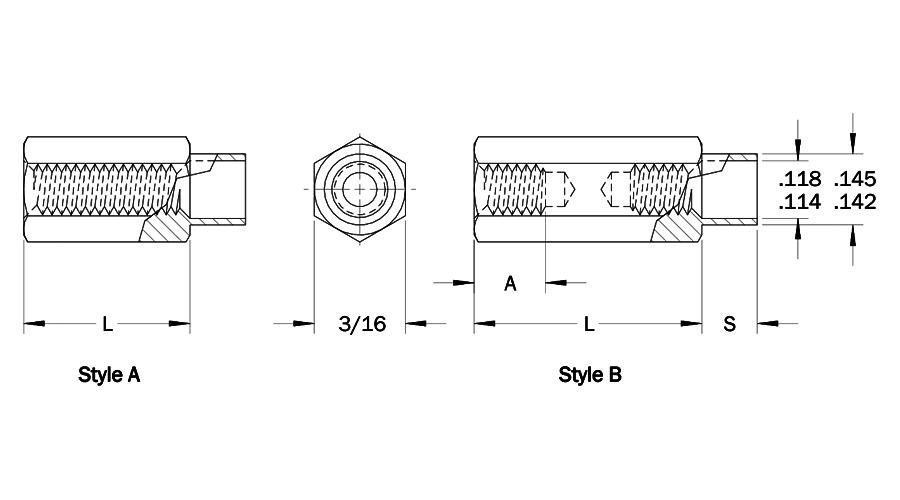

3/16 Width
Length Anvil Part Number Swage Punch Part Number Flare Punch Part Number
3/32–3/16 TL1413 TL1407 TL1289
7/32–7/16 TL1414 TL1407 TL1289
15/32–11/16 TL1415 TL1407 TL1289
23/32–1 TL1416 TL1407 TL1289

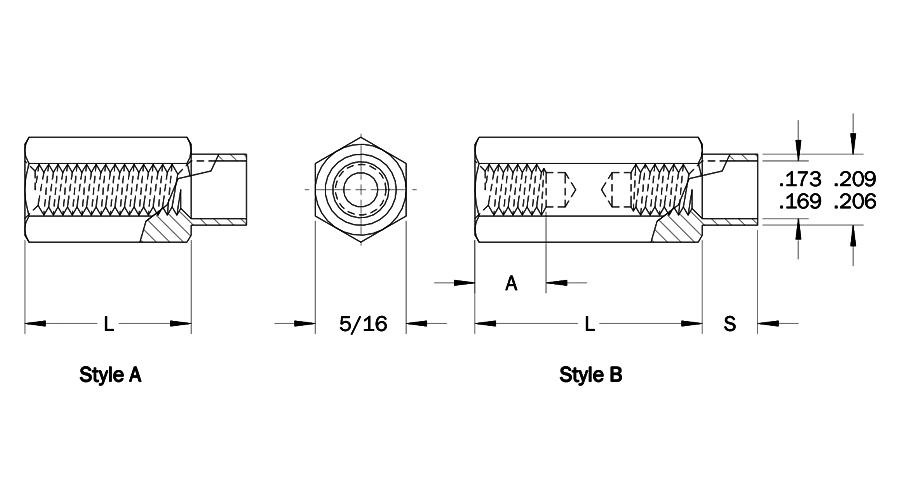

5/16 Width
Length Anvil Part Number Swage Punch Part Number Flare Punch Part Number
3/32–3/16 TL1421 TL1285 TL1289
7/32–7/16 TL1422 TL1285 TL1289
15/32–11/16 TL1423 TL1285 TL1289
23/32–2 TL1424 TL1285 TL1289
