Inch

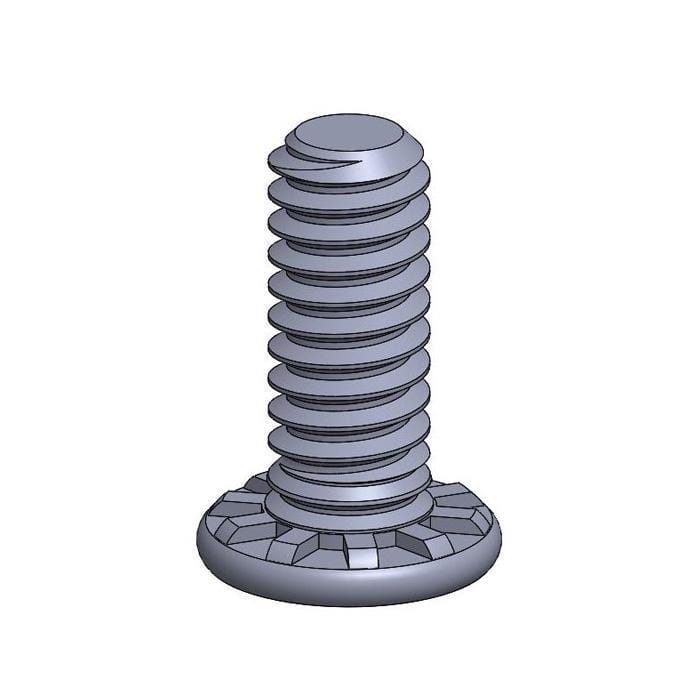

SF High-Strength, Large Head

This product is also available in Metric
Part Desc. MaterialThread In InchesLengthFinish
Thread Thread Code Sheet Thickness MIN Hole Size in Sheet +.005/-.000 H ±.01 S MAX T MAX Hole in Attached Point MAX Dist. Hole C/L to Edge MIN
10 - 32 1032 .040 .190 .357 .102 .048 .280 .360
1/4 - 10 0420 .040 .250 .462 .118 .060 .340 .470
5/16 - 18 0518 .060 .312 .586 .133 .083 .402 .560
(L) Length ±.015
.500 .750 1.00 1.25 1.50 1.75 2.00
