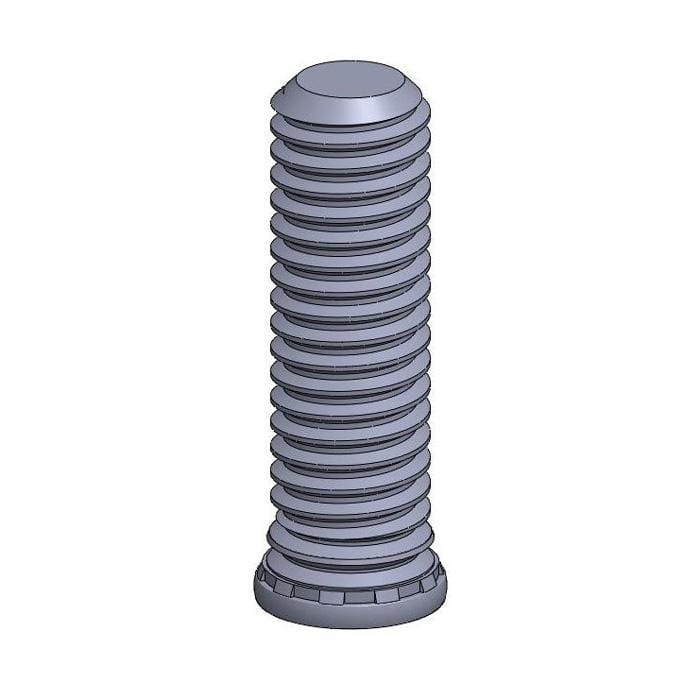

SE Flush, Reduced Head

Inch

Also Available in Metric
Download PDF

Loading Part Numbers

Thread Thread Code Sheet Thickness MIN Hole Size in Sheet +.003/-.000 Hole in Attached Parts MAX H ±.015 S MAX Dist. Hole C/L to Edge MIN
2 - 56 256 .040 .085 .100 .112 .080 .098
4 - 40 440 .040 .111 .125 .138 .085 .124
6 - 32 632 .040 .137 .150 .164 .090 .150
8 - 32 832 .040 .163 .180 .190 .090 .176
10 - 32 1032 .040 .189 .205 .225 .100 .210
(L) Length ±.015
.250 .312 .375 .500 .625 .750 .875 1.00 1.25 1.50
