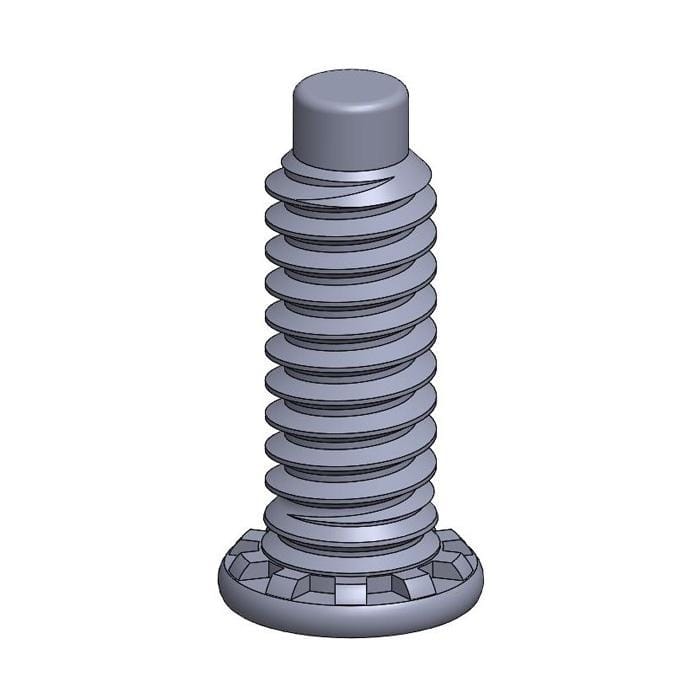

| Thread | Thread Code | Sheet Thickness MIN | Hole Size in Sheet +.0.13/-0.00 | Hole in Attached Parts MAX | H ±0.25 | S MAX | T MAX | C ±0.13 | P ±0.25 | Q Transitional Length to Full Thread NOM | Dist. Hole C/L to Edge MIN |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M5 x 0.8 | M5 | 1.3 | 5 | 6.5 | 7.8 | 2.7 | 1.14 | 3.66 | 1.78 | 2.48 | 10.7 |
| M6 x 1 | M6 | 1.5 | 6 | 7.5 | 9.4 | 2.8 | 1.27 | 4.37 | 2.03 | 3.05 | 11.5 |
| M8 x 1.25 | M8 | 2 | 8 | 9.5 | 12.5 | 3.5 | 1.78 | 6.05 | 2.67 | 3.73 | 12.7 |
| M10 x 1.5 | M10 | 2.3 | 10 | 11.5 | 15.7 | 4.1 | 2.29 | 7.72 | 3.43 | 4.37 | 13.7 |
| (L) Length (mm) ±0.4 | ||||||
|---|---|---|---|---|---|---|
| 15 | 20 | 25 | 30 | 35 | 40 | 50 |
