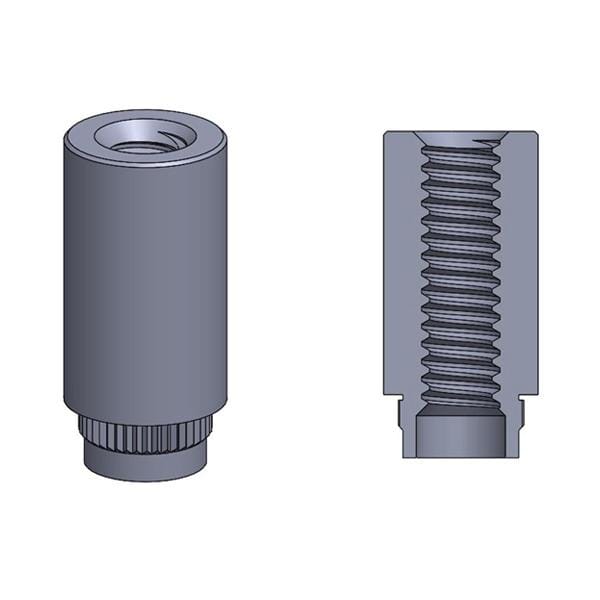

TE Broaching, Swage-In

Metric

Also Available in Inch
Download PDF
Part Desc. Thread In MillimetersLengthMaterialFinish
General
Thread Thread
Code
A MAX Sheet
Thickness
Hole Size in Sheet
+0.13/-0.03
B
±0.08
C MAX E
±0.13
K
±0.08
P
±0.25
Dist. Hole C/L to Edge MIN
M3 x 0.5 M3 2.29 1.27-1.65 4.22 3.23 4.2 5.56 4.55 1 4.33
M4 x 0.7 M4 2.29 1.27-1.65 6.4 5.23 6.33 8.74 6.68 1 6.36
Length
(T) Thread Length (mm) MIN Full 9.5 ± 0.4
(L) Length (mm) ±.005 2 4 6 8 10 12 14 16
