TD Broaching, Thru-Hole

Metric

Also Available in Inch
Download PDF

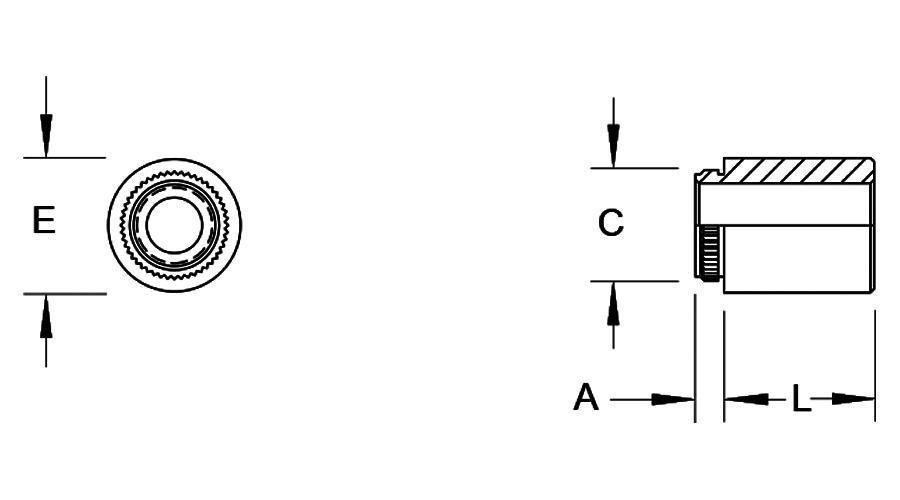

Part Desc. Thru-Hole CodeLengthMaterialFinish
General

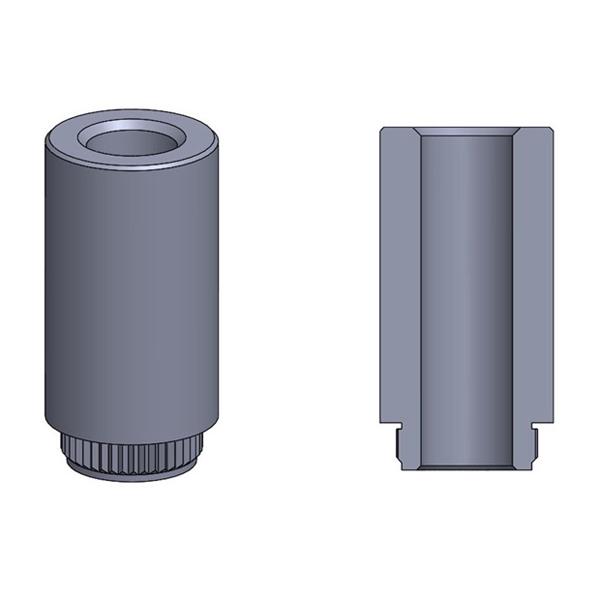

Type TD - Self-clinching Standoff - Thru-Hole
Thru-Hole
Code
+0.10/-0.08
A
MAX
Sheet
Thickness
MIN
Hole Size
in Sheet
+0.08
C
±0.08
E
±0.13
Dist. Hole
C/L to Edge
MIN
3.6 1.53 1.53 5.41 5.87 7.14 5.5
4.2 1.53 1.53 6.4 6.86 8.74 7.1
Length
(L) Length (mm) ±0.13
3 4 6 8 10 12 14 16
