General

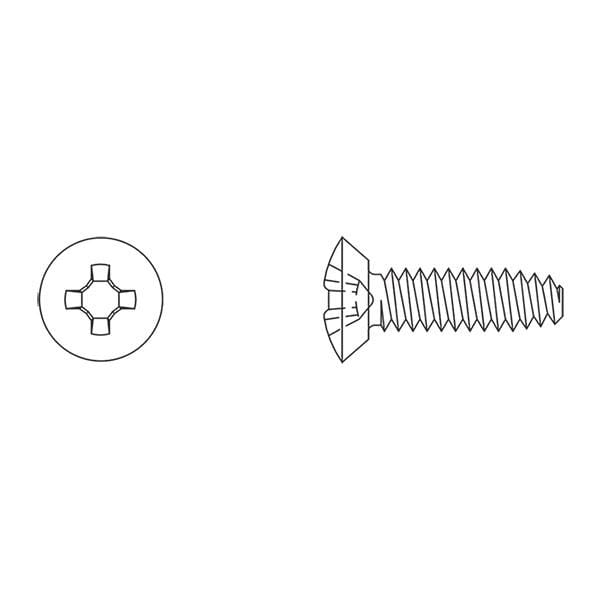

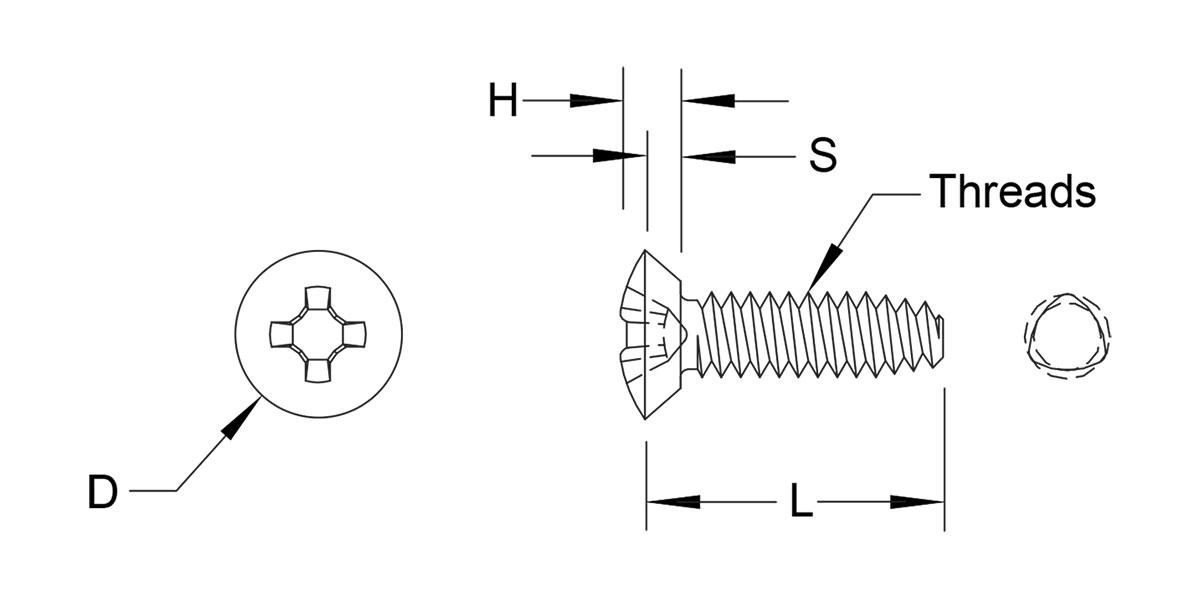

| Thread | H Total Head Height | S Head Side Height REF | D Head Diameter | Drive Size Cross Recess |
|---|---|---|---|---|
| 2 - 56 | .065 / .050 | 0.036 | .167 / .155 | 1 |
| 4 - 40 | .084 / .067 | 0.047 | .219 / .205 | 1 |
| 6 - 32 | .104 / .084 | 0.059 | .270 / .256 | 2 |
| 8 - 32 | .123 / .101 | 0.070 | .322 / .306 | 2 |
| 10 - 32 | .142 / .188 | 0.081 | .373 / .357 | 2 |
| 1/4 - 20 | .186 / .158 | 0.107 | .492 / .473 | 3 |
Material
| Material | Description |
|---|---|
| STL | Low Carbon Steel |
| SS | 18 - 8 Stainless Steel |
Finish
| Finish | Description |
|---|---|
| Z - BLK | Zinc Black |
| Z | Zinc Clear |
Drive
| Drive | Description |
|---|---|
| PH | Cross Recess |
| SL - PH | Slotted - Cross Recess |
Length
| Length | L |
|---|---|
| 3/16 | .187 / .167 |
| 1/4 | .250 / .230 |
| 5/16 | .313 / .293 |
| 3/8 | .375 / .355 |
| 7/16 | .438 / .418 |
| 1/2 | .500 / .480 |
| 9/16 | .563 / .533 |
| 5/8 | .625 / .595 |
| 3/4 | .750 / .720 |
| 7/8 | .875 / .845 |
| 1 | 1.000 / .970 |
| 1.25 | 1.250 / 1.190 |
| 1.5 | 1.500 / 1.440 |
| 1.75 | 1.750 / 1.690 |
| 2 | 2.000 / 1.940 |
