General

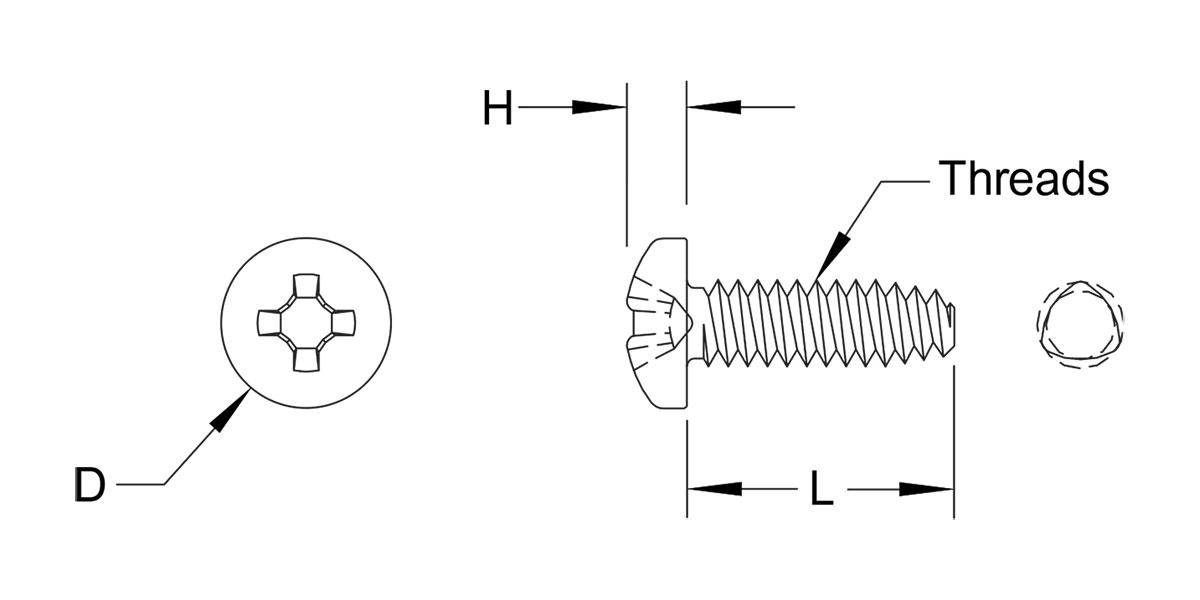

| Thread | H Height | D Head Diameter | Drive Size | |
|---|---|---|---|---|
| Cross Recess | 6 - Lobe | |||
| M2 x 0.4 | 1.6 / 1.4 | 4.0 / 3.7 | 0 | T6 |
| M2.5 x 0.45 | 2.1 / 1.9 | 5.0 / 4.7 | 1 | T8 |
| M3 x 0.5 | 2.4 / 2.2 | 5.6 / 5.3 | 1 | T10 |
| M3.5 x 0.6 | 2.6 / 2.3 | 7.0 / 6.6 | 2 | T15 |
| M4 x 0.7 | 3.1 / 2.8 | 8.0 / 7.6 | 2 | T20 |
| M5 x 0.8 | 3.7 / 3.4 | 9.5 / 9.1 | 2 | T20 |
| M6 x 1 | 4.6 / 4.3 | 12.0 / 11.5 | 3 | T30 |
| M8 x 1.25 | 6.0 / 5.6 | 16.0 / 15.5 | 4 | T40 |
| M10 x 1.5 | 7.5 / 7.1 | 20.0 / 19.4 | 4 | T50 |
Material
| Material | Description |
|---|---|
| STL | Low Carbon Steel |
| SS | 18 - 8 Stainless Steel |
Finish
| Finish | Description |
|---|---|
| Z - BLK | Zinc Black |
| Z | Zinc Clear |
Drive
| Drive | Description |
|---|---|
| PH | Cross Recess |
| TX | 6 - Lobe |
| PZ | Pozi |
Length
| Length | L |
|---|---|
| 4 | 4.0 / 3.2 |
| 5 | 5.0 / 4.2 |
| 6 | 6.0 / 5.2 |
| 8 | 8.0 / 7.2 |
| 10 | 10.0 / 9.2 |
| 12 | 12.0 / 11.2 |
| 16 | 16.0 / 15.2 |
| 20 | 20.0 / 19.2 |
| 25 | 25.0 / 23.8 |
| 30 | 30.0 / 28.8 |
| 35 | 35.0 / 33.8 |
| 40 | 40.0 / 38.8 |
| 45 | 45.0 / 43.5 |
