General

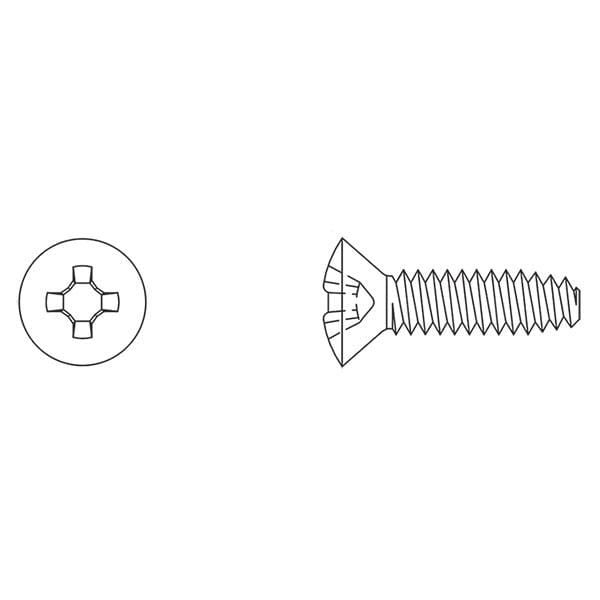

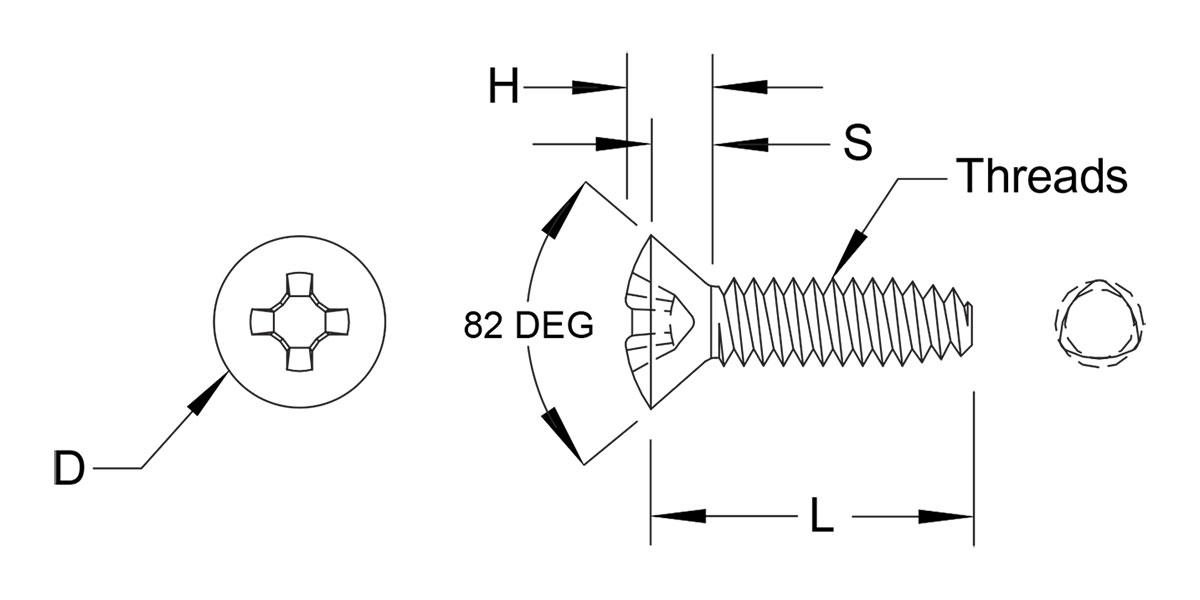

| Thread | H Head Height MAX | D Head Diameter | S Head Side Height MAX / REF | Drive Size Cross Recess |
|---|---|---|---|---|
| M2 x 0.4 | 0.5 | 3.8 / 3.5 | 1.2 | 0 |
| M2.5 x 0.45 | 0.6 | 4.7 / 4.4 | 1.5 | 1 |
| M3 x 0.5 | 0.7 | 5.5 / 5.2 | 1.7 | 1 |
| M3.5 x 0.6 | 0.8 | 7.3 / 6.9 | 2.3 | 2 |
| M4 x 0.7 | 1.0 | 8.4 / 8.0 | 2.7 | 2 |
| M5 x 0.8 | 1.2 | 9.3 / 8.9 | 2.7 | 2 |
| M6 x 1 | 1.4 | 11.3 / 10.9 | 3.3 | 3 |
| M8 x 1.25 | 2.0 | 15.8 / 15.4 | 4.6 | 4 |
| M10 x 1.5 | 2.3 | 18.3 / 17.8 | 5.0 | 4 |
Material
| Material | Description |
|---|---|
| STL | Low Carbon Steel |
| SS | 18 - 8 Stainless Steel |
Finish
| Finish | Description |
|---|---|
| Z - BLK | Zinc Black |
| Z | Zinc Clear |
Drive
| Drive | Description |
|---|---|
| PH | Cross Recess |
| TX | 6 - Lobe |
| PZ | Pozi |
Length
| Length | L |
|---|---|
| 4 | 4.0 / 3.2 |
| 5 | 5.0 / 4.2 |
| 6 | 6.0 / 5.2 |
| 8 | 8.0 / 7.2 |
| 10 | 10.0 / 9.2 |
| 12 | 12.0 / 11.2 |
| 16 | 16.0 / 15.2 |
| 20 | 20.0 / 19.2 |
| 25 | 25.0 / 23.8 |
| 30 | 30.0 / 28.8 |
| 35 | 35.0 / 33.8 |
| 40 | 40.0 / 38.8 |
| 45 | 45.0 / 43.5 |
