General

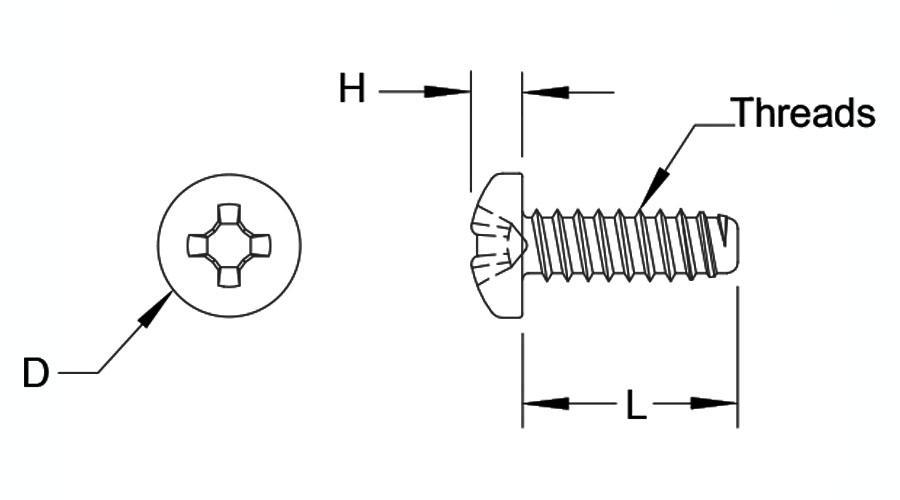

Thread | Thread Code | H Height | D Head Diameter | Drive Size Cross Recess | Drive Size 6 - Lobe |
---|---|---|---|---|---|
2 - 32 | #2 | .062 / .053 | .167 / .155 | 1 | T8 |
4 - 24 | #4 | .080 / .070 | .219 / .205 | 1 | T10 |
6 - 20 | #6 | .097 / .087 | .270 / .256 | 2 | T15 |
8 - 18 | #8 | .115 / .105 | .322 / .306 | 2 | T20 |
10 - 16 | #10 | .133 / .122 | .373 / .357 | 2 | T25 |
1/4 - 14 | 1/4 | .175 / .162 | .492 / .473 | 3 | T30 |
Length
Length | L (Length Code) ±.005 |
---|---|
3/16 | .187 / .167 |
1/4 | .250 / .230 |
5/16 | .313 / .293 |
3/8 | .375 / .355 |
7/16 | .438 / .418 |
1/2 | .500 / .480 |
9/16 | .563 / .533 |
5/8 | .625 / .595 |
3/4 | .750 / .720 |
7/8 | .875 / .845 |
1 | 1.000 / .970 |
1 - 1/4 | 1.250 / 1.190 |
1 - 3/8 | 1.375 / 1.315 |
1 - 1/2 | 1.500 / 1.440 |
1 - 5/8 | 1.625 / 1.565 |
1 - 3/4 | 1.750 / 1.690 |
2 | 2.000 / 1.940 |
