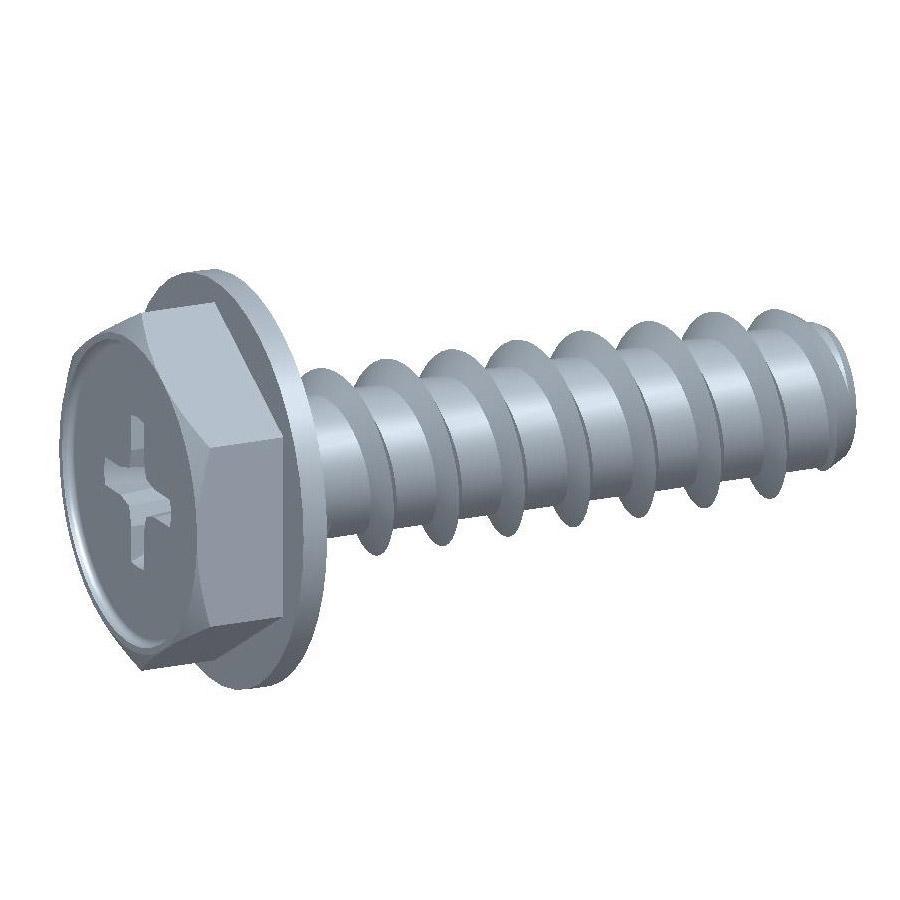

Indented Hex Washer Head Thread Forming Screws for Metal Metric Thread Forming - Type B

Specifications

General

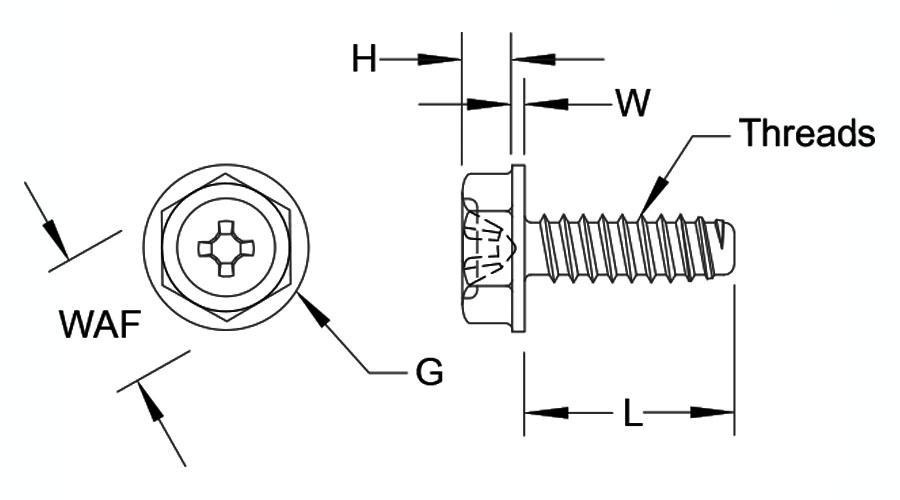

Thread	H Height MAX	G Washer Outside Diameter	W Washer Thickness MIN	WAF Width Across Flats	Drive Size Cross Recess
M2.9 x 1	2.8	6.3 / 5.8	0.4	4.0 / 3.82	0
M3.5 x 1.3	3.4	8.3 / 7.6	0.6	5.5 / 5.32	1
M3.9 x 1.3	3.4	8.3 / 7.6	0.6	5.5 / 5.32	2
M4.2 x 1.4	4.1	8.8 / 8.1	0.8	7.0 / 6.78	2
M4.8 x 1.6	4.3	10.5 / 9.8	0.9	8.0 / 7.78	2
M5.5 x 1.8	5.4	11.0 / 10.0	1.0	8.0 / 7.78	3
M6.3 x 1.8	5.9	13.5 / 12.2	1.0	10.0 / 9.78	3
M8 x 2.1	7.0	18.0 / 16.7	1.2	13.0 / 12.73	4

Length

Length	L (Length Code) ±0.13
4.5	5.5 / 3.7
6.5	7.3 / 5.7
10	10.3 / 8.7
13	13.8 / 12.2
16	16.8 / 15.2
19	19.8 / 18.2
22	22.8 / 21.2
25	25.8 / 24.2
33	33.3 / 30.7
38	39.3 / 36.7
45	46.3 / 43.7
50	51.3 / 48.7
