General

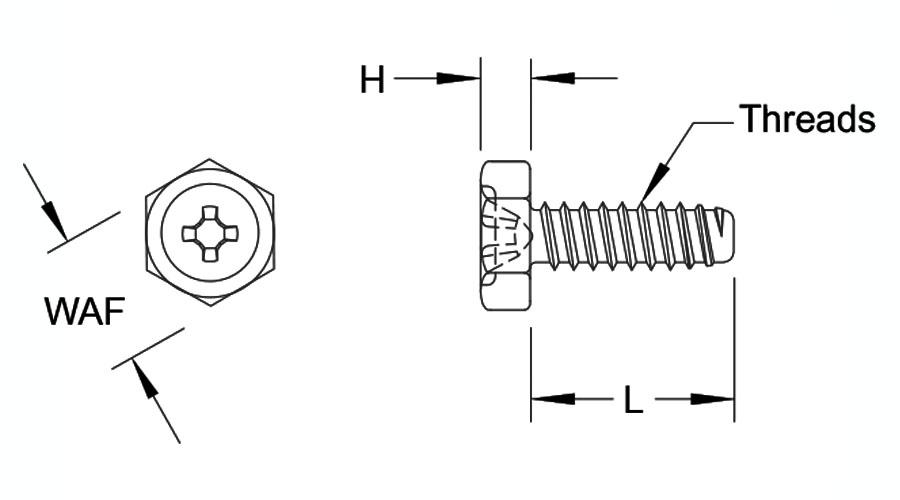

| Thread | H Height |
WAF Width Across Flats |
Drive Size Cross Recess |
|---|---|---|---|
| M2.2 x 0.8 | 1.6 / 1.3 | 3.2 / 3.02 | 0 |
| M2.9 x 1 | 2.3 / 2 | 5.0 / 4.82 | 1 |
| M3.5 x 1.3 | 2.6 / 2.3 | 5.5 / 5.32 | 2 |
| M4.2 x 1.4 | 3.0 / 2.6 | 7.0 / 6.78 | 2 |
| M4.8 x 1.6 | 3.8 / 3.3 | 8.0 / 7.78 | 2 |
| M5.5 x 1.8 | 4.1 / 3.6 | 8.0 / 7.78 | 3 |
| M6.3 x 1.8 | 4.7 / 4.1 | 10.0 / 9.78 | 3 |
| M8 x 2.1 | 6.0 / 5.2 | 13.0 / 12.73 | 4 |
| M9.5 x 2.1 | 7.5 / 6.5 | 16.0 / 15.73 | 4 |
Length
| Length | L (Length Code) ±0.13 |
|---|---|
| 4.5 | 5.5 / 3.7 |
| 6.5 | 7.3 / 5.7 |
| 10 | 10.3 / 8.7 |
| 13 | 13.8 / 12.2 |
| 16 | 16.8 / 15.2 |
| 19 | 19.8 / 18.2 |
| 22 | 22.8 / 21.2 |
| 25 | 25.8 / 24.2 |
| 33 | 33.3 / 30.7 |
| 38 | 39.3 / 36.7 |
| 45 | 46.3 / 43.7 |
| 50 | 51.3 / 48.7 |
