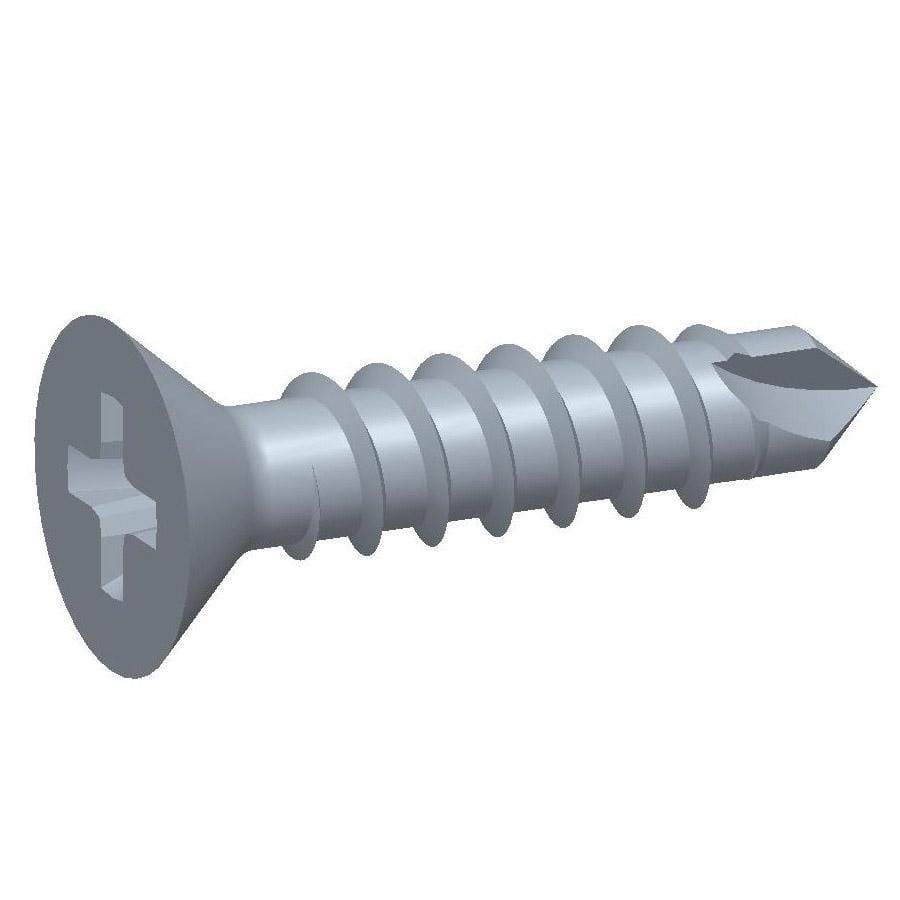

General

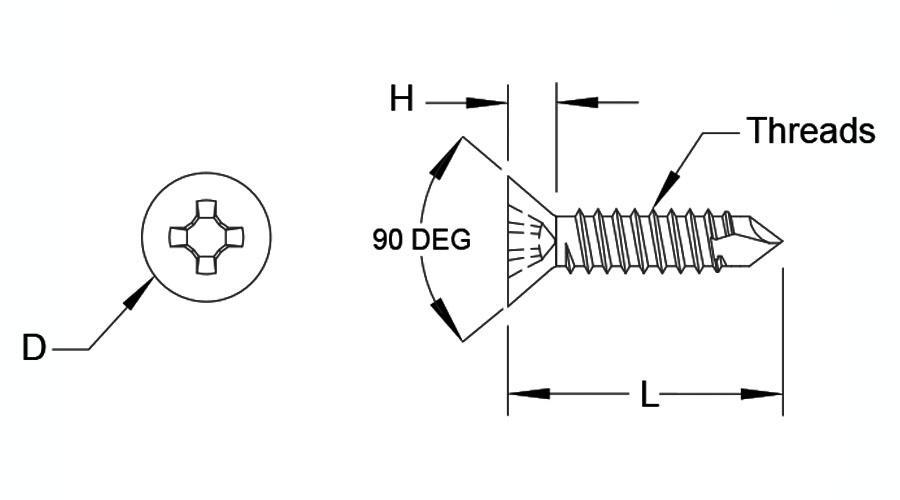

| Thread | H Height MAX |
D Head Diameter |
Drive Sizes Cross Recess * |
Drive Size 6 - Lobe |
|---|---|---|---|---|
| M2.9 x 1.1 | 1.7 | 5.6 / 5.2 | 1 | T6 |
| M3.5 x 1.3 | 2.35 | 7.3 / 6.9 | 2 | T10 |
| M4.2 x 1.4 | 6.2 | 8.4 / 8.0 | 2 | T15 |
| M4.8 x 1.6 | 2.6 | 9.3 / 8.9 | 2 | T20 |
| M5.5 x 1.8 | 3 | 10.3 / 9.9 | 3 | T25 |
| M6.3 x 1.8 | 3.15 | 11.3 / 10.9 | 3 | T30 |
Length
| Length | L (Length Code) ±0.13 |
|---|---|
| 13 | 13.9 / 12.1 |
| 16 | 16.9 / 15.1 |
| 19 | 20 / 18 |
| 22 | 23 / 21 |
| 25 | 26 / 24 |
| 32 | 33.25 / 30.75 |
| 38 | 39.25 / 36.75 |
| 45 | 46.25 / 43.75 |
| 50 | 51.25 / 48.75 |
