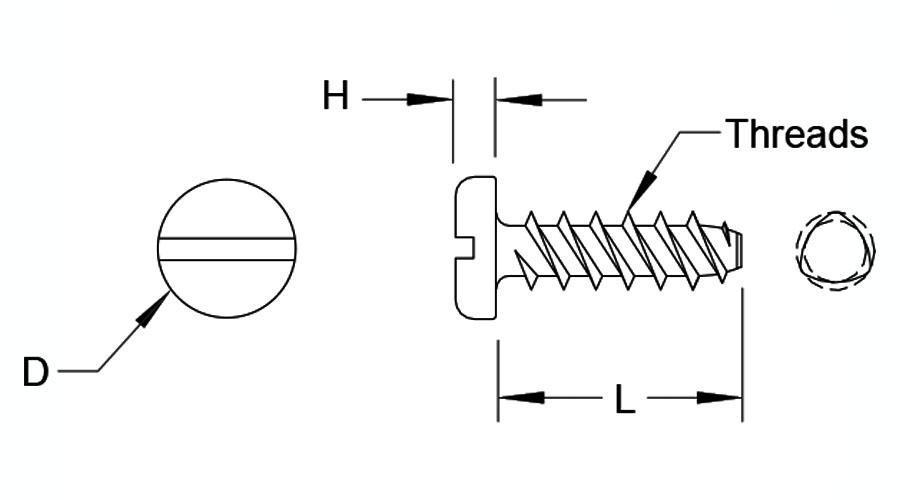

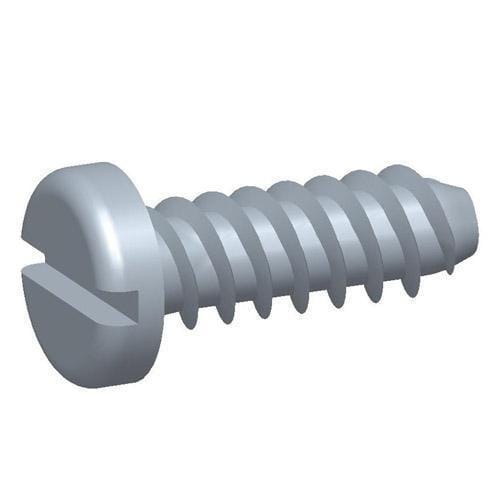

General
| Thread | H Height | D Head Diameter |
|---|---|---|
| M2.2 x 0.8 | 1.3 / 1.1 | 4.0 / 3.7 |
| M2.9 x 1.1 | 1.8 / 1.6 | 5.6 / 5.3 |
| M3.5 x 1.3 | 2.1 / 1.9 | 7.0 / 6.6 |
| M4.2 x 1.4 | 2.4 / 2.2 | 8.0 / 7.6 |
| M4.8 x 1.6 | 3.0 / 2.7 | 9.5 / 9.1 |
| M5.5 x 1.8 | 3.2 / 2.9 | 11.0 / 10.5 |
| M6.3 x 1.8 | 3.6 / 3.3 | 12.0 / 11.5 |
| M8 x 2.1 | 4.8 / 4.5 | 16.0 / 15.5 |
| M9.5 x 2.1 | 6.0 / 5.7 | 20.0 / 19.4 |
Length
| Length | L (Length Code) ±0.13 |
|---|---|
| 8 | 8.0 / 7.2 |
| 10 | 10.0 / 9.2 |
| 12 | 12.0 / 11.2 |
| 14 | 14.0 / 13.2 |
| 16 | 16.0 / 15.2 |
| 20 | 20.0 / 19.2 |
| 25 | 25.0 / 23.8 |
| 30 | 30.0 / 28.8 |
| 35 | 35.0 / 33.8 |
| 40 | 40.0 / 38.8 |
| 45 | 45.0 / 43.5 |
| 50 | 50.0 / 48.5 |
| 60 | 60.0 / 58.5 |
