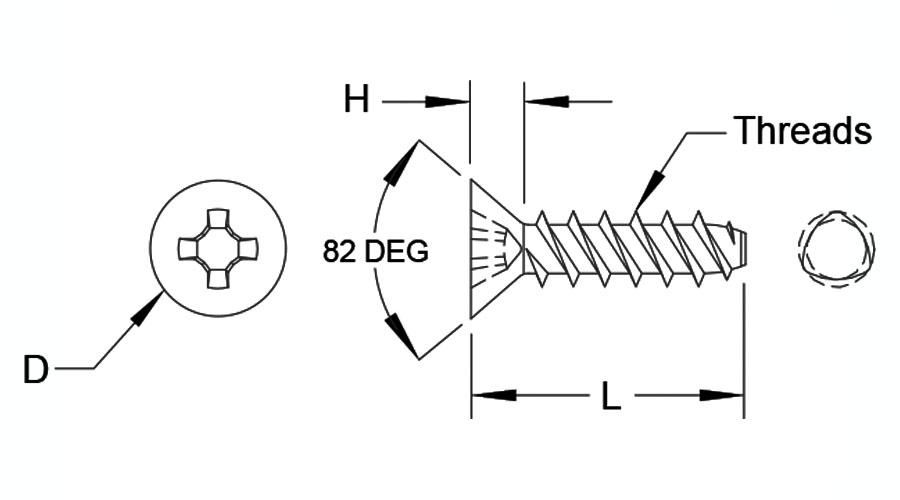

82 Degree Flat Head Thread Forming Screws for Plastic Inch


Download PDF
General
Thread Thread
Code
H
Height
REF
D
Head
Diameter
Drive Size
Cross Recess
2 - 28 #2 .051 .172 / .147 1
4 - 20 #4 .067 .225 / .195 1
6 - 19 #6 .083 .279 / .244 2
8 - 16 #8 .100 .332 / .292 2
10 - 14 #10 .116 .385 / .340 2
1/4 - 10 1/4 .153 .507 / .452 3
Length
Length L
(Length Code)
±.005
3/16 .187 / .167
1/4 .250 / .230
5/16 .313 / .293
3/8 .375 / .355
7/16 .438 / .418
1/2 .500 / .480
9/16 .563 / .533
5/8 .625 / .595
3/4 .750 / .720
7/8 .875 / .845
1 1.000 / .970
1 - 1/4 1.250 / 1.190
1 - 3/8 1.375 / 1.315
1 - 1/2 1.500 / 1.440
1 - 5/8 1.625 / 1.565
1 - 3/4 1.750 / 1.690
1 - 7/8 1.875 / 1.815
2 2.000 / 1.940
