Slotted Pan Head Thread Forming Screws for Plastic Metric Thread Forming - Type HL

Download PDF

Specifications

General

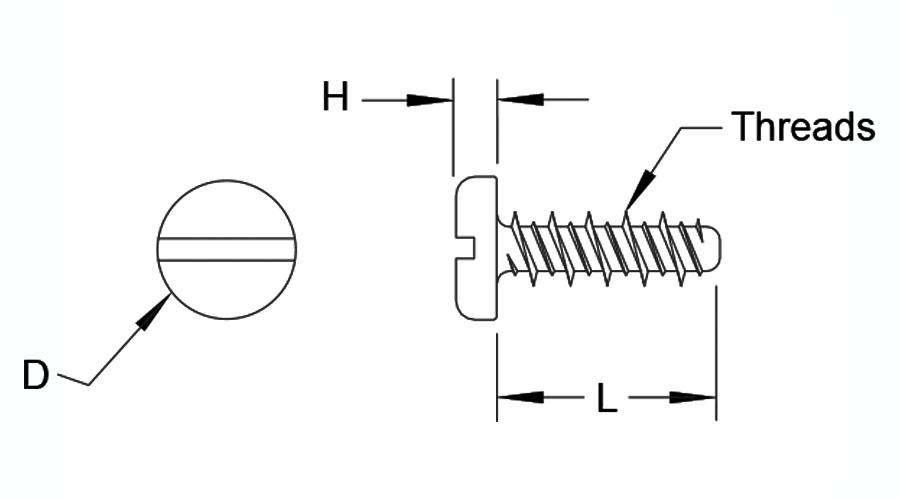

Thread	H Height	D Head Diameter
M3.5 x 1.34	1.91 / 1.65	6.45 / 6.10
M4.0 x 1.34	2.08 / 1.83	6.86 / 6.50
M4.2 x 1.41	2.08 / 1.83	6.86 / 6.50
M4.8 x 1.59	2.44 / 2.16	8.18 / 7.77
M5.3 x 1.59	2.79 / 2.51	9.47 / 9.07
M5.5 x 1.59	2.79 / 2.51	9.47 / 9.07
M6.0 x 1.59	3.18 / 2.84	10.80 / 10.34
M6.3 x 1.69	3.66 / 3.30	12.50 / 12.01
M7.2 x 1.59	3.66 / 3.30	12.50 / 12.01
M7.5 x 1.59	4.52 / 4.11	15.62 / 15.09
M8 x 1.81	4.52 / 4.11	15.62 / 15.09

Length

Length	L (Length Code) ±0.13
8	8.0 / 6.8
10	10.0 / 8.8
12	12.0 / 10.8
14	14.0 / 12.8
16	16.0 / 14.8
20	20.0 / 18.8
25	25.0 / 23.8
30	30.0 / 28.4
35	35.0 / 33.4
40	40.0 / 38.4
45	45.0 / 43.4
50	50.0 / 48.4
60	60.0 / 58.4
