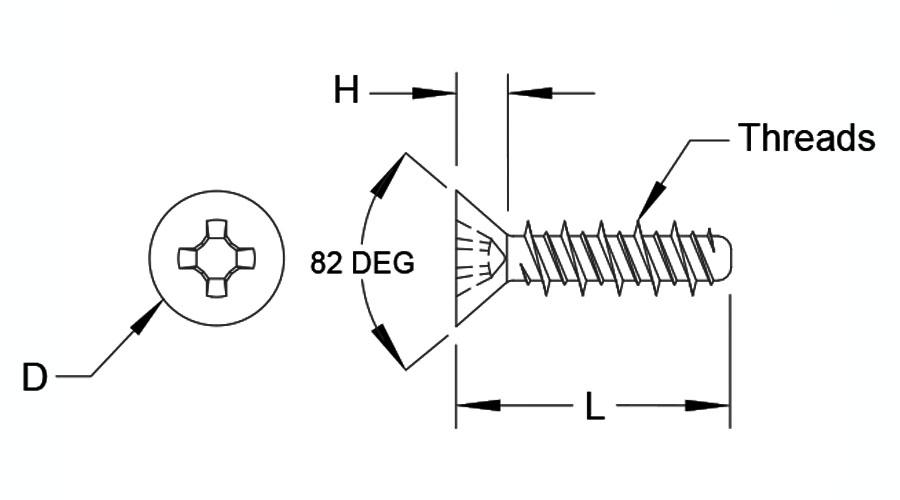

  • 82dfh sfp tf dimension dwg
  • fl hl
  • 82dfh sfp tf dimension dwg

82 Degree Flat Head Thread Forming Screws for Plastic Inch


Download PDF
General
ThreadThread
Code
H
Height
REF
D
Head
Diameter
Drive Size
Cross Recess
2 - 32#2.036 / .028.162 / .1441
4 - 24#4.047 / .038.212 / .1911
6 - 19#6.059 / .048.262 / .2382
8 - 18#8.070 / .058.312 / .2852
10 - 16#10.081 / .068.362 / .3332
12 - 16#12.092 / .078.412 / .3803
1/4 - 151/4.107 / .092.477 / .4423
Length
LengthL
(Length Code)
±.005
3/16.187 / .140
1/4.250 / .203
5/16.313 / .266
3/8.375 / .328
7/16.438 / .391
1/2.500 / .453
9/16.563 / .516
5/8.625 / .578
3/4.750 / .703
7/8.875 / .828
11.000 / .953
1 - 1/41.250 / 1.187
1 - 1/21.500 / 1.437
1 - 3/41.750 / 1.687
22.000 / 1.937
