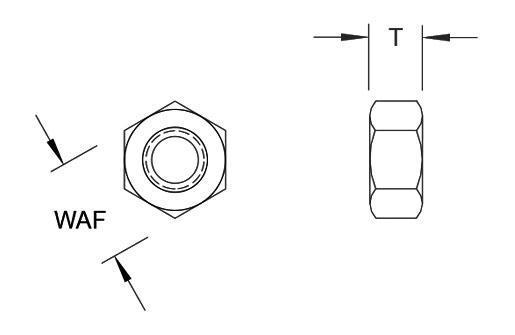

Dimensions
| Thread | T Thickness |
WAF Width Across Flats |
Prevailing-Torque, N-M (in. lb) Classes 5 and 9 | ||
|---|---|---|---|---|---|
| 1st Install. Max |
1st Removal MIN |
5th Removal MIN |
|||
| M3 x 0.5 | 3.10 / 2.65 | 5.50 / 5.32 | 0.43 (3.81) | 0.12 (1.06) | 0.08 (0.71) |
| M4 x 0.7 | 4.00 / 3.50 | 7.00 / 6.78 | 0.90 (7.97) | 0.18 (1.59) | 0.12 (1.06) |
| M5 x 0.8 | 5.30 / 4.80 | 8.00 / 7.78 | 1.6 (14.16) | 0.29 (2.57) | 0.20 (1.77) |
| M6 x 1 | 5.90 / 5.40 | 10.00 / 9.78 | 3.0 (26.55) | 0.45 (3.98) | 0.30 (2.66) |
| M8 x 1.25 | 7.10 / 6.44 | 13.00 / 12.73 | 7.0 (61.96) | 0.85 (7.52) | 0.60 (5.31) |
| M10 x 1.5 | 9.00 / 8.04 | 16.00 / 15.73 | 10.5 (92.93) | 1.5 (13.28) | 1.0 (8.85) |
| M12 x 1.75 | 11.60 / 10.37 | 18.00 / 17.73 | 15.5 (137.18) | 2.3 (20.36) | 1.6 (14.16) |
| M14 x 2 | 13.20 / 12.10 | 21.00 / 20.67 | 24 (212.41) | 3.3 (29.21) | 2.3 (20.36) |
| M16 x 2 | 15.20 / 16.90 | 24.00 / 23.67 | 32 (283.22) | 4.5 (39.83) | 3.0 (26.55) |
| M20 x 2.5 | 19.00 / 16.90 | 30.00 / 29.16 | 54 (477.94) | 7.5 (66.38) | 5.3 (46.91) |
| M24 x 3 | 23.00 / 20.20 | 36.00 / 35.00 | 8.0 (708.05) | 16.5 (101.78) | 8.0 (70.81) |
Material & Finish
| Material Code | Material Description | Finish Code | Finish Description |
|---|---|---|---|
| CL5 | Class 5 Steel | Z | Zinc Clear |
| CL9 | Class 9 Steel | Z | Zinc Clear |
| SS | Stainless Steel | PLN | Plain |
Contact a PENCOM Account Representative for other material & finish options.
