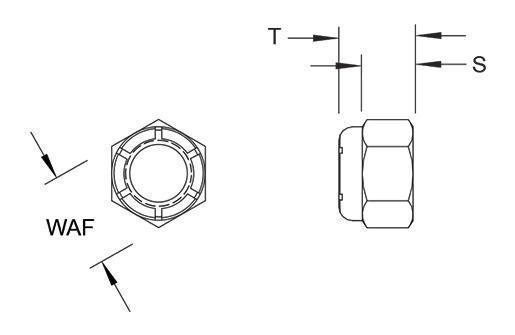

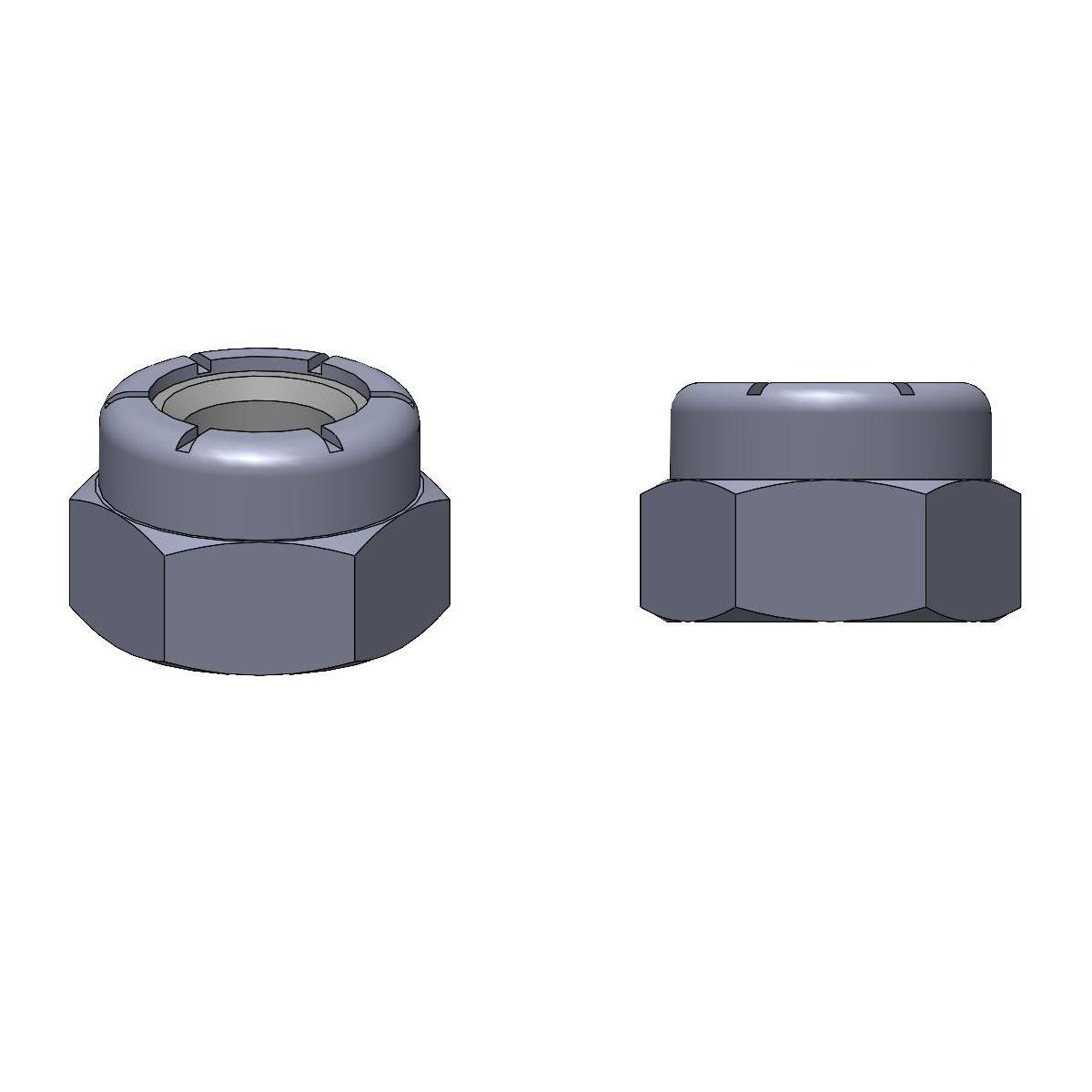

Dimensions
| Thread | T Thickness |
WAF Width Across Flats |
S Wrenching Height MIN |
|---|---|---|---|
| M5 x 0.8 | 7.20 / 6.62 | 8.00 / 7.78 | 3.52 |
| M6 x 1.0 | 8.50 / 7.92 | 10.00 / 9.78 | 3.92 |
| M8 x 1.25 | 10.2 / 9.5 | 13.00 / 12.73 | 5.15 |
| M10 x 1.5 | 12.80 / 12.1 | 16.00 / 15.73 | 6.43 |
| M12 x 1.75 | 16.1 / 15.4 | 18.00 / 17.73 | 8.3 |
| M16 x 2.0 | 20.7 / 19.4 | 24.00 / 23.67 | 11.28 |
| M20 x 2.5 | 25.1 / 23.0 | 30.00 / 29.16 | 13.52 |
| M24 x 3.0 | 29.5 / 27.4 | 36.00 / 35.00 | 16.16 |
| M30 x 3.5 | 35.6 / 33.1 | 46.00 / 45.00 | 19.44 |
| M36 x 4 | 42.6 / 40.1 | 55.0 / 53.8 | 23.52 |
Material & Finish
| Material Code | Material Description | Finish Code | Finish Description |
|---|---|---|---|
| CL9 | Class 9 Steel | Z | Zinc Clear |
Contact a PENCOM Account Representative for other material & finish options.
