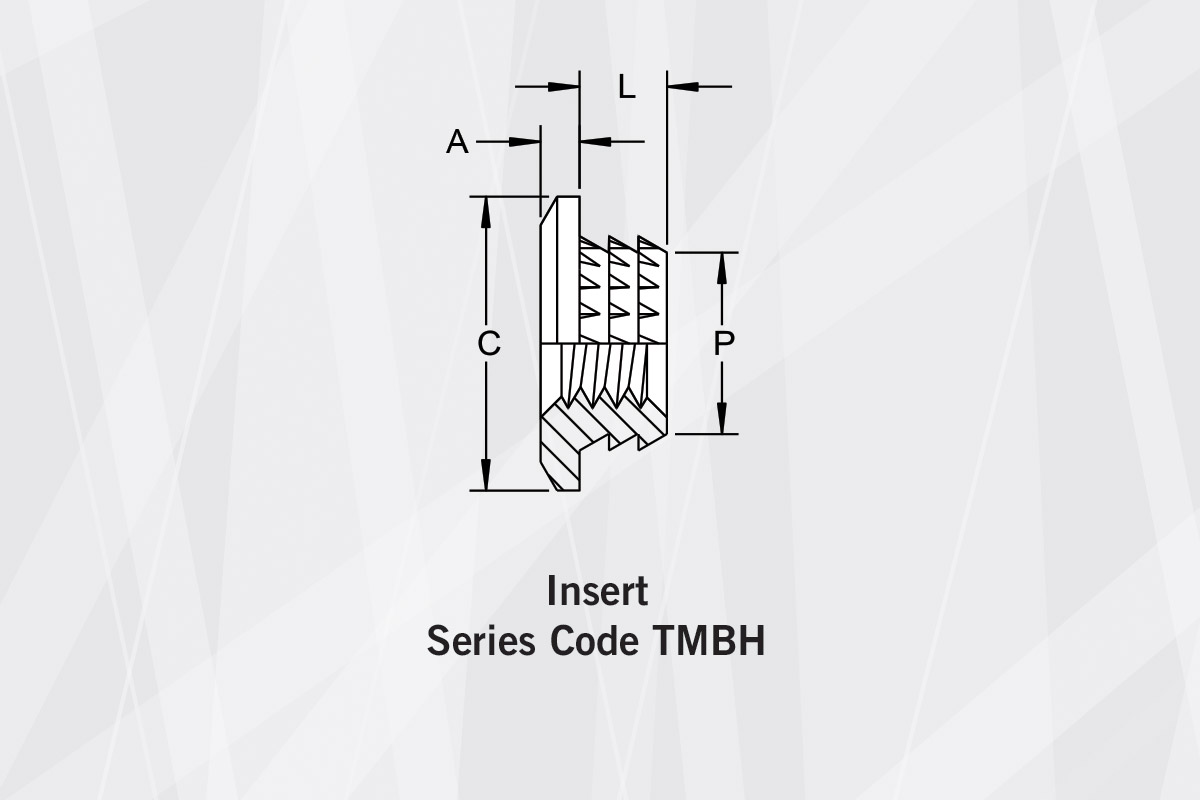

• 2D drawing of TMBH Mini-Barbed Press-In Inserts, small barbed inserts for press-in applications.
  • 2D drawing of TMBH Mini-Barbed Press-In Inserts, small barbed inserts for press-in applications.

TMBH Mini-Barbed Press-In Inserts Metric


Inserts Features

  • Simple press-in installation for thermoplastics, and thermoset plastics with tensile strengths less than 100MPa.
  • Large head and body diameters provide increased bearing surfaces for thin section materials.
  • Well-suited for pull-thru applications.
Download PDF

Loading Parts

Boss Dimensions

Insert ThreadBoss
VYZ
M2 x 0.43.30-3.351.45--
M2.5 x 0.454.15-4.202.00--
M3 x 0.54.66-4.712.00--
M4 x 0.76.13-6.183.200.25-0.35
M5 x 0.87.70-7.753.200.25-0.35
M6 x 19.55-9.603.200.25-0.35
M8 x 1.2511.55-11.604.750.60-0.70
M10 x 1.513.05-13.104.750.60-0.70

Installation

Press the insert into the hole using a squeezing action, not a sharp blow, while maintaining axial alignment to prevent tilting and exerting side loads on the boss. While designed to be cold press-fit, heat may be used to improve performance by increasing plastic flow around the barbs. Heat installation may be required for use in harder plastics. Ultrasonic vibration is not recommended for headed inserts. Drill or mold holes according to the indicated dimensions. Boss dimensions shown are for reference and may vary depending on the type of plastic and application.
