HXZ Molded Hex Inserts Inch Inserts for Plastic

Molded Insert Features

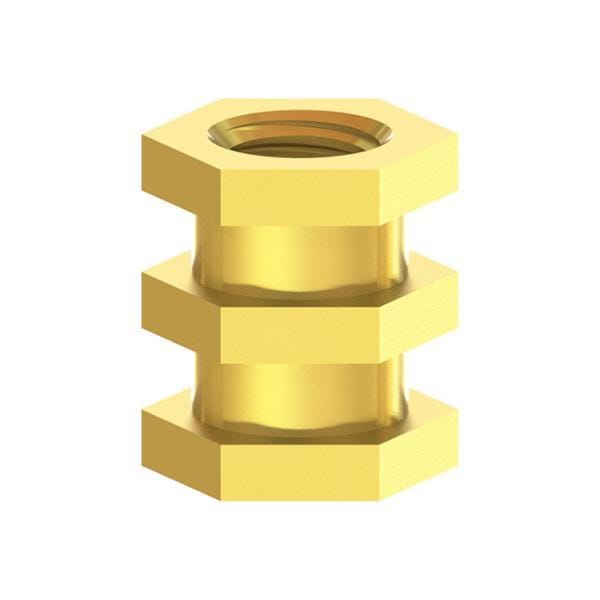

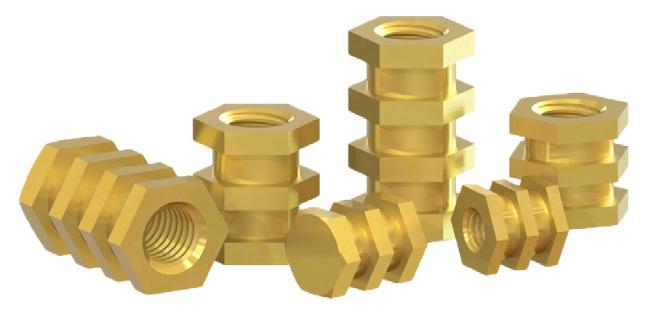

Hex shaped inserts provide high torque-out resistance when molded in soft thermoplastic materials.
An excellent insert for rotational molding applications. Available with blind or thru-hole threads.
Inserts with thru-hole threads are symmetrical and maybe used from either end.
Standard insert material is brass. Other insert materials available by request.

Download PDF

Product List
Specifications

Loading Parts

General - Blind

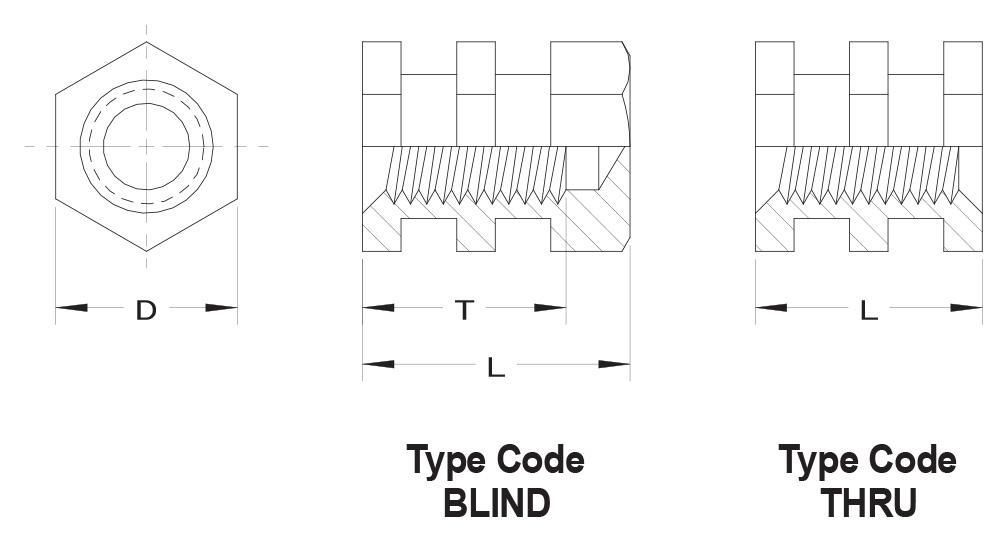

Insert Thread	Insert Thread Code	L Insert Length	Insert Length Code	D Width Across Flats	T Min. Thread Depth	Number of Vanes 1
4-40	440	.315	315	.236	.200	3
6-32	632	.375	375	.250	.219	3
8-32	832	.394	394	.315	.250	3
8-32	832	.394	394	.315	.208	3
10-24	1024	.591	591	.315	.417	4
		.748	748		.583	5
		.394	394		.250	3
10-32	1032	.591	591	.315	.438	4
10-32	1032	.748	748	.315	.563	5
1/4-20	2520	.591	591	.394	.375	4
5/16-18	3118	.630	630	.472	.390	4
3/8-16	3716	.748	748	.551	.438	5
3/8-16	3716	.984	984	.551	.688	5

Vanes may not be of equal width or spacing.
Custom sizes available by request.

General - Thru

Insert Thread	Insert Thread Code	L Insert Length	Insert Length Code	D Width Across Flats	Number of Vanes
4-40	440	.236	236	.236	2
6-32	632	.250	250	.250	2
8-32	832	.315	315	.315	3
10-24	1024	.315	315	.315	3
10-24	1024	.394	394	.315	3
10-32	1032	.315	315	.315	3
10-32	1032	.394	394	.315	3
1/4-20	2520	.394	394	.394	3
1/4-20	2520	.472	472	.394	3
5/16-18	3118	.472	472	.472	3
5/16-18	3118	.630	630	.472	4
3/8-16	3716	.551	551	.551	3
3/8-16	3716	.748	748	.551	4

(1) Custom sizes available by request.
