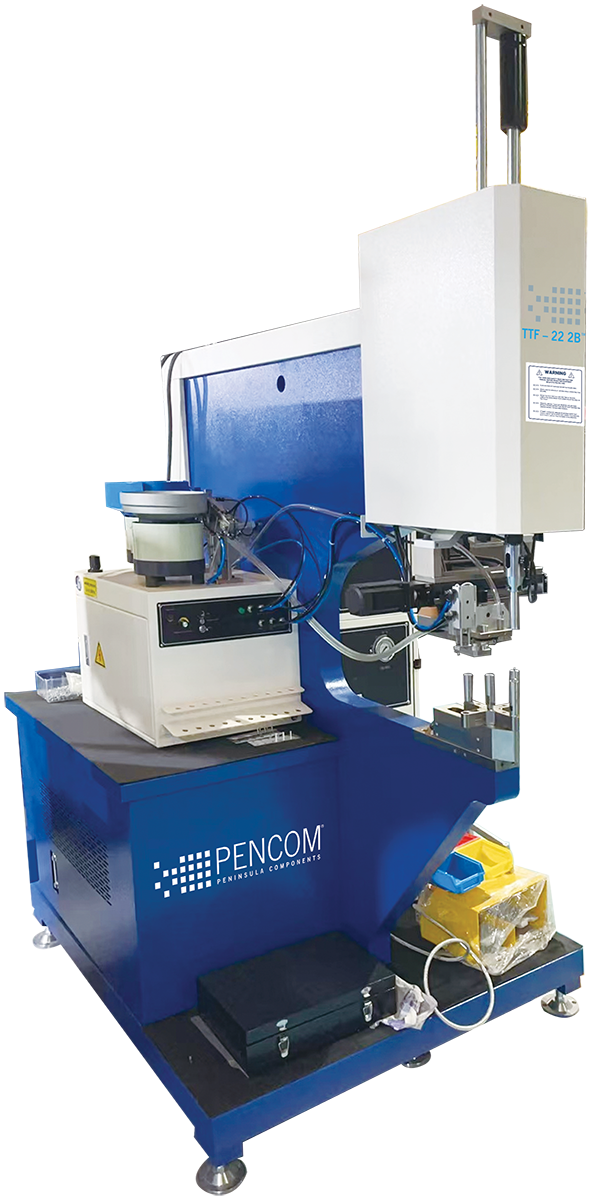

TTF – 22 2B™

Specifications:

  • Force Range: 1349 lbf to 21,806 lbf (6 kN to 97 kN)
  • Throat Depth: 25 in (650 mm)
  • Throat Height: 18 in (450 mm)
  • Stroke Length: 8 in (200 mm)
  • Insertion Capability: Max. 15/32 Nuts, Studs, 15/64 Standoffs (Max. M12 Nuts, M8 Studs, M6 Standoffs)
  • Motor Power: 3.0 kW
  • Pump: Dual Pump
  • Cylinder Speed: 1.18 in/s to 4.72 in/s (30 mm/s to 120 mm/s)
  • Repeatability: ±1% of Force Setting
  • Touch Screen: 10 in (254 mm)
  • Control Panel: Touch Screen
  • Tool Change Method: Manual
  • Force Setting: Programmable
  • Oil Tank Capacity: 18.5 gallons (70 L)
  • Standard Supply Voltage: 380V / 3 Phase / 60 Hz
  • Custom Voltage: 240V / 400V / 415V / 480V
  • Current: 8A
  • Hydraulic Oil: Mobil DTE 10 Excel 46
  • Air Pressure: 58 psi to 87 psi (0.4 MPa to 0.6 MPa)
  • Dimension (L x W x H): 47.2 in x 66.9 in x 92.6 in (1200 mm x 1700 mm x 2350 mm)
  • Weight: 2425 lbs (1100 kg)

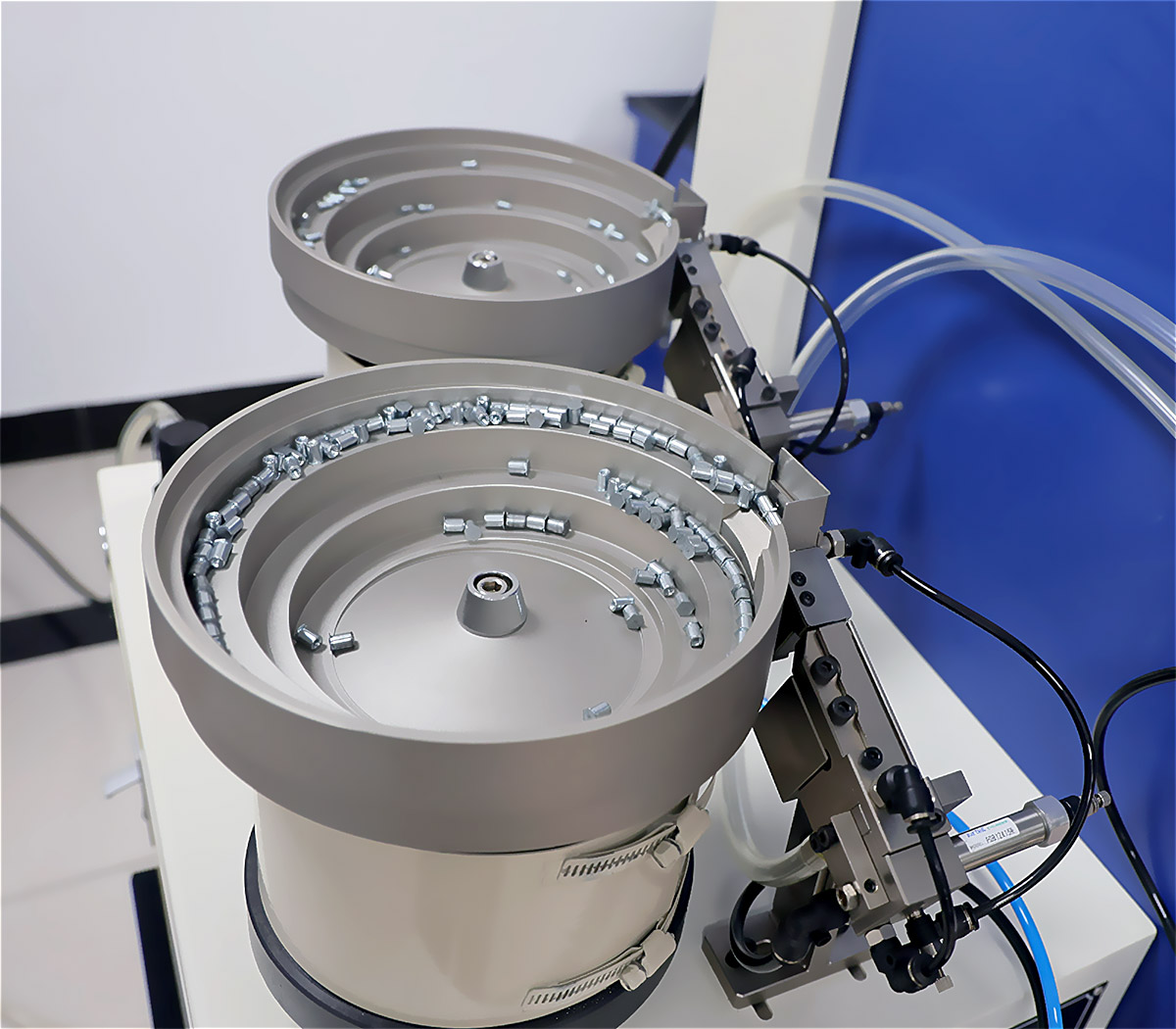

Dual Bowl Feed System Now Available.

Download PDF

Standard Features:

  • Auto Stop: This feature reduces risk and harm to operators. As the press is in motion, it will stop when encountering a foreign object.
  • Positive Stop: This type of adjustable control energizes a solenoid valve to extend or retract the cylinder at the appropriate time. When the extend valve is energized, the cylinder begins to extend and it moves until it hits a stop at the end of its travel. When the solenoid for retraction is energized, the shaft will begin to retract until it hits the stop at the end of its travel. This is an advantage in softer materials such as PCB, plastic, and aluminum.
  • Batch Counter: The batch counter will automatically count the number of installed fasteners in a single application, and features a buzzer to indicate when the total installations are complete.

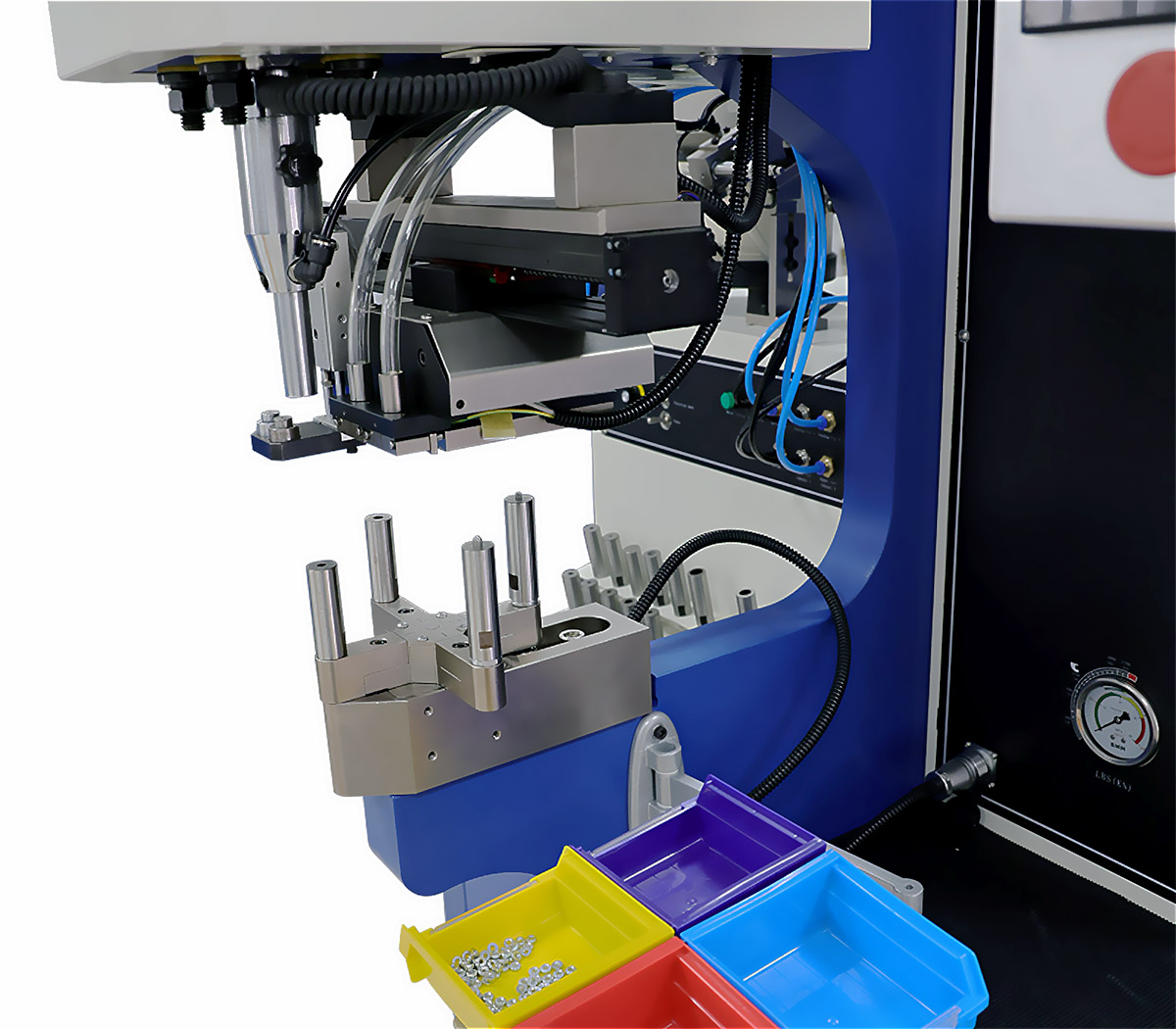

  • Two Upper Stations: With two upper tool libraries and two feeding devices, the system inserts fasteners every 2.5 seconds, changes tools in 3 seconds, and detects fastener and stud/standoff lengths.

Optional Features:

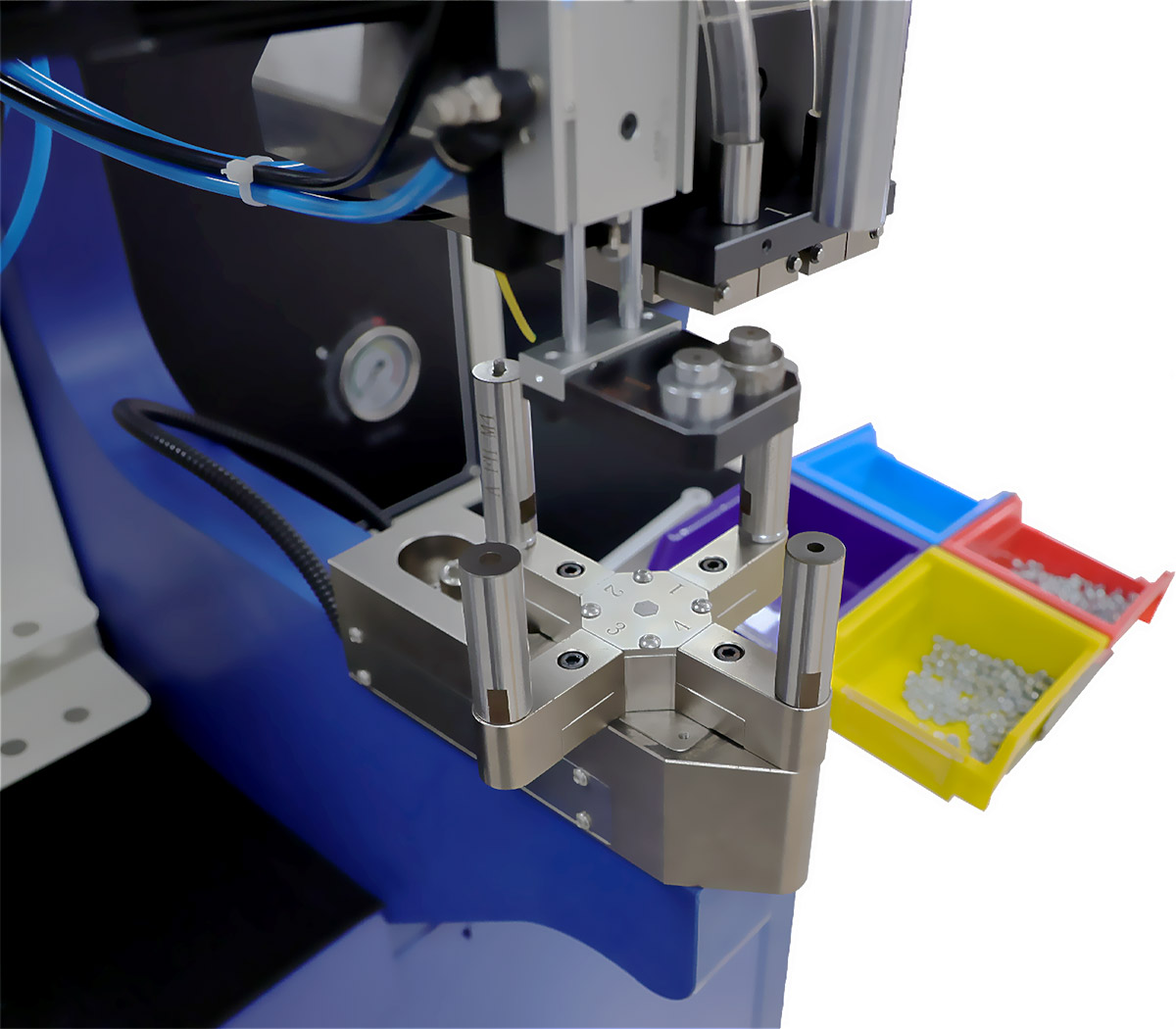

  • Automatic Tooling System (ATS): The ATS system features Shuttle Nut, Shuttle Stud, and Shuttle Standoff Tooling, ensuring precise and efficient fastener insertion with automated tool selection and detection.
