ART Series
Fastener Insertion Technologies™
ART Auto-Feed Rivet Tool
As part of PENCOM’s FIT lineup, the ART Series offers exceptional efficiency with smart, user-friendly features tailored for modern manufacturing. Capable of installing rivets ranging from Φ2.4 to Φ6.0 at impressive speeds of up to 60 pieces per minute, this tool meets the demands of high-volume production without compromising on precision or reliability. Designed to streamline your operations, the ART Series is the ideal solution for fast, accurate, and consistent rivet installation.
- Supports aluminum and stainless steel blind rivets
- Error alarm for insufficient or missing rivets
- Batch counter
- Pressure gauge
- Automation robot I/O connection
- Variable air pressure
Options
- Assist Arm - Allows positioning of rivet tool without being hand-held
- Rivet Gun with an Extended Barrel - For deep or hard to reach locations
- Customized Rivet Gun - Any needle tube length greater than 13mm
- Vacuum Ceiling Mount - For non-magnetic rivet materials
- Gun Body Mount (ART-F Models) - Plate affixed to the machine, allowing secure stowage of the rivet gun
- Fixed Table (ART-F Models) - Table mounted insertion tool. The foot-operated rivet gun is mounted beneath the table and installs upwards into the material.
Single Rivet Gun
| Model | Weight | Working Speed | Rivet Capacity | Capacity | Air Pressure | Dimensions |
|---|---|---|---|---|---|---|
| ART-2.4H | 99lbs (45kg) | 60pcs/min | 3/32in (Φ2.4) | 5000 pcs | 85-114 psi (6-8 bar) | 17.3x13.8x16.5in (440x350x420mm) |
| ART-3.2H | 99lbs (45kg) | 60pcs/min | 1/8in (Φ3.2) | 3000 pcs | 85-114 psi (6-8 bar) | 17.3x13.8x16.5in (440x350x420mm) |
| ART-4.0H | 99lbs (45kg) | 60pcs/min | 5/32in (Φ4.0) | 2500 pcs | 85-114 psi (6-8 bar) | 17.3x13.8x16.5in (440x350x420mm) |
| ART-5.0H | 99lbs (45kg) | 60pcs/min | 6/31in (Φ4.8) | 1500 pcs | 85-114 psi (6-8 bar) | 17.3x13.8x16.5in (440x350x420mm) |
| ART-6.4H | 99lbs (45kg) | 60pcs/min | 1/4in (Φ6.0) | 1000 pcs | 85-114 psi (6-8 bar) | 17.3x13.8x16.5in (440x350x420mm) |

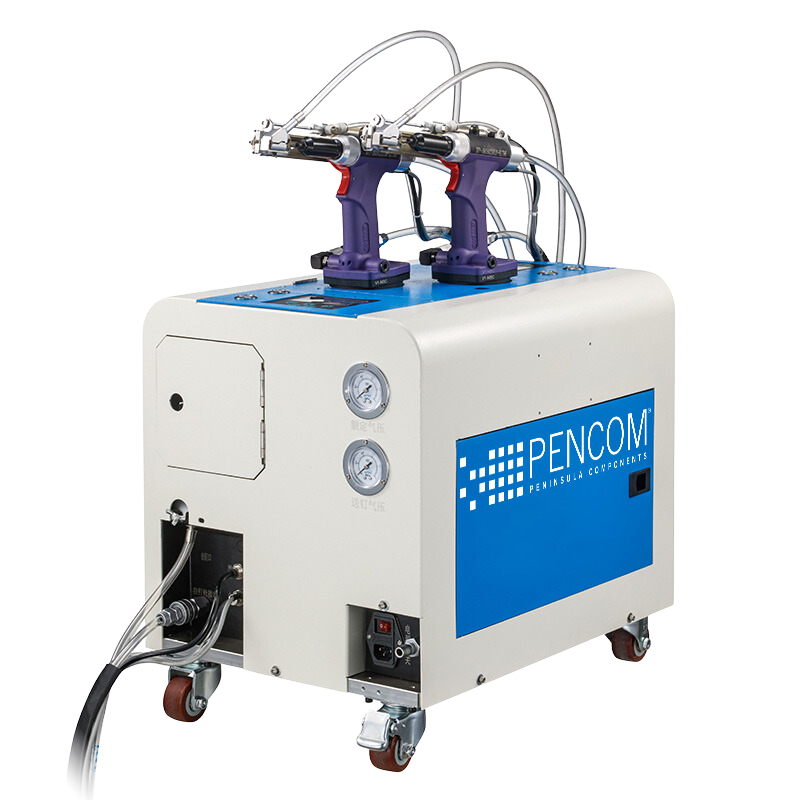

Dual Rivet Gun
| Model | Weight | Working Speed | Rivet Capacity | Capacity | Air Pressure | Dimensions |
|---|---|---|---|---|---|---|
| ART-2.4Q2 | 130lbs (59kg) | 60pcs/min | 3/32in (Φ2.4) | 5000 pcs | 85-114 psi (6-8 bar) | 20.0x15.4x18.9in (510x390x480mm) |
| ART-3.2Q2 | 130lbs (59kg) | 60pcs/min | 1/8in (Φ3.2) | 3000 pcs | 85-114 psi (6-8 bar) | 20.0x15.4x18.9in (510x390x480mm) |
| ART-4.0Q2 | 130lbs (59kg) | 60pcs/min | 5/32in (Φ4.0) | 2500 pcs | 85-114 psi (6-8 bar) | 20.0x15.4x18.9in (510x390x480mm) |
Foot Pedal
| Model | Weight | Working Speed | Rivet Capacity | Capacity | Air Pressure | Dimensions |
|---|---|---|---|---|---|---|
| ART-2.4F | 99lbs (45kg) | 60pcs/min | 3/32in (Φ2.4) | 5000 pcs | 85-114 psi (6-8 bar) | 17.3x13.8x16.5in (440x350x420mm) |
| ART-3.2F | 99lbs (45kg) | 60pcs/min | 1/8in (Φ3.2) | 3000 pcs | 85-114 psi (6-8 bar) | 17.3x13.8x16.5in (440x350x420mm) |
| ART-4.0F | 99lbs (45kg) | 60pcs/min | 5/32in (Φ4.0) | 2500 pcs | 85-114 psi (6-8 bar) | 17.3x13.8x16.5in (440x350x420mm) |
